TAIL LIGHT

WIRING HARNESS (MODEL M) FOR SUZUKI AUTRES-MODELES 50 1991

WIRING HARNESS (MODEL T)

Item numbers

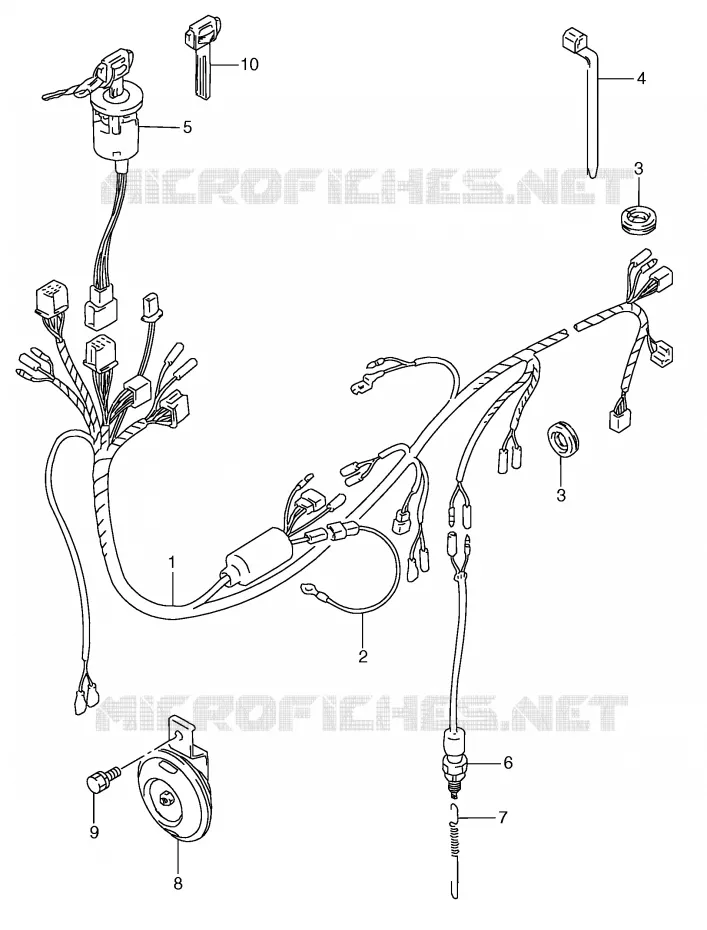

WIRING HARNESS (MODEL M) Suzuki SCOOTER 50 Autres-modeles 1991 RC50M(E1)
1
2
3
3
4
4
5
6
7
8
9
10
10
10
10
1
HARNESS, WIRING

36610-16DH4-000   3661016DH4000

3661016DH4000
Not available
2
WIRE, BATTERY MINUS

33860-16D00-000   3386016D00000

3386016D00000
Not available
3
GROMMET

09308-10015-000   0930810015000

0930810015000
Not available
4
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

4
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

5
SWITCH ASSY, IGNITION

37110-16D00-000   3711016D00000

3711016D00000
Not available
6
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-04A10-000   3774004A10000

3774004A10000

Unit Price

7
SPRING

09443-06083-000   0944306083000

0944306083000
Not available
8
HORN ASSY

38500-16D01-000   3850016D01000

3850016D01000
Not available
9
BOLT

01570-06123-000  

01570-0612A-000
 0157006123000

Unit Price

10
KEY, BLANK(TYPE:C)
KEY, BLANK TYPE C (A51)

37146-03A00-000   3714603A00000

3714603A00000

Unit Price

10
KEY, BLANK(TYPE:D)
KEY, BLANK TYPE D (A52)

37146-03A10-000   3714603A10000

3714603A10000

Unit Price

10
KEY, BLANK(TYPE:E)
KEY, BLANK TYPE E (A53)

37146-03A20-000   3714603A20000

3714603A20000

Unit Price

10
KEY, BLANK(TYPE:F)
KEY, BLANK TYPE F (A54)

37146-03A30-000   3714603A30000

3714603A30000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL M) of your Suzuki of Autres-modeles. Let us know if you have any questions.

Genuine parts for Suzuki 50 Autres-modeles 1991
