HANDLEBAR (MODEL M) REFER TO FIG.31A(F-3) FOR MODEL T

HANDLEBAR (MODEL T) FOR SUZUKI AUTRES-MODELES 50 1991

REAR BRAKE

Item numbers

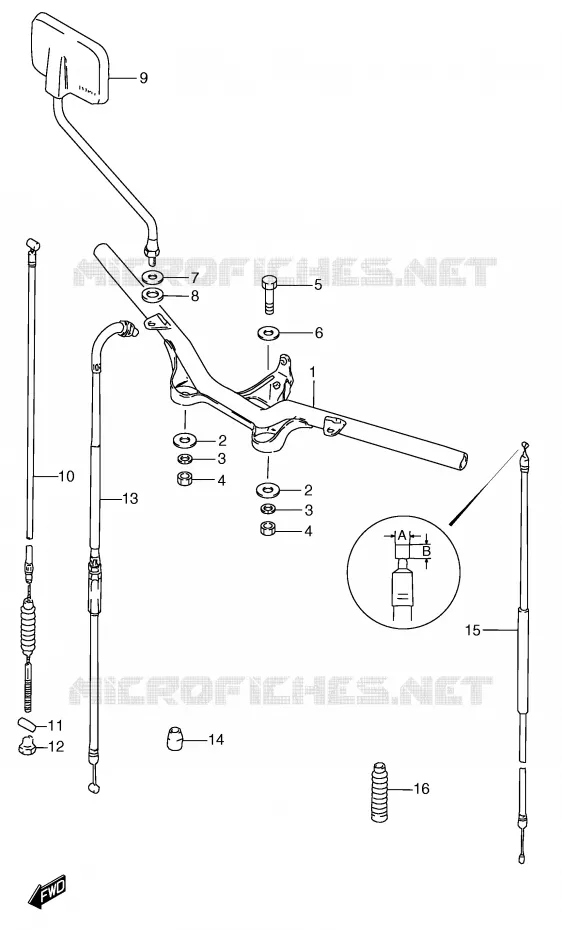

HANDLEBAR (MODEL T) Suzuki SCOOTER 50 Autres-modeles 1991 RC50M(E1)
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
HANDLEBAR

56110-16D00-000   5611016D00000

5611016D00000
Not available
2
WASHER

09160-06042-000   0916006042000

0916006042000
Not available
3
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

4
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

5
BOLT

01550-08303-000  

01550-0830B-000
 0155008303000

Unit Price

6
WASHER

09160-08093-000   0916008093000

0916008093000
Not available
7
WASHER<br />WASHER, REAR VIEW
WASHER
WASHER, REAR VIEW

08322-01107-000   0832201107000

0832201107000

Unit Price

8
WASHER, REAR CIEW

09161-15003-000   0916115003000

0916115003000
Not available
9
MIRROR, REAR VIEW (BLACK)

56500-35060-291   5650035060291

5650035060291
Not available
10
CABLE, FRONT BRAKE

58110-16D10-000   5811016D10000

5811016D10000
Not available
11
BRAKE ROD LEVER PIN
PIN

09209-10001-000   0920910001000

0920910001000

Unit Price

12
BRAKE ROD ADJ NUT
NUT

09150-05101-000   0915005101000

0915005101000

Unit Price

13
CABLE, THROTTLE

58300-16D10-000   5830016D10000

5830016D10000
Not available
14
DISCONTINUE<br />SEAL, DUST
DISCONTINUE
SEAL, DUST

09287-07002-000  

0928707002000
Not available
15
CABLE, STARTER

58410-16D10-000   5841016D10000

5841016D10000
Not available
16
SEAL, DUST

58333-35400-000   5833335400000

5833335400000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR (MODEL T) of your Suzuki of Autres-modeles. Let us know if you have any questions.
