CYLINDER FOR SUZUKI AUTRES-MODELES 50 1991

CRANKCASE

Item numbers

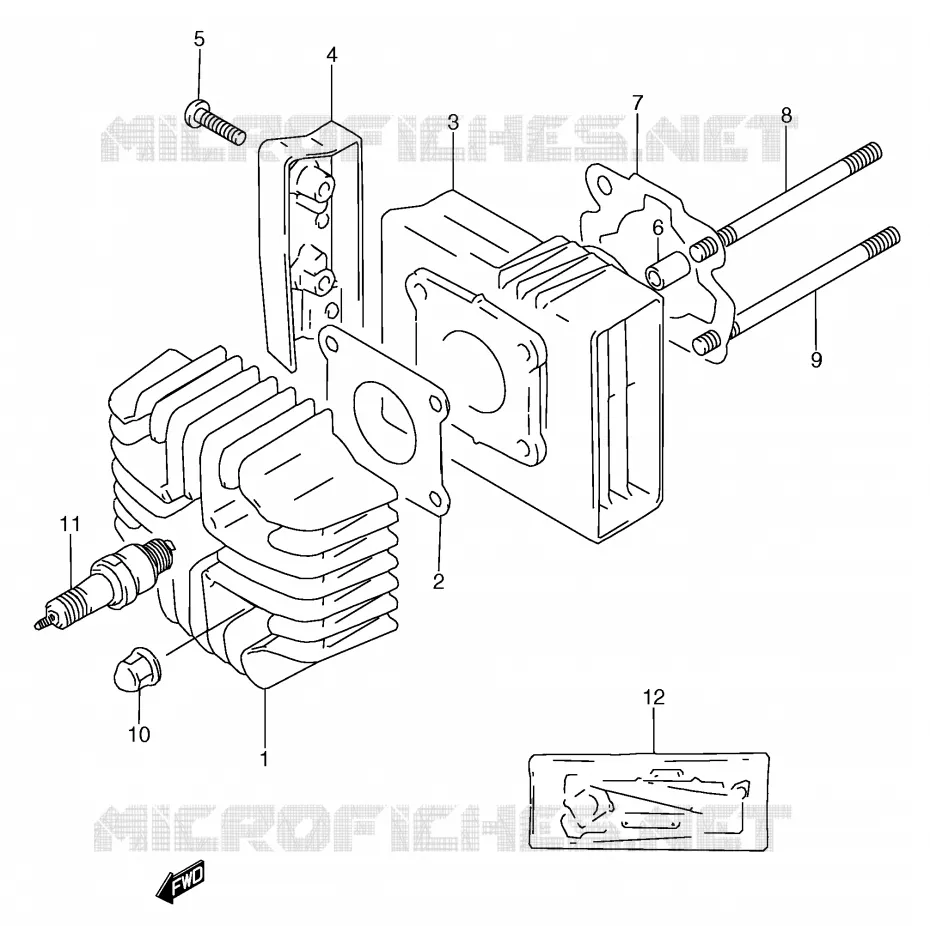

CYLINDER Suzuki SCOOTER 50 Autres-modeles 1991 RC50M(E1)
1
2
3
4
5
6
7
8
9
10
11
11
12
1
HEAD, CYLINDER

11111-16D00-000   1111116D00000

1111116D00000
Not available
2
GASKET, CYLINDER HEAD

11141-16D00-000   1114116D00000

1114116D00000
Not available
3
CYLINDER

11210-16D00-0F0   1121016D000F0

1121016D000F0
Not available
4
COVER, CYLINDER AIR

11271-16D00-000   1127116D00000

1127116D00000
Not available
5
SCREW

02112-06253-000  

02112-0625A-000
 0211206253000

Unit Price

6
DOWEL PIN<br />KNOCK PIN
DOWEL PIN
KNOCK PIN

04211-11189-000   0421111189000

0421111189000

Unit Price

7
GASKET, CYLINDER

11241-16D00-000   1124116D00000

1124116D00000
Not available
8
STUD BOLT

01421-08858-000   0142108858000

0142108858000
Not available
9
STUD BOLT

01421-08958-000   0142108958000

0142108958000
Not available
10
NUT
NUT

09159-08074-000   0915908074000

0915908074000

Unit Price

11
PLUG, SPARK(BPR6HS)
SPARK PLUG (NGK, BPR6HS)

09482-00141-000  

0948200141000
Not available
12
GASKET SET

11400-16870-000   1140016870000

1140016870000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER of your Suzuki of Autres-modeles. Let us know if you have any questions.

Genuine parts for Suzuki 50 Autres-modeles 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 Autres-modeles 1991

Select your Suzuki 1991 model

50 Autres-modeles 1991 RC50M(E1)

Suzuki Autres-modeles

Displacement: 50 cc
Year: 1991
Model code RC50M(E1)
