Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI AUTRES-MODELES 50 1991

GEAR SHIFTING ASSY

Item numbers

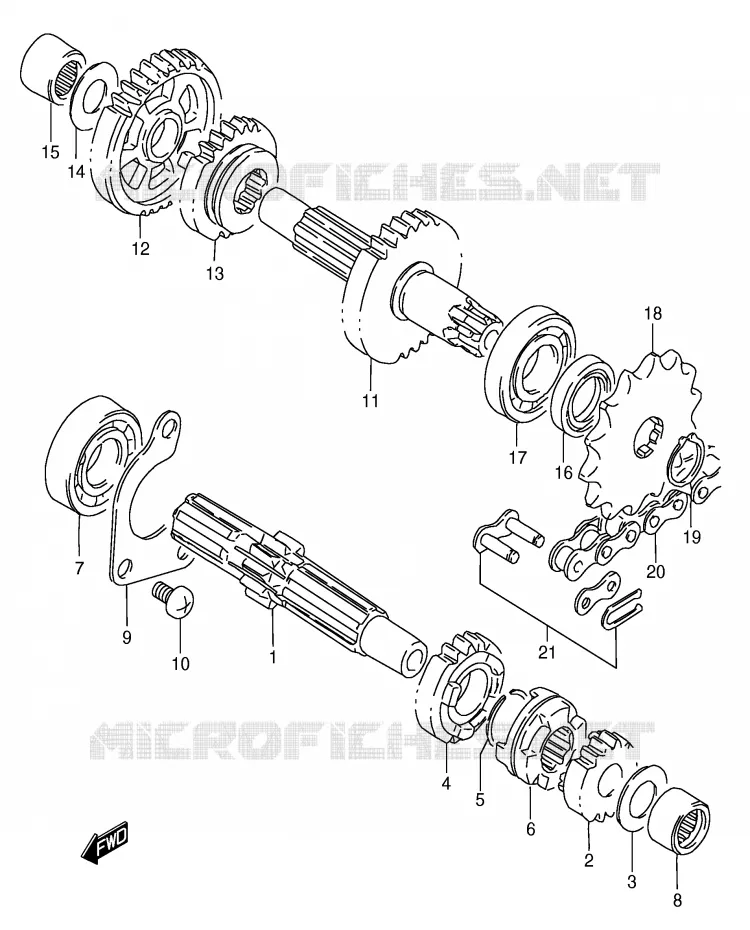

TRANSMISSION Suzuki SCOOTER 50 Autres-modeles 1991 RC50M(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
SHAFT, COUNTER (NT:10)

24121-35406-000   2412135406000

2412135406000
Not available
2
GEAR, 2ND DRIVE (NT:15)

24221-16D00-000   2422116D00000

2422116D00000
Not available
3
WASHER (13X24X1)

09160-13006-000   0916013006000

0916013006000

Unit Price

4
GEAR, 3RD DRIVE (NT:18)

24231-16D00-000   2423116D00000

2423116D00000
Not available
5
CIRCLIP

09380-17007-000   0938017007000

0938017007000

Unit Price

6
WHEEL, SLIDING DOG

24421-02A01-000   2442102A01000

2442102A01000
Not available
7
BALL BEARING<br />BEARING
BALL BEARING
BEARING

08110-62030-000   0811062030000

0811062030000

Unit Price

8
BEARING(13X19X12)

09263-13001-000  

09263-13002-000
 0926313001000

Unit Price

9
RETAINER, COUNTER SHAFT BEARING

24741-35400-000   2474135400000

2474135400000
Not available
10
SCREW

02112-06103-000  

02112-0610B-000
 0211206103000

Unit Price

11
SHAFT, DRIVE (NT:31)

24130-16D00-000   2413016D00000

2413016D00000
Not available
12
GEAR, 1ST DRIVEN (NT:35)

24310-16D00-000   2431016D00000

2431016D00000
Not available
13
GEAR, 3RD DRIVEN (NT:25)

24331-16D00-000   2433116D00000

2433116D00000
Not available
14
WASHER (13X24X1)

09160-13006-000   0916013006000

0916013006000

Unit Price

15
BEARING(13X19X12)

09263-13001-000  

09263-13002-000
 0926313001000

Unit Price

16
OIL SEAL

09283-17014-000   0928317014000

0928317014000
Not available
17
BALL BEARING<br />BEARING
BALL BEARING
BEARING

08110-62030-000   0811062030000

0811062030000

Unit Price

18
SPROCKET, ENGINE (NT:13)

27511-46000-000   2751146000000

2751146000000

Unit Price

19
08331-31169
CIRCLIP

08331-31166-000  

0833131166000
Not available
20
27600-20911-112
DISCONTINUED

27600-20910-108   2760020910108

2760020910108
Not available
21
JOINT SET(DID428)

27620-20910-000  

27620-20911-000
 2762020910000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of Autres-modeles. Let us know if you have any questions.

Genuine parts for Suzuki 50 Autres-modeles 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 Autres-modeles 1991

Select your Suzuki 1991 model

50 Autres-modeles 1991 RC50M(E1)

Suzuki Autres-modeles

Displacement: 50 cc
Year: 1991
Model code RC50M(E1)
