HEADLIGHT (GSX500EE / EF) REFER TO FIG26 (F-3) FOR GSX500ESE/ESF

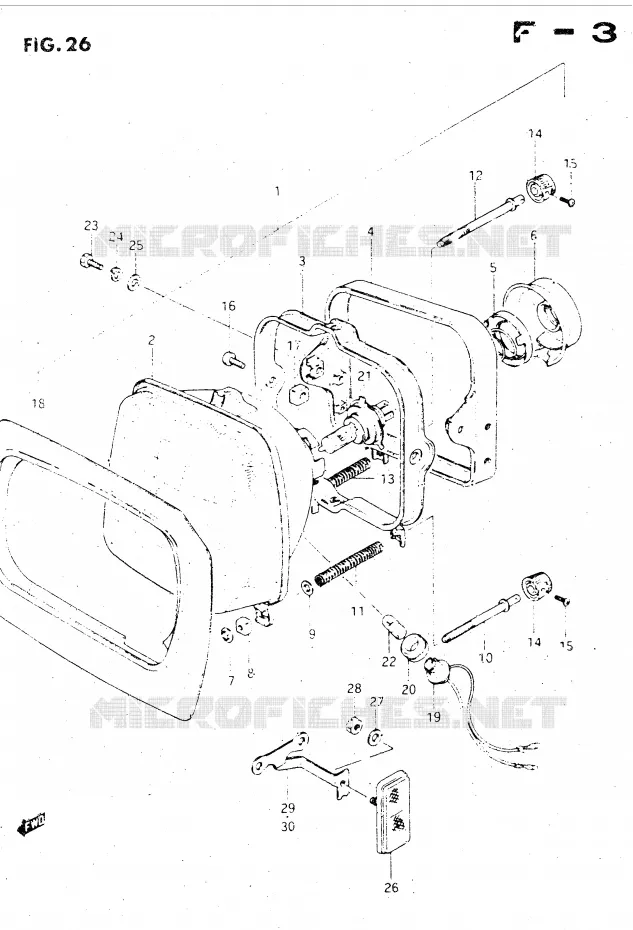

HEADLIGHT (GSX500ESE / ESF) FOR SUZUKI GSX-E 500 1984

INDICATORS

HEADLAMP ASSY

35100-49550-999 3510049550999

Not available

UNIT

35121-49550-000 3512149550000

Not available

MOUNTING RING

35130-49500-000 3513049500000

Not available

HOUSING

35141-49500-000 3514149500000

Not available

DISCONTINUE
HOLDER, BULB

35136-49200-000 3513649200000

Not available

COVER, SOCKET

35173-49200-000

35173-38A00-000

$19,97

Unit Price

NUT 4MM

35152-49330-000

09148-04010-000

$2,97

Unit Price

NUT

35152-49500-000 3515249500000

Not available

.WASHER

35157-49320-000 3515749320000

Not available

DISCONTINUE

35151-49500-000

Not available

SPRING, LH

35154-49500-000 3515449500000

Not available

DISCONTINUE
ADJUST SCREW, RH

35151-49320-000 3515149320000

Not available

DISCONTINUE
SPRING

35154-49320-000 3515449320000

Not available

KNOB

35161-49320-000 3516149320000

Not available

SCREW

02112-03108-000

02112-0310A-000

$3,97

Unit Price

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

NUT

35135-45900-000 3513545900000

$4,97

Unit Price

SHADE

35129-49300-000 3512949300000

Not available

SOCKET

36118-49320-000 3611849320000

Not available

JOINT RUBBER

36116-22630-000 3611622630000

$10,97

Unit Price

BULB(12V, 5W)
BULB (12V, 60/55W, H4)

09471-12060-000

Not available

BULB (12V, 4W)

09471-12063-000

Not available

BOLT

01107-06126-000

01500-06123-000

$3,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

WASHER

08322-11066-000

08322-01063-000

$3,97

Unit Price

REFLEX REFLECTOR, FRONT SIDE

35950-31310-000 3595031310000

Not available

WASHER

08322-21055-000

08322-0105B-000

$3,97

Unit Price

08310-0005A

08310-12055-000

Not available

DISCONTINUED

35990-43400-000 3599043400000

Not available

BRACKET, LH

35990-43410-000 3599043410000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (GSX500ESE/ESF) of your Suzuki of GSX-E. Let us know if you have any questions.
