STARTER MOTOR CLUTCH

CAM SHAFT - VALVE FOR SUZUKI GSX-E 500 1984

TIMING

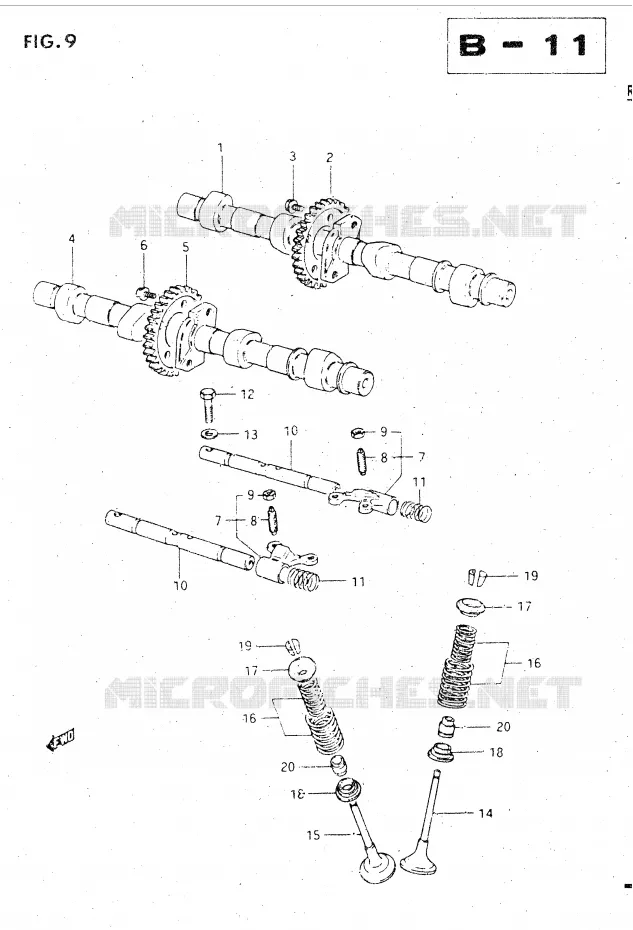

CAM SHAFT - VALVE Suzuki MOTO 500 GSX-E 1984 GSX500EE(E39)

1

CAM SHAFT, INTAKE

12711-43403-000 1271143403000

Not available

1

CAM SHAFT, INTAKE

12711-43430-000 1271143430000

Not available

2

SPROCKET, INTAKE CAM SHAFT

12741-43401-000 1274143401000

Not available

3

BOLT(7X11)
BOLT

09103-07001-000 0910307001000

$3,97

Unit Price

4

CAM SHAFT, EXHAUST

12721-43402-000 1272143402000

Not available

5

SPROCKET, EXHAUST CAM SHAFT

12741-43401-000 1274143401000

Not available

6

BOLT(7X11)
BOLT

09103-07001-000 0910307001000

$3,97

Unit Price

7

ARM, VALVE ROCKER

12840-11400-000 1284011400000

Not available

8

SCREW, TAPPET ADJUSTING

12842-49210-000

12842-49201-000

$8,97

Unit Price

9

.NUT

12843-49210-000 1284349210000

Not available

10

SHAFT, VALVE ROCKER ARM

12861-43401-000 1286143401000

Not available

11

SPRING

09440-13024-000 0944013024000

Not available

12

BOLT

01107-06306-000

01500-0630A-000

$3,97

Unit Price

13

WASHER

08322-21066-000

08322-0106A-000

$2,97

Unit Price

14

VALVE, INTAKE

12911-43400-000 1291143400000

Not available

15

VALVE, EXHAUST

12912-43400-000 1291243400000

Not available

16

SPRING SET, VALVE

12920-33230-000 1292033230000

Not available

17

DISCONTINUED

12931-43400-000 1293143400000

Not available

18

SEAT, VALVE SPRING

12933-33200-000

12933-33201-000

$8,97

Unit Price

19

DISCONTINUED

12932-43402-000 1293243402000

Not available

20

OIL SEAL, VALVE STEM
OIL SEAL

09289-05008-000 0928905008000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT - VALVE of your Suzuki of GSX-E. Let us know if you have any questions.
