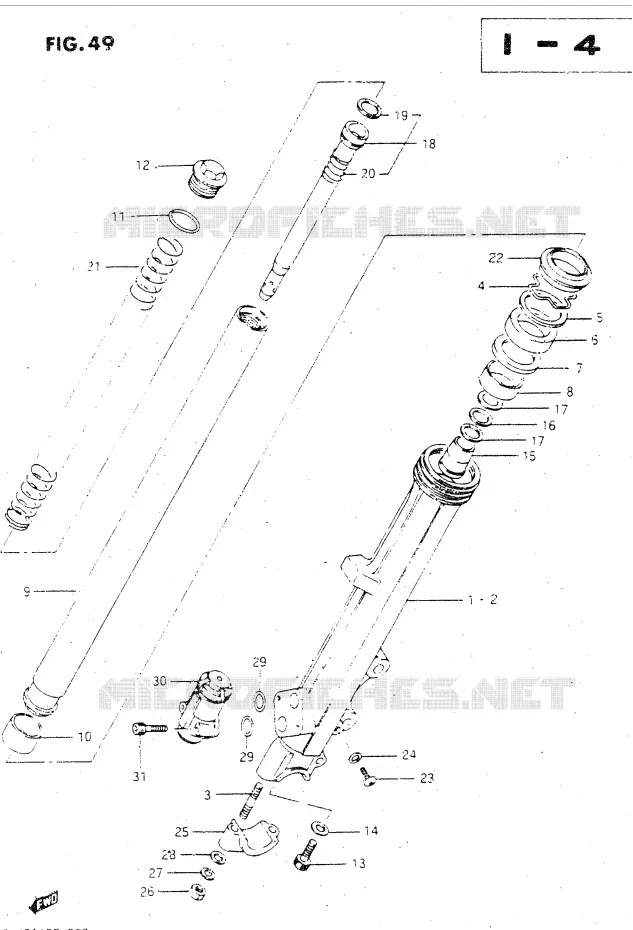

FRONT FORK (MODEL F) FOR SUZUKI GSX-E 500 1984

STEERING COLUMN (GSX500EE / EF) REFER TO FIG51 (I-6) FOR GSX500ESE/ESF

OUTER TUBE, RH (BLACK)

51130-43405-15T 511304340515T

Not available

OUTER TUBE, LH (BLACK)

51140-43405-15T 511404340515T

Not available

BOLT, STUD

01411-08308-000

01411-0830A-000

$3,97

Unit Price

RING, STOPPER
SNAP RING

51156-40301-000 5115640301000

$7,97

Unit Price

DISCONTINUE
WASHER

51158-49000-000 5115849000000

Not available

SEAL, OIL

51153-49001-000

51153-08C20-000

$31,97

Unit Price

WASHER

51158-49500-000 5115849500000

$6,97

Unit Price

METAL, SLIDE

51167-49510-000

51167-01D00-000

$18,97

Unit Price

INNER TUBE

51110-43430-000 5111043430000

Not available

DISCONTINUE
PISTON

51121-49510-000 5112149510000

O RING

51117-38260-000 5111738260000

$4,97

Unit Price

CAP

51351-43410-000 5135143410000

Not available

BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

DISCONTINUE
PIECE, OIL LOCK

51195-45420-000 5119545420000

Not available

WASHER

51123-45420-000 5112345420000

$6,97

Unit Price

SPRING, LEAF
LEAF SPRING

51125-45420-000 5112545420000

$6,97

Unit Price

CYLINDER

51146-43405-000 5114643405000

Not available

DISCONTINUE
PISTON RING

51196-43400-000 5119643400000

Not available

SPRING, REBOUND

51177-43400-000 5117743400000

Not available

SPRING

51171-43410-000 5117143410000

Not available

DISCONTINUE
DUST SEAL

51173-43400-000 5117343400000

Not available

SCREW

02112-04085-000

02112-0408B-000

$2,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

51183-03010-000 5118303010000

Not available

HOLDER, AXLE (BLACK)

51132-43400-15T 511324340015T

Not available

.NUT

08310-11085-000 0831011085000

Not available

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

DISCONTINUE
O RING

51799-00A00-000 5179900A00000

Not available

DISCONTINUE
P.D.F ASSY

51770-43405-000 5177043405000

Not available

BOLT

07110-06408-000

07130-06407-000

$5,97

Unit Price

DAMPER ASSY, RH

51103-43610-000 5110343610000

Not available

DAMPER ASSY, LH

51104-43610-000 5110443610000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL F) of your Suzuki of GSX-E. Let us know if you have any questions.
