Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT (GSX500ESE / ESF)

INDICATORS FOR SUZUKI GSX-E 500 1984

TAIL LIGHT

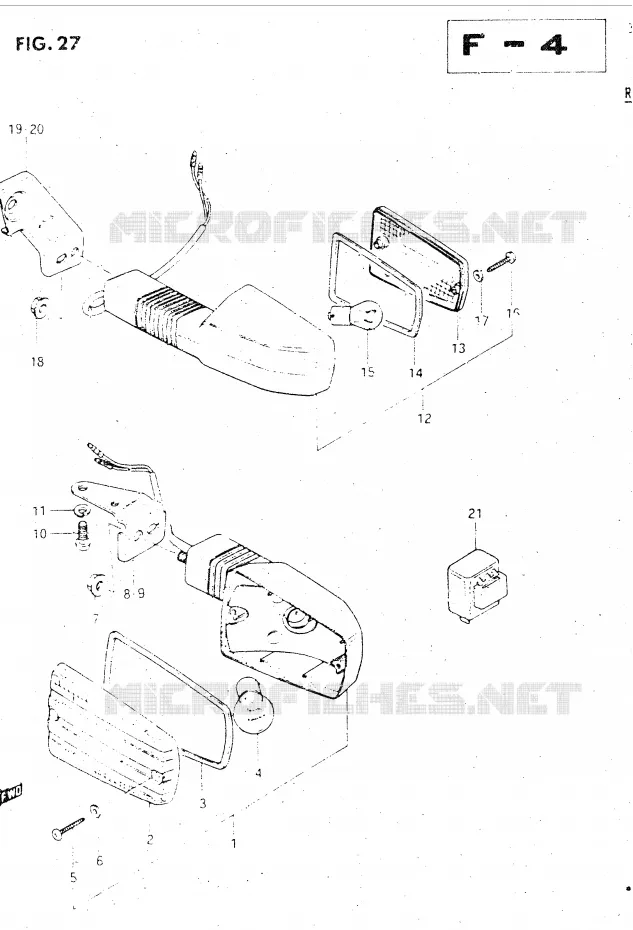

INDICATORS Suzuki MOTO 500 GSX-E 1984 GSX500EE(E39)
1
LAMP ASSY, FRONT TURN SIGNAL

35601-43421-000   3560143421000

3560143421000
Not available
1
LAMP ASSY, FRONT TURN SIGNAL

35601-43481-000   3560143481000

3560143481000
Not available
2
DISCONTINUE

35612-43410-000  

3561243410000
Not available
3
DISCONTINUE
GASKET

35613-43410-000   3561343410000

3561343410000
Not available
4
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

5
.TAPPING SCREW

03211-04208-000   0321104208000

0321104208000
Not available
6
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

7
NUT

08316-26085-000  

08316-2008A-000
 0831626085000

Unit Price

8
BRACKET, FRONT RH

35671-43400-000   3567143400000

3567143400000
Not available
9
BRACKET, FRONT LH

35681-43400-000   3568143400000

3568143400000
Not available
10
SCREW

02112-06166-000  

02112-0616A-000
 0211206166000

Unit Price

11
08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000  

0832121066000
Not available
12
LAMP ASSY, REAR TURN SIGNAL

35603-43421-000   3560343421000

3560343421000
Not available
12
LAMP ASSY, REAR TURN SIGNAL

35603-43481-000   3560343481000

3560343481000
Not available
13
LENS

35652-43420-000   3565243420000

3565243420000
Not available
14
DISCONTINUE
GASKET

35613-43410-000   3561343410000

3561343410000
Not available
15
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

16
.TAPPING SCREW

03211-04208-000   0321104208000

0321104208000
Not available
17
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

18
NUT

08316-26086-000   0831626086000

0831626086000
Not available
19
BRACKET, REAR RH

35621-43400-000   3562143400000

3562143400000
Not available
20
BRACKET, REAR LH

35641-43400-000   3564143400000

3564143400000
Not available
21
RELAY ASSY, TURNSIGNAL

38610-31310-000  

38610-31X50-000
 3861031310000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki of GSX-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GSX-E 1984
