Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CASING FOR SUZUKI KINGQUAD 500 2017

CASING

Item numbers

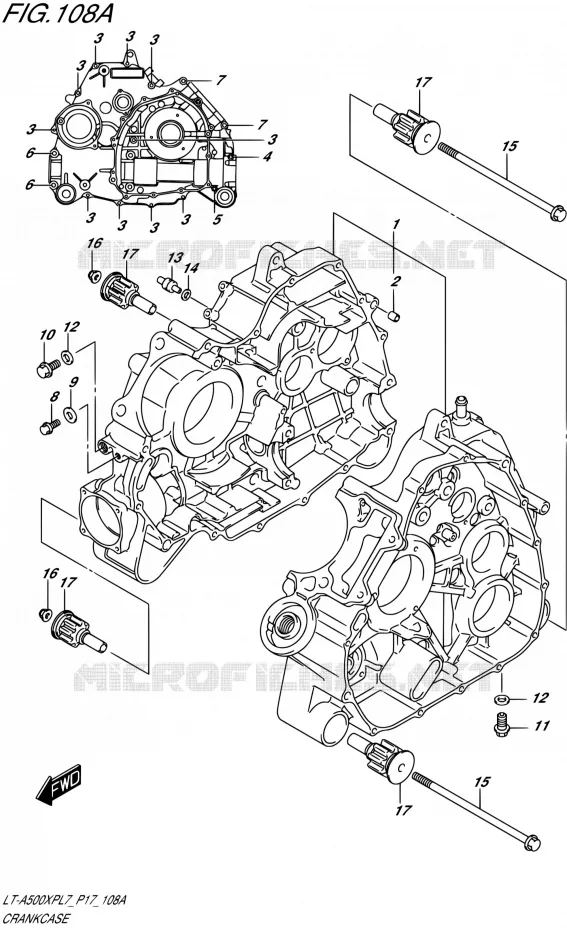

CASING Suzuki QUAD 500 KINGQUAD 2017 LT-A500XP L7 (P17)
1
2
3
3
3
3
3
3
3
3
3
3
4
5
6
6
7
7
8
9
10
11
12
12
13
14
15
15
16
16
17
17
17
17
1
CRANKCASE SET

11301-11870-000  

11301-11871-000
 1130111870000

Unit Price

2
PIN 11X16<br />.PIN
PIN 11X16
.PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

3
.BOLT
.BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

4
.BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

5
.BOLT

01547-0690A-000   015470690A000

015470690A000

Unit Price

6
.BOLT

01550-0850A-000   015500850A000

015500850A000

Unit Price

7
.BOLT

01550-0875A-000   015500875A000

015500875A000

Unit Price

8
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

9
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

10
PLUG
PLUG (12X10)

09247-12006-000   0924712006000

0924712006000

Unit Price

11
PLUG, T.D.C.

09247-12102-000  

09247-12104-000
 0924712102000

Unit Price

12
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
13
JET, OIL GALLERY
JET, OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

14
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

15
BOLT, ENG MTG, L195
BOLT (10X195)

09103-10118-000   0910310118000

0910310118000

Unit Price

16
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

17
BUSH, ENGINE MOUNTING
BUSH, ENG MTG

11651-31G10-000   1165131G10000

1165131G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki KINGQUAD 500 POWER STEERING of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2017

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 KINGQUAD 2017

Select your Suzuki 2017 model

500 KINGQUAD 2017 LT-A500XP L7 (P17)

KINGQUAD 500 POWER STEERING

Suzuki KINGQUAD

Displacement: 500 cc
Year: 2017
Model code LT-A500XP L7 (P17)
