CASING

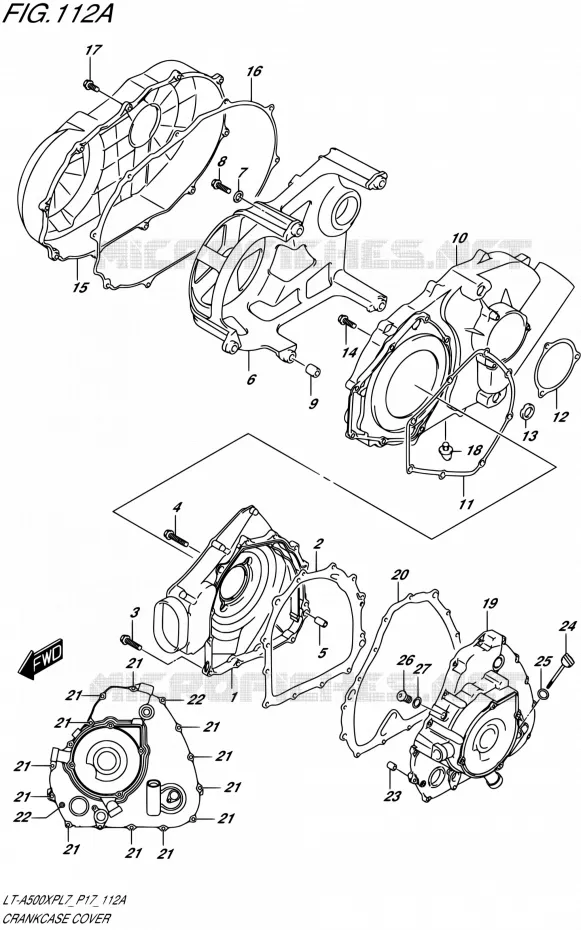

CASING FOR SUZUKI KINGQUAD 500 2017

V-BELT COOLING DUCT

Item numbers

COVER, CLUTCH

11341-11H00-000 1134111H00000

$196,97

Unit Price

GASKET, CLUTCH COVER
GASKET

11482-11H00-000 1148211H00000

$16,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

HOUSING, V-BELT BEARING
HOUSING, BELT BEARING

11342-11H00-000 1134211H00000

$280,97

Unit Price

GASKET, V-BELT BEARING HOUSING

11488-11H00-000

11488-11H01-000

$5,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

04211-09149-000 0421109149000

$2,97

Unit Price

COVER, V BELT INNER
COVER, BELT INNER

11370-11H00-000 1137011H00000

$171,97

Unit Price

GASKET, V-BELT COVER INNER FR

11484-11H00-000

11484-11H01-000

$25,97

Unit Price

GASKET, V-BELT COVER INNER RR
GASKET

11485-31G00-000 1148531G00000

$11,97

Unit Price

GASKET, V-BELT COVER INNER HOLE

11487-11H00-000

11487-11H01-000

$6,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

COVER, V BELT OUTER
COVER, BELT OUTER

11380-11H00-000 1138011H00000

$166,97

Unit Price

GASKET, V-BELT COVER OUTER

11486-11H00-000

11486-11H01-000

$27,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

PLUG, WATER DRAIN

11375-31G00-000 1137531G00000

$5,97

Unit Price

COVER, MAGNETO

11350-11H10-000 1135011H10000

$305,97

Unit Price

GASKET, MAGNETO COVER
GASKET

11483-11H00-000 1148311H00000

$29,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

GAUGE, OIL LEVEL

11971-09F60-000 1197109F60000

$13,97

Unit Price

O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

09248-14011
PLUG (14X12)

09248-14012-000

Not available

GASKET
GASKET (14X18X1.5)

09168-14014-000 0916814014000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki KINGQUAD 500 POWER STEERING of KINGQUAD. Let us know if you have any questions.
