TRANSMISSION (2)

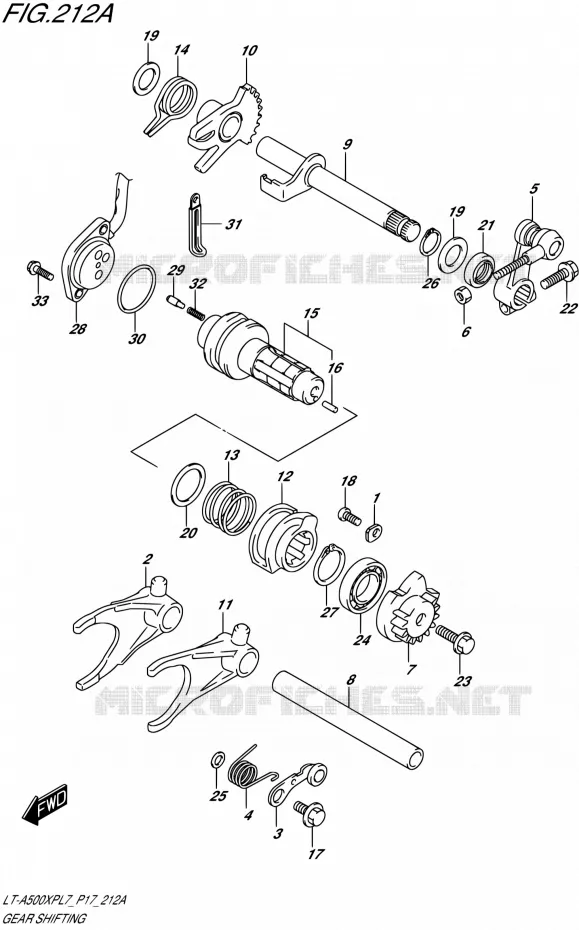

GEAR SHIFTING ASSY FOR SUZUKI KINGQUAD 500 2017

DRIVESHAFT

Item numbers

RETAINER
RETAINER, SUB T/M SHIFT CAM

24741-21A00-000 2474121A00000

$4,97

Unit Price

FORK, GEAR SHIFT REVERSE
FORK, REVERSE GR SHIFT

25240-31G10-000 2524031G10000

$87,97

Unit Price

STOPPER, SHIFT CAM

25350-31G00-000 2535031G00000

$14,97

Unit Price

SPRING, SHIFT
SPRING, SHIFT CAM STOPPER

25355-35F01-000 2535535F01000

$5,97

Unit Price

ARM, SELECT

25360-11H00-000 2536011H00000

$62,97

Unit Price

NUT

08310-0006A-000

Not available

PLATE, GEAR SHIFT CAM STOPPER
PLATE, GR SHIFT CAM STOPPER (NT:16)

25381-11H00-000 2538111H00000

$43,97

Unit Price

SHAFT, GEAR SHIFT FORK(L:115)
SHAFT, SUB T/M GEAR SHIFT

25411-38A00-000 2541138A00000

$29,97

Unit Price

DISCONTINUE
SHAFT, SUB T/M SHIFT, NO.2

25510-31G00-000 2551031G00000

Not available

GEAR, SUB T/M SHIFT
GEAR, SUB T/M SHIFT (NT:32)

25540-31G00-000 2554031G00000

$24,97

Unit Price

FORK, SUB T/M GEAR SHIFT

29510-31G10-000 2951031G10000

$91,97

Unit Price

CAM, SUB T/M GEAR SHIFT

29611-31G00-000 2961131G00000

$68,97

Unit Price

SPRING, SUB T/M SHIFT FORK

29612-31G00-000 2961231G00000

$5,97

Unit Price

SPRING, SHIFT ARM RETURN

29613-31G00-000 2961331G00000

$8,97

Unit Price

SHAFT, SUB T/M GEAR SHIFT

29620-31G11-000 2962031G11000

$181,97

Unit Price

.PIN

04221-04089-000 0422104089000

$1,97

Unit Price

BOLT
BOLT (6X14.3)

09111-06041-000 0911106041000

$4,97

Unit Price

BOLT, (6X12)
SCREW (6X12)

09125-06122-000 0912506122000

$3,97

Unit Price

SHIM (14X24X1)

09181-14195-000 0918114195000

$3,97

Unit Price

SHIM (25X32X1)

09181-25139-000 0918125139000

$4,97

Unit Price

SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14005-000 0928314005000

$9,97

Unit Price

BOLT

01550-0620A-000 015500620A000

$2,97

Unit Price

BOLT

01550-0630A-000 015500630A000

$3,97

Unit Price

BEARING

08110-69040-000 0811069040000

$37,97

Unit Price

WASHER, THRUST
WASHER

08211-06121-000 0821106121000

$3,97

Unit Price

CIRCLIP

08331-3114A-000 083313114A000

$3,97

Unit Price

CIRCLIP

08331-31259-000 0833131259000

$3,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37720-31G00-000 3772031G00000

$113,97

Unit Price

K S PAWL ROLLER
PIN (5X15.5)

09209-05011-000 0920905011000

$3,97

Unit Price

O-RING, ID:35.5
O RING (D:2.4, ID:35.5)

09280-35006-000 0928035006000

$5,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BOLT

07120-0516A-000

07120-0516B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki KINGQUAD 500 POWER STEERING of KINGQUAD. Let us know if you have any questions.
