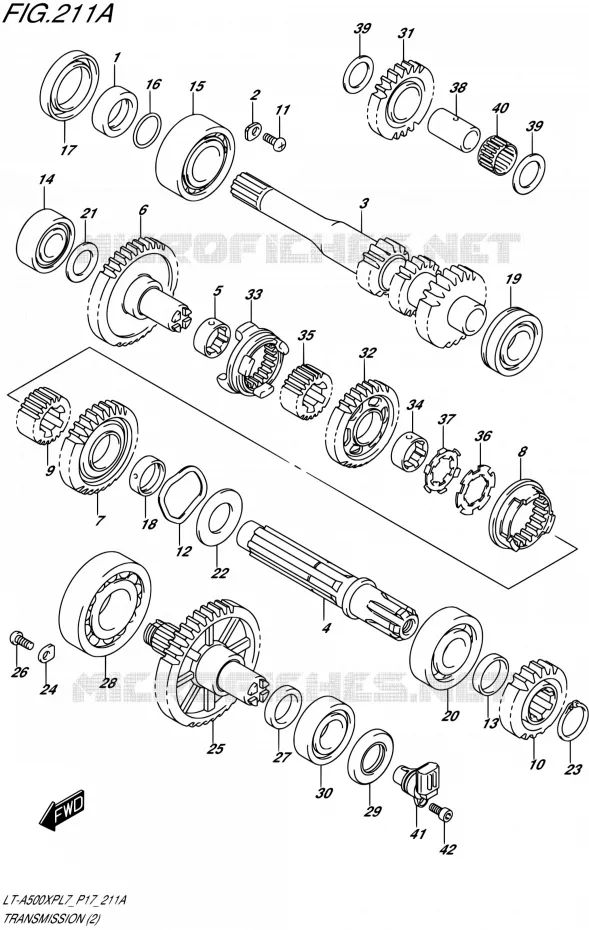

TRANSMISSION (2) FOR SUZUKI KINGQUAD 500 2017

GEAR SHIFTING ASSY

Item numbers

SPACER, PRIMARY SHAFT
SPACER, DRIVE SHAFT

21102-31G00-000 2110231G00000

$32,97

Unit Price

RETAINER
RETAINER, DRIVE SHAFT RH

24741-21A00-000 2474121A00000

$4,97

Unit Price

SHAFT, DRIVE
SHAFT, DRIVE (NT:25/16/16)

29111-11H01-000 2911111H01000

$246,97

Unit Price

SHAFT, SUB T/M COUNTER

29131-31G00-000 2913131G00000

$114,97

Unit Price

BUSH, 3RD DRIVEN GEAR
BUSH, SUB T/M DRIVEN GR LOW

29215-07G00-000 2921507G00000

$22,97

Unit Price

GEAR, SUB T/M DRIVEN LOW
GEAR, SUB T/M DRIVEN LOW (NT:41)

29311-31G00-000 2931131G00000

$134,97

Unit Price

GEAR, SUB T/M DRIVEN HIGH
GEAR, SUB T/M DRIVEN HIGH (NT:31)

29321-31G00-000 2932131G00000

$159,97

Unit Price

DOG, GEAR SHIFT HIGH

29331-31G10-000 2933131G10000

$85,97

Unit Price

SPACER, REVERSE SELECT SLIDING
SPACER, SUB T/M SELECT

29332-31G00-000 2933231G00000

$34,97

Unit Price

GEAR, SUB T/M DRIVE NO.2
GEAR, SUB T/M DRIVE NO.2 (NT:18)

29411-31H00-000 2941131H00000

$64,97

Unit Price

BOLT, (6X12)
SCREW (6X12)

09125-06122-000 0912506122000

$3,97

Unit Price

WASHER

09164-34001-000 0916434001000

$9,97

Unit Price

SPACER (25X30X7)

09180-25097-000 0918025097000

$13,97

Unit Price

BEARING
BEARING (20X47X14)

09262-20139-000 0926220139000

$56,97

Unit Price

BEARING (25X62X17)

09262-25153-000 0926225153000

$96,97

Unit Price

O-RING, DRIVESHAFT
O RING (D:2.4, ID:24.7)

09280-25004-000 0928025004000

$3,97

Unit Price

SEAL, CLUTCH HOUSING
OIL SEAL (38X56X7)

09283-38025-000 0928338025000

$49,97

Unit Price

BUSH
BUSH, SUB T/M DRIVEN GR

24252-19F00-000 2425219F00000

$17,97

Unit Price

BEARING (25X52X15)

09262-25142-000 0926225142000

$31,97

Unit Price

BALL BEARG 25X62X1
BEARING (25X62X17)

09262-25073-000 0926225073000

$38,97

Unit Price

WASHER THRUST
WASHER

08211-20363-000 0821120363000

$5,97

Unit Price

WASHER

08211-25463-000 0821125463000

$6,97

Unit Price

CIRCLIP

08331-31259-000 0833131259000

$3,97

Unit Price

RETAINER
RETAINER, SEC DRIVE SHAFT

24741-21A00-000 2474121A00000

$4,97

Unit Price

SHAFT, SUB T/M OUTPUT

29120-31H00-000 2912031H00000

$212,97

Unit Price

BOLT, (6X12)
SCREW (6X12)

09125-06122-000 0912506122000

$3,97

Unit Price

SPACER (25X34X5.5)

09180-25083-000 0918025083000

$19,97

Unit Price

BEARING (30X72X19)

09262-30077-000 0926230077000

Not available

OIL SEAL
OIL SEAL (25X45X5)

09283-25076-000 0928325076000

$16,97

Unit Price

BEARING (25X52X15)

09262-25003-000 0926225003000

$33,97

Unit Price

GEAR, REVERSE IDLE
GEAR, REVERSE IDLE (NT:23)

24561-31G20-000 2456131G20000

$79,97

Unit Price

GEAR, REVERSE DRIVEN
GEAR, REVERSE DRIVEN (NT:32)

24571-31G00-000 2457131G00000

$119,97

Unit Price

DOG, SUB T/M SELECT SLIDING
DOG, SUB T/M SELECT SL

24581-31G00-000 2458131G00000

$88,97

Unit Price

BUSH, 3RD DRIVEN GEAR
BUSH, REVERSE DRIVEN GEAR

29215-07G00-000 2921507G00000

$22,97

Unit Price

SPACER, REVERSE SELECT SLIDING
SPACER, REVERSE SELECT

29332-31G00-000 2933231G00000

$34,97

Unit Price

LOCK WASHER

09167-25013-000 0916725013000

$4,97

Unit Price

LOCK WASHER
WASHER

09169-25001-000 0916925001000

$3,97

Unit Price

SHAFT, REVERSE IDLE GEAR
SHAFT, REVERSE IDLE

24551-31G00-000 2455131G00000

$17,97

Unit Price

SHIM
SHIM (20X30X1)

09181-20195-000 0918120195000

$3,97

Unit Price

ROLLER BEARING
BEARING (20X24X13)

09263-20060-000 0926320060000

$25,97

Unit Price

SENSOR, SPEED

34990-31G01-000 3499031G01000

$115,97

Unit Price

BOLT

07130-0616A-000

07130-0616B-000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki KINGQUAD 500 POWER STEERING of KINGQUAD. Let us know if you have any questions.
