Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRACKCASE COVER FOR SUZUKI BURGMAN 650 2012

CRACKCASE COVER

Item numbers

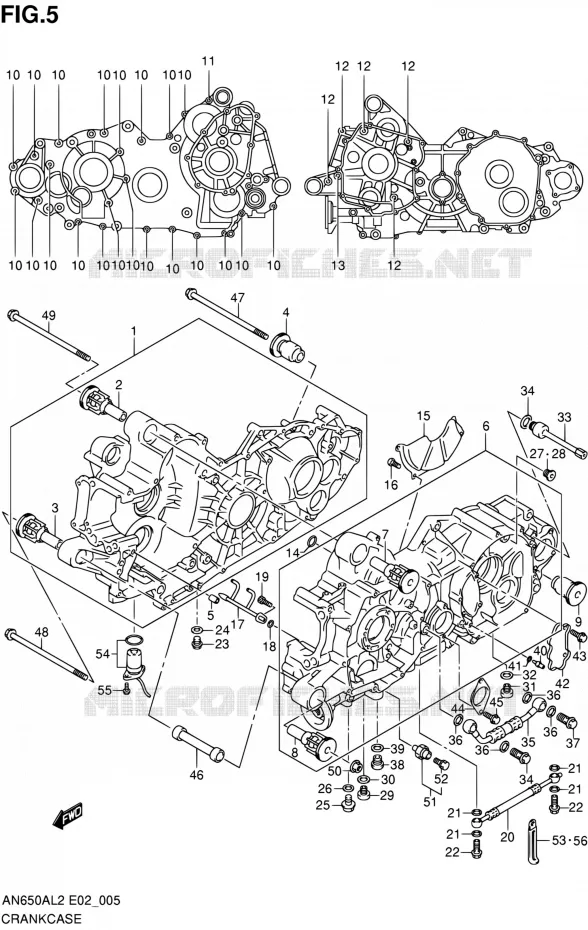

CRACKCASE COVER Suzuki SCOOTER 650 BURGMAN 2012 AN650AL2(E02)
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
12
12
12
12
13
14
15
16
17
18
19
20
21
21
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
36
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
1
CRANKCASE SET, R
CRANKCASE SET, RH

11310-10831-000   1131010831000

1131010831000

Unit Price

2
BUSH, ENGINE MOUNTING

11652-10G00-000  

11652-10G10-000
 1165210G00000

Unit Price

3
BUSH, ENGINE MOUNTING
.BUSH, ENGINE MTG

11652-10G30-000   1165210G30000

1165210G30000

Unit Price

4
BUSH, ENGINE MOUNTING
BUSH, ENGINE MTG

11651-10G00-000   1165110G00000

1165110G00000

Unit Price

5
PIN, CRANKCASE
PIN, CRANKCASE

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

6
CRANKCASE SET, L
CRANKCASE SET, LH

11320-10831-000   1132010831000

1132010831000

Unit Price

7
BUSH, ENGINE MOUNTING

11652-10G00-000  

11652-10G10-000
 1165210G00000

Unit Price

8
BUSH, ENGINE MOUNTING
.BUSH, ENGINE MTG

11652-10G30-000   1165210G30000

1165210G30000

Unit Price

9
BUSH, ENGINE MOUNTING
BUSH, ENGINE MTG

11651-10G00-000   1165110G00000

1165110G00000

Unit Price

10
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

11
BOLT

01547-0685A-000   015470685A000

015470685A000

Unit Price

12
BOLT

01550-0895A-000  

01550-0895B-000
 015500895A000

Unit Price

13
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

14
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

15
SEPARATOR, CRANKCASE OIL

11323-10G00-000   1132310G00000

1132310G00000

Unit Price

16
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

17
JET, PISTON COOLING

11390-10G00-000   1139010G00000

1139010G00000

Unit Price

18
O RING
O RING (D:1.9, ID:5.7)

09280-06005-000   0928006005000

0928006005000

Unit Price

19
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

20
PIPE, CRANKCASE OIL

11282-10G10-000   1128210G10000

1128210G10000

Unit Price

21
GASKET ****<br />GASKET (10.1X16X1)
GASKET ****
GASKET (10.1X16X1)

09168-10007-000   0916810007000

0916810007000

Unit Price

22
UNION

09360-10066-000   0936010066000

0936010066000

Unit Price

23
PLUG
PLUG (10X12)

09247-10008-000   0924710008000

0924710008000

Unit Price

24
CRNK DRAIN PLUG GASK<br />GASKET (10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

25
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

26
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

27
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

28
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

29
PLUG, OIL DRAIN
PLUG (14X20)

09247-14036-000   0924714036000

0924714036000

Unit Price

30
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

31
PLUG, T/M OIL DRAIN
PLUG

09248-12008-000   0924812008000

0924812008000

Unit Price

32
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
33
PLUG, T/M OIL FILLER

11326-10G00-000   1132610G00000

1132610G00000

Unit Price

34
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

35
PIPE, OIL PUMP NO.2

11328-10G20-000   1132810G20000

1132810G20000

Unit Price

36
GASKET (14X20X1.5)

09168-14015-000  

0916814015000
Not available
37
BOLT,14X27<br />UNION
BOLT, 14X27
UNION

09360-14012-000   0936014012000

0936014012000

Unit Price

38
09248-14011
PLUG (14X12)

09248-14012-000  

0924814012000
Not available
39
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

40
JET, OIL GALLERY
JET, OIL GALLERY (8)

09493-80005-000   0949380005000

0949380005000

Unit Price

41
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

42
DISCONTINUE
COVER, CRANKCASE LH

11324-10G00-000   1132410G00000

1132410G00000
Not available
43
BOLT, M6X12
BOLT (6X12)

09103-06172-000   0910306172000

0910306172000

Unit Price

44
CAP, PRIMARY SHAFT L
CAP, PRIMARY SHAFT LH

11325-10G10-000   1132510G10000

1132510G10000

Unit Price

45
BOLT, M6X12
BOLT (6X12)

09103-06172-000   0910306172000

0910306172000

Unit Price

46
SPACER, ENG MTG FR
SPACER, ENG MTG FRONT

11611-10G00-000   1161110G00000

1161110G00000

Unit Price

47
BOLT
BOLT (10X235)

09103-10239-000   0910310239000

0910310239000

Unit Price

48
BOLT (10X305)

09103-10153-000   0910310153000

0910310153000

Unit Price

49
BOLT (10X275)

09103-10347-000   0910310347000

0910310347000

Unit Price

50
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

51
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

52
BOLT, OIL PRESSURE SWITCH
.BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

53
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

54
SWITCH ASSY, ENGINE OIL LEVEL
SWITCH ASSY, OIL LEVEL

37990-10G00-000   3799010G00000

3799010G00000

Unit Price

55
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

56
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRACKCASE COVER of your Suzuki of BURGMAN. Let us know if you have any questions.
