WATER PUMP

RADIATOR FOR SUZUKI BURGMAN 650 2012

RADIATOR HOSE - EXPANSION TANK

Item numbers

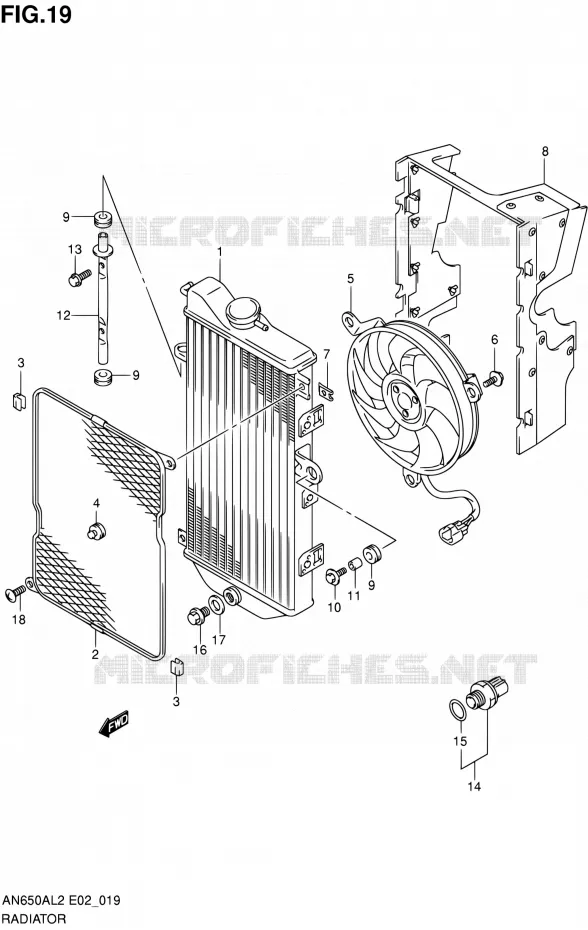

RADIATOR Suzuki SCOOTER 650 BURGMAN 2012 AN650AL2(E02)
1
2
3
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
18
1
RADIATOR ASSY, WATER

17710-10G00-000   1771010G00000

1771010G00000

Unit Price

2
DISCONTINUE
GUARD, RADIATOR

17750-10G00-000  

1775010G00000
Not available
3
PROTECTOR,CTR
PROTECTOR, CTR

17765-09F00-000  

17765-09F01-000
 1776509F00000

Unit Price

4
CUSHION, RADIATOR COVER UPPER
CUSHION, RADIATOR GUARD

17768-33410-000   1776833410000

1776833410000

Unit Price

5
FAN ASSY, RADIATOR

17800-10G00-000   1780010G00000

1780010G00000

Unit Price

6
BOLT, FAN ASSY
BOLT

17711-40F00-000   1771140F00000

1771140F00000

Unit Price

7
NUT, FAN ASSY
NUT

17712-40F00-000   1771240F00000

1771240F00000

Unit Price

8
SHIELD, RADIATOR HEAT

17760-10G00-000  

17760-26J00-000
 1776010G00000

Unit Price

9
CUSHION
CUSHION

09320-10015-000   0932010015000

0932010015000

Unit Price

10
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06167-000   0911606167000

0911606167000

Unit Price

11
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

12
BRACKET, RADIATOR

17740-10G00-000   1774010G00000

1774010G00000

Unit Price

13
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

14
SWITCH COMP, RDTR FAN

17680-50F10-000  

17680-50F11-000
 1768050F10000

Unit Price

15
.O RING
.O RING

17689-50F00-000   1768950F00000

1768950F00000
Not available
16
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

17
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

18
SCREW

02142-0610A-000  

02142-0610B-000
 021420610A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 650 BURGMAN 2012
