FUEL PUMP

OIL PUMP FOR SUZUKI BURGMAN 650 2012

OIL COOLER

Item numbers

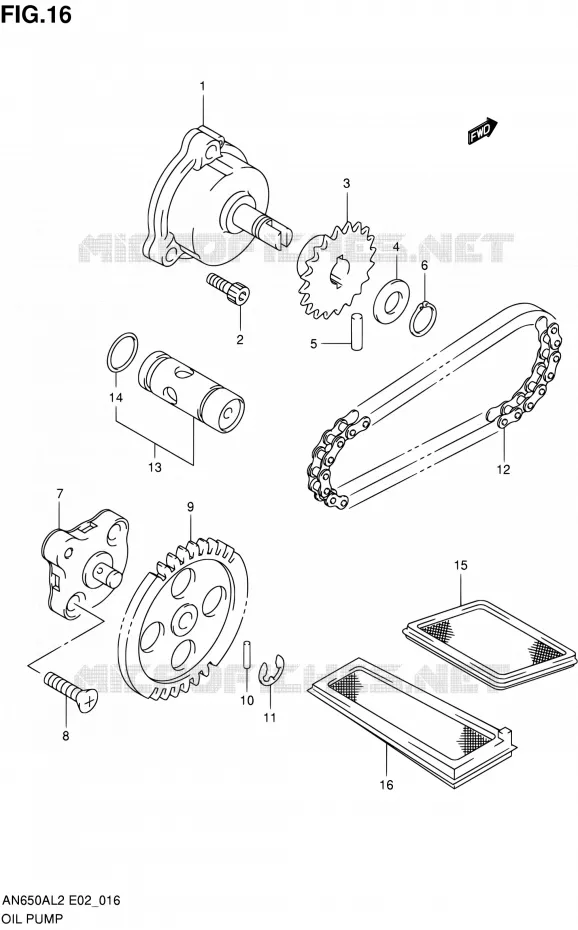

OIL PUMP Suzuki SCOOTER 650 BURGMAN 2012 AN650AL2(E02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
PUMP ASSY, ENGINE OIL NO.1
PUMP ASSY, OIL NO.1

16400-10G00-000   1640010G00000

1640010G00000

Unit Price

2
BOLT

07130-0625A-000   071300625A000

071300625A000

Unit Price

3
SPROCKET, OIL PUMP DRIVEN NO.1
SPROCKET, DRIVEN NO.1 (NT:21)

16331-10G00-000   1633110G00000

1633110G00000

Unit Price

4
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

5
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

6
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

7
PUMP ASSY, ENGINE OIL NO.2
PUMP ASSY, OIL NO.2

16400-10G10-000   1640010G10000

1640010G10000

Unit Price

8
SCREW

02122-0625A-000  

02122-0625B-000
 021220625A000

Unit Price

9
GEAR, OIL PUMP DRIVEN NO.2
GEAR, PUMP DRIVEN NO.2

16331-10G10-000   1633110G10000

1633110G10000

Unit Price

10
PIN

16421-20E00-000   1642120E00000

1642120E00000

Unit Price

11
CIRCLIP
E RING

16423-20E00-000   1642320E00000

1642320E00000

Unit Price

12
CHAIN, OIL PUMP DRIVE

16310-10G00-000   1631010G00000

1631010G00000

Unit Price

13
VALVE ASSY, OIL RELIEF(7K)
VALVE ASSY, OIL RELIEF

16440-10G00-000   1644010G00000

1644010G00000

Unit Price

14
ENG OIL PUMP O RING<br />.O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
.O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

15
STRAINER, ENGINE OIL
STRAINER, ENGINE OIL NO.1

16520-10G00-000  

1652010G00000
Not available
16
STRAINER, OIL PUMP NO.2
STRAINER, ENGINE OIL NO.2

16530-10G00-000  

1653010G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 650 BURGMAN 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 BURGMAN 2012

Select your Suzuki 2012 model

650 BURGMAN 2012 AN650AL2(E02)
650 BURGMAN 2012 AN650AL2(E02)

Suzuki BURGMAN

Displacement: 650 cc
Year: 2012
Model code AN650AL2(E02)
