Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FINAL GEAR

TRANSMISSION CASING FOR SUZUKI BURGMAN 650 2012

STAND

Item numbers

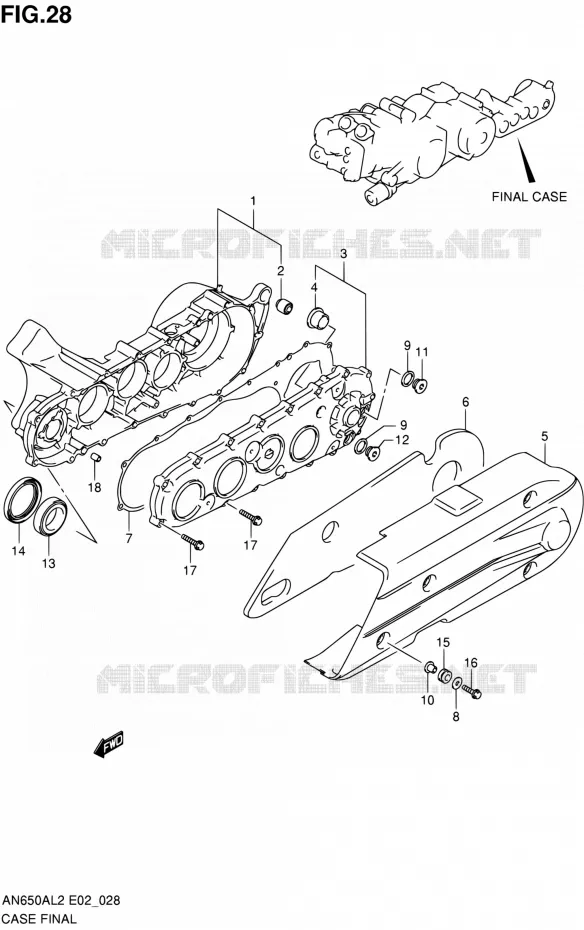

TRANSMISSION CASING Suzuki SCOOTER 650 BURGMAN 2012 AN650AL2(E02)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
1
CASE, FINAL GEAR, R
CASE, FINAL GEAR RH

27450-10G10-000   2745010G10000

2745010G10000

Unit Price

2
.BUSH (10.2X22.3X20)

09319-10032-000   0931910032000

0931910032000

Unit Price

3
DISCONTINUE
CASE, FINAL GEAR LH

27460-10G00-000   2746010G00000

2746010G00000
Not available
4
BUSH, FINAL GEAR CASE
.BUSH

27433-24A00-000   2743324A00000

2743324A00000

Unit Price

5
COVER, FINAL GEAR CASE

27471-10G00-000   2747110G00000

2747110G00000

Unit Price

6
CUSHION, FINAL GEAR CASE

27472-10G01-000   2747210G01000

2747210G01000

Unit Price

7
GASKET, FINAL GEAR CASE

27551-10G00-000   2755110G00000

2755110G00000

Unit Price

8
WASHER<br />WASHER (6.5X18X1.6)
WASHER
WASHER (6.5X18X1.6)

09160-06109-000   0916006109000

0916006109000

Unit Price

9
BREATHER PLUG G **S1<br />GASKET (18X24.2X2)
BREATHER PLUG G **S1
GASKET (18X24.2X2)

09168-18003-000   0916818003000

0916818003000

Unit Price

10
WASHER
WASHER

09169-06062-000   0916906062000

0916906062000

Unit Price

11
PLUG (18X11)

09248-18004-000   0924818004000

0924818004000

Unit Price

12
PLUG
PLUG (18X11)

09248-18008-000   0924818008000

0924818008000

Unit Price

13
BEARING
BEARING (35X55X14)

09265-35012-000   0926535012000

0926535012000

Unit Price

14
SEAL, OIL 53X68.2X7
OIL SEAL (53X68.2X7)

09283-53001-000   0928353001000

0928353001000

Unit Price

15
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000

Unit Price

16
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

17
BOLT
BOLT

01547-0630B-000   015470630B000

015470630B000

Unit Price

18
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION CASING of your Suzuki of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 650 BURGMAN 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 BURGMAN 2012

Select your Suzuki 2012 model

650 BURGMAN 2012 AN650AL2(E02)
650 BURGMAN 2012 AN650AL2(E02)

Suzuki BURGMAN

Displacement: 650 cc
Year: 2012
Model code AN650AL2(E02)
