Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK (MODEL F / G / H / J / K) REFER TO FIG.40A(G-12) FOR MODEL L/M

FUEL TANK (MODEL L / M) FOR SUZUKI INTRUDER 750 1987

SEAT

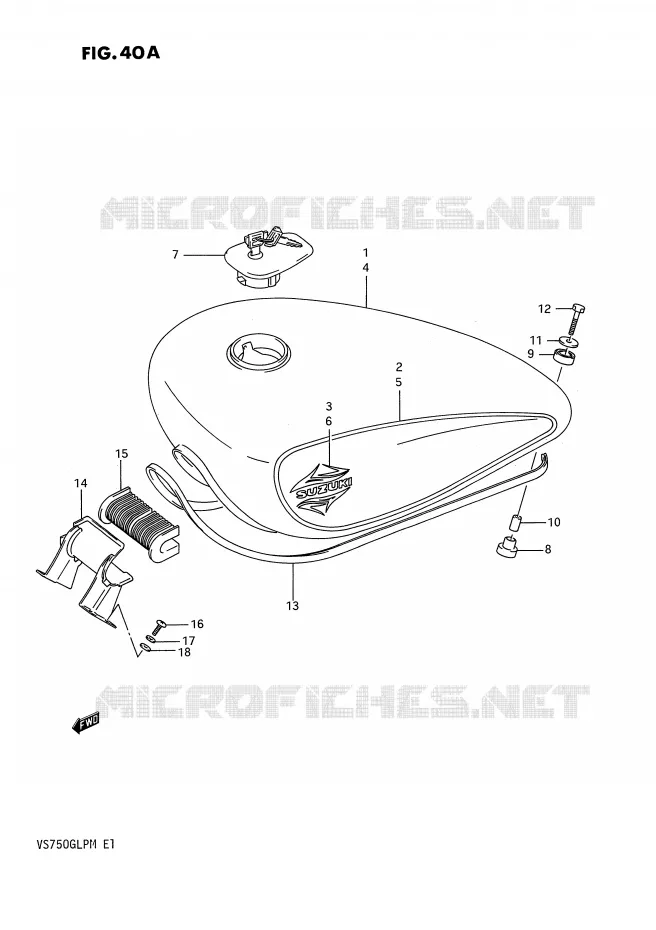

FUEL TANK (MODEL L/M) Suzuki MOTO 750 INTRUDER 1987 VS750GLPH(E1)
1
44100-38A70-20U
DISCONTINUED

44100-38A60-20U  

4410038A6020U
Not available
1
DISCONTINUED

44100-38A60-33J   4410038A6033J

4410038A6033J
Not available
1
DISCONTINUE
DISCONTINUED

44100-38A70-20U  

4410038A7020U
Not available
1
DISCONTINUED

44100-38A70-33J   4410038A7033J

4410038A7033J
Not available
2
TAPE SET, FUEL TANK

68110-38A10-3WH   6811038A103WH

6811038A103WH
Not available
2
DISCONTINUED

68110-38A10-3WJ   6811038A103WJ

6811038A103WJ
Not available
3
DISCONTINUE

68111-38A20-0PD  

6811138A200PD
Not available
3
DISCONTINUED

68111-38A20-0PE   6811138A200PE

6811138A200PE
Not available
4
DISCONTINUE

44100-38A90-14W  

4410038A9014W
Not available
4
44100-39A00-19A
DISCONTINUED

44100-38A90-19A  

4410038A9019A
Not available
4
DISCONTINUE

44100-39A00-14W  

4410039A0014W
Not available
4
DISCONTINUE
DISCONTINUED

44100-39A00-19A  

4410039A0019A
Not available
5
TAPE SET, FUEL TANK

68110-38A10-F63   6811038A10F63

6811038A10F63
Not available
5
TAPE SET, FUEL TANK

68110-38A10-F64   6811038A10F64

6811038A10F64
Not available
6
DISCONTINUE
EMBLEM

68111-38A30-0YR   6811138A300YR

6811138A300YR
Not available
6
EMBLEM

68111-38A30-0YS   6811138A300YS

6811138A300YS
Not available
7
CAP SET, FUEL TANK

44200-38820-000   4420038820000

4420038820000

Unit Price

7
CAP, FUEL TANK

44200-38A00-KEY   4420038A00KEY

4420038A00KEY
Not available
8
CUSHION(9X24X18)
CUSHION(9X24X18)

09320-10020-000  

09320-10071-000
 0932010020000

Unit Price

9
CUSHION<br />CUSHION, REAR
CUSHION
CUSHION, REAR

09320-14013-000   0932014013000

0932014013000

Unit Price

10
SPACER

09180-06091-000  

09180-06273-000
 0918006091000

Unit Price

11
WASHER, 6.5X24X1.6

09160-06072-000  

09160-06501-000
 0916006072000

Unit Price

12
BOLT

09128-06055-000  

01500-0635A-000
 0912806055000

Unit Price

13
MOLDING

68241-27A00-000  

68241-04X50-00B
 6824127A00000

Unit Price

14
BRACKET, FUEL TANK FR
BRACKET, FRONT (BRACK)

44250-38A01-019   4425038A01019

4425038A01019

Unit Price

15
CUSHION, FUEL TANK FR
CUSHION, FRONT

44511-38A01-000   4451138A01000

4451138A01000

Unit Price

16
SCREW

02142-06164-000  

02142-0616A-000
 0214206164000

Unit Price

17
08321-0106A
.LOCK WASHER

08321-21064-000  

0832121064000
Not available
18
WASHER

08322-21064-000  

08322-0106A-000
 0832221064000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
