TRANSMISSION

DRIVESHAFT (MODEL F) FOR SUZUKI INTRUDER 750 1987

DRIVESHAFT (MODEL G / H / J / K / L / M)

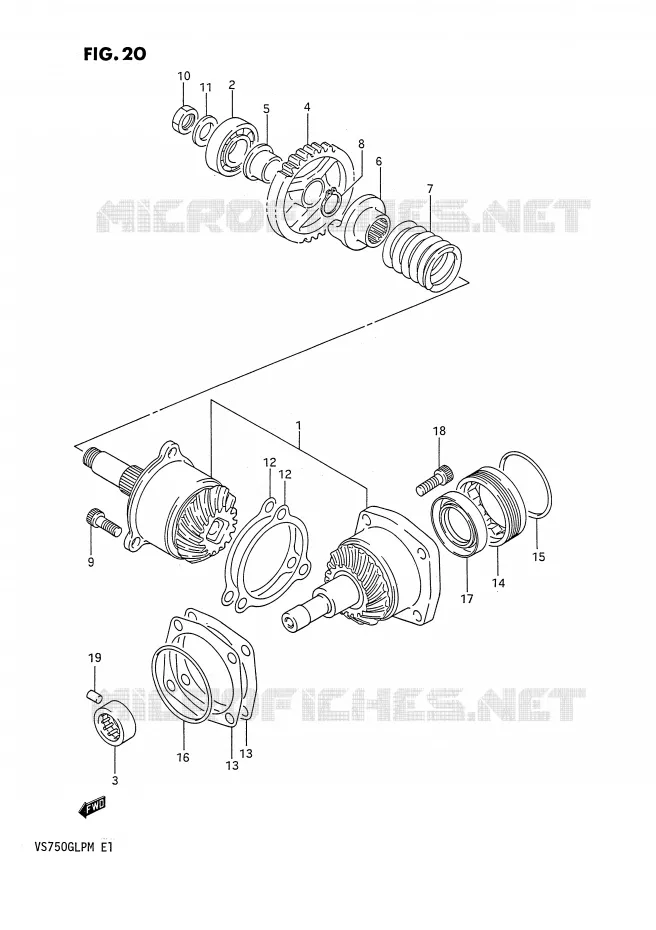

DRIVESHAFT (MODEL F) Suzuki MOTO 750 INTRUDER 1987 VS750GLPH(E1)
1
DISCONTINUE
2ND.GEAR & HOUSING SET (NT:15)

24900-38815-000   2490038815000

2490038815000
Not available
2
BEARING (20X52X15)

09262-20073-000   0926220073000

0926220073000

Unit Price

3
BEARING (20X34X16)

09263-20038-000   0926320038000

0926320038000

Unit Price

4
GEAR, REDUCTION DRIVEN (NT:30)

24631-38A00-000   2463138A00000

2463138A00000

Unit Price

5
BUSH, REDUCTION DRIVEN GEAR
BUSH

24632-38A00-000   2463238A00000

2463238A00000

Unit Price

6
DOG, OUTPUT CAM

24922-38A00-000   2492238A00000

2492238A00000

Unit Price

7
SPRING

09440-44002-000   0944044002000

0944044002000

Unit Price

8
CIRCLIP

08331-31218-000  

08331-31216-000
 0833131218000

Unit Price

9
BOLT

07110-08256-000  

07130-0825B-000
 0711008256000

Unit Price

10
SPR MOUNT DRUM NUT

09140-16014-000  

09140-16005-000
 0914016014000

Unit Price

11
WASHER
WASHER (16X29X4)

09160-16029-000   0916016029000

0916016029000

Unit Price

12
SHIM (T:0.30)

24935-38A01-030   2493538A01030

2493538A01030
Not available
12
SHIM (T:0.35)

24935-38A01-035   2493538A01035

2493538A01035
Not available
12
SHIM (T:0.40)

24935-38A01-040   2493538A01040

2493538A01040
Not available
12
SHIM (T:0.50)

24935-38A01-050   2493538A01050

2493538A01050
Not available
12
SHIM (T:0.60)

24935-38A01-060   2493538A01060

2493538A01060
Not available
13
SHIM (T:0.30)

24945-05A00-0A0   2494505A000A0

2494505A000A0
Not available
13
SHIM (T:0.35)

24945-05A00-0B0   2494505A000B0

2494505A000B0
Not available
13
SHIM (T:0.40)

24945-05A00-0C0   2494505A000C0

2494505A000C0
Not available
13
SHIM (T:0.50)

24945-05A00-0D0   2494505A000D0

2494505A000D0
Not available
13
SHIM (T:0.60)

24945-05A00-0E0   2494505A000E0

2494505A000E0
Not available
14
DISCONTINUE
STOPPER, BEARING

24942-38A02-000   2494238A02000

2494238A02000
Not available
15
O RING
O RING (D:1.9, ID:61.6)

09280-62002-000   0928062002000

0928062002000

Unit Price

16
O RING
O RING (D:2.1, ID:66.2)

09280-67004-000   0928067004000

0928067004000

Unit Price

17
OIL SEAL
OIL SEAL (38X54X6)

09283-38011-000   0928338011000

0928338011000

Unit Price

18
BOLT

07110-08256-000  

07130-0825B-000
 0711008256000

Unit Price

19
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
