TAIL LIGHT (MODEL F,MODEL K / L / M E1,E24) REFER TO FIG.33 (F- 4) FOR EXCEPT:MO

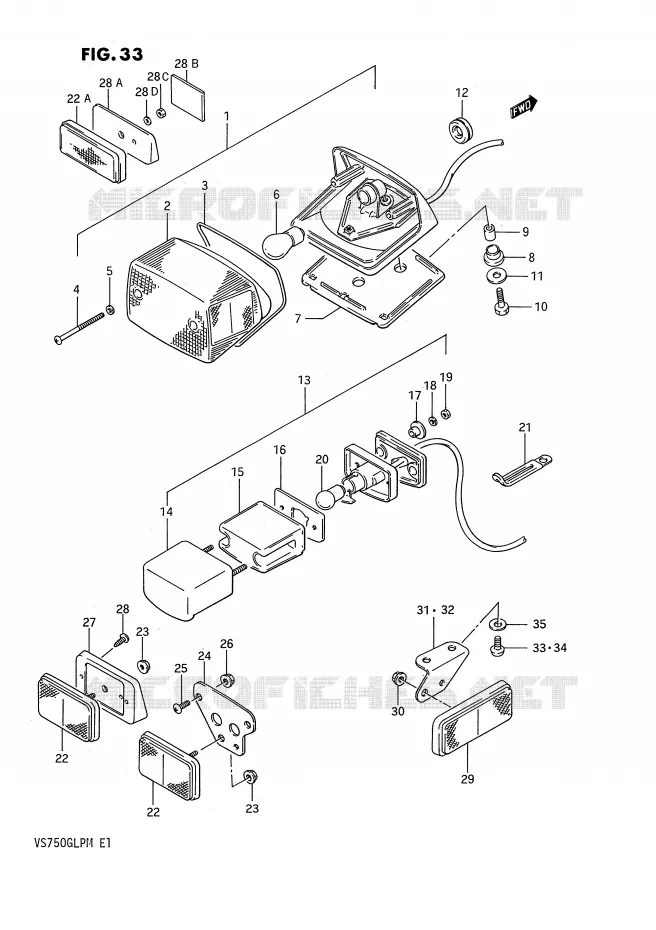

TAIL LIGHT (EXCEPT : MODEL F,MODEL K / L / M E1,E24) FOR SUZUKI INTRUDER 750 1987

WIRING HARNESS

LAMP ASSY, REAR COMBINATION

35710-38A20-000 3571038A20000

Not available

LENS

35712-38A20-000 3571238A20000

Not available

GASKET

35713-38A00-000

35713-31D00-000

$19,97

Unit Price

SCREW

35723-44130-000 3572344130000

$3,97

Unit Price

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

DISCONTINUE
CUSHION

35765-38A00-000 3576538A00000

Not available

CUSHION

35764-26470-000 3576426470000

$4,97

Unit Price

SPACER

35766-37190-000 3576637190000

$3,97

Unit Price

BOLT

01107-06256-000

01500-0625B-000

$4,97

Unit Price

WASHER(6.5X20X1.6)

09160-06020-000

09160-06066-000

$3,97

Unit Price

GROMMET

09308-09013-000 0930809013000

Not available

LAMP ASSY, LICENCE

35910-38A21-000 3591038A21000

Not available

DISCONTINUE
COVER, LICENSE LAMP

35917-38A20-000 3591738A20000

Not available

LENS

35912-38A20-000 3591238A20000

Not available

GASKET, LICENSE LAMP
GASKET

35913-38A30-000 3591338A30000

$4,97

Unit Price

DISCONTINUE
SPACER

35766-38A30-000 3576638A30000

Not available

WASHER, LOCK

08321-21047-000

08321-0104A-000

$2,97

Unit Price

NUT

08310-11047-000

08310-00047-000

$2,97

Unit Price

09471-12140
..BULB (12V, 5W)

09471-12059-000

Not available

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

REFLEX REFLECTOR ASSY, RR
REFLEX REFLECTOR, REAR

35970-01A00-000 3597001A00000

$109,97

Unit Price

22A

REFLEX REFLECTOR ASSY, RR
REFLEX REFLECTOR, REAR

35970-38B00-000 3597038B00000

$33,97

Unit Price

NUT

08316-16056-000

08316-16053-000

$4,97

Unit Price

BRACKET

35974-38A01-000 3597438A01000

Not available

SCREW

02142-05104-000

02142-0510A-000

$2,97

Unit Price

NUT

08316-16056-000

08316-16053-000

$4,97

Unit Price

SPACER

35977-38A00-000 3597738A00000

Not available

SCREW

03541-04126-000

03541-04123-000

$2,97

Unit Price

28B

COVER, HARNESS

36920-06400-000

36920-06401-000

$5,97

Unit Price

28D

WASHER

08322-21056-000

08322-0105B-000

$3,97

Unit Price

28A

DISCONTINUE

35977-38B00-000

Not available

28C

08310-0005A

08310-22056-000

Not available

REFLEX REFLECTOR, FR SIDE
REFLEX REFLECTOR, REAR SIDE

35950-43431-000 3595043431000

$20,97

Unit Price

NUT

08316-16056-000

08316-16053-000

$4,97

Unit Price

DISCONTINUE
BRACKET, RH

35974-38A20-000 3597438A20000

Not available

DISCONTINUE
BRACKET, LH

35975-38A20-000 3597538A20000

Not available

SCREW

02112-06087-000 0211206087000

$2,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$3,97

Unit Price

WASHER, 6.5X14X1.6

09160-06031-000

09160-06125-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
