SWITCHES (MODEL F / G / H / J) REFER TO FIG.56A (I-10) FOR MODEL K/L/M

SWITCHES (MODEL K / L / M) FOR SUZUKI INTRUDER 750 1987

* CATALOG PREFACE *

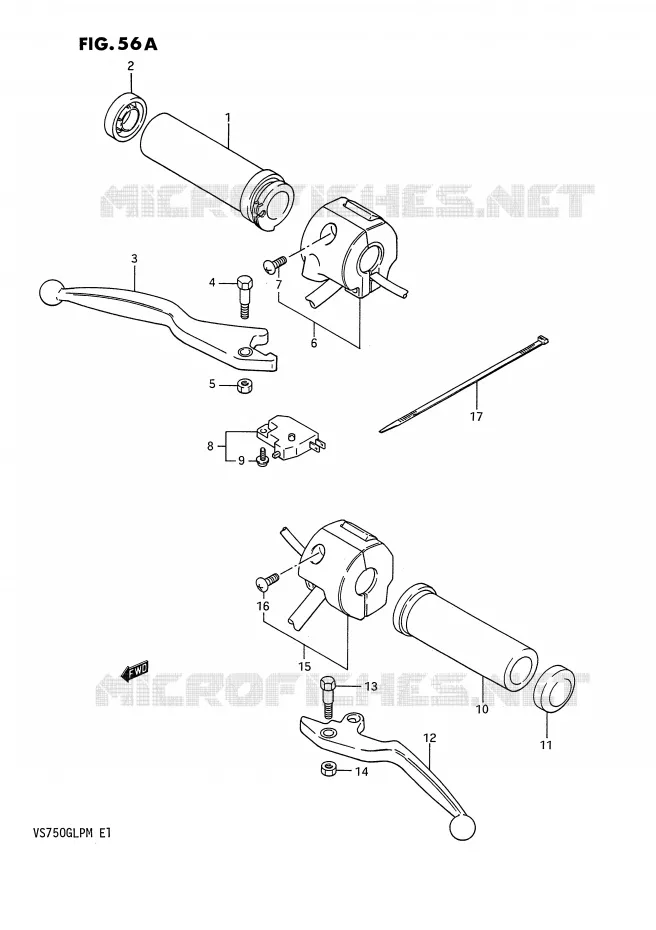

SWITCHES (MODEL K/L/M) Suzuki MOTO 750 INTRUDER 1987 VS750GLPH(E1)
1
DISCONTINUE
GRIP, THROTTLE

57110-38A02-000   5711038A02000

5711038A02000
Not available
2
CAP, GRIP END
CAP

57216-38A00-000   5721638A00000

5721638A00000

Unit Price

3
LEVER, BRAKE

57420-24B00-000  

57420-24B01-000
 5742024B00000

Unit Price

4
BOLT, LEVER SET

57431-38A00-000  

57431-38A10-000
 5743138A00000

Unit Price

5
NUT

08319-21068-000  

08319-2106A-000
 0831921068000

Unit Price

6
SWITCH ASSY, HANDLE RH (FLAT TYPE)

37200-39A60-000   3720039A60000

3720039A60000
Not available
6
SWITCH ASSY, HANDLE RH (PULL BACK TYPE)

37200-39A80-000   3720039A80000

3720039A80000
Not available
7
SCREW

37391-38A00-000  

02112-05167-000
 3739138A00000

Unit Price

8
SWITCH ASSY, STOP

57460-17C00-000  

57460-14J02-000
 5746017C00000

Unit Price

9
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

10
DISCONTINUE
GRIP, LH

57210-38A02-000   5721038A02000

5721038A02000
Not available
11
CAP, GRIP END
CAP

57216-38A00-000   5721638A00000

5721638A00000

Unit Price

12
LEVER, CLUTCH

57620-38A00-000  

57621-38A02-000
 5762038A00000

Unit Price

13
BOLT, LEVER SET

57431-38A00-000  

57431-38A10-000
 5743138A00000

Unit Price

14
NUT

08319-21068-000  

08319-2106A-000
 0831921068000

Unit Price

15
SWITCH ASSY, HANDLE LH (FLAT TYPE)

37400-39A70-000   3740039A70000

3740039A70000
Not available
15
SWITCH ASSY, HANDLE LH (PULL BACK TYPE)

37400-39A90-000   3740039A90000

3740039A90000
Not available
16
SCREW

37391-38A00-000  

02112-05167-000
 3739138A00000

Unit Price

17
CLAMP

09407-20401-000  

09407-25402-000
 0940720401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
