ELECTRICAL (MODEL K) REFER TO FIG.18A(C-11) FOR MODEL M

ELECTRICAL (MODEL M) FOR SUZUKI FB 80 1991

SPEEDOMETER

Item numbers

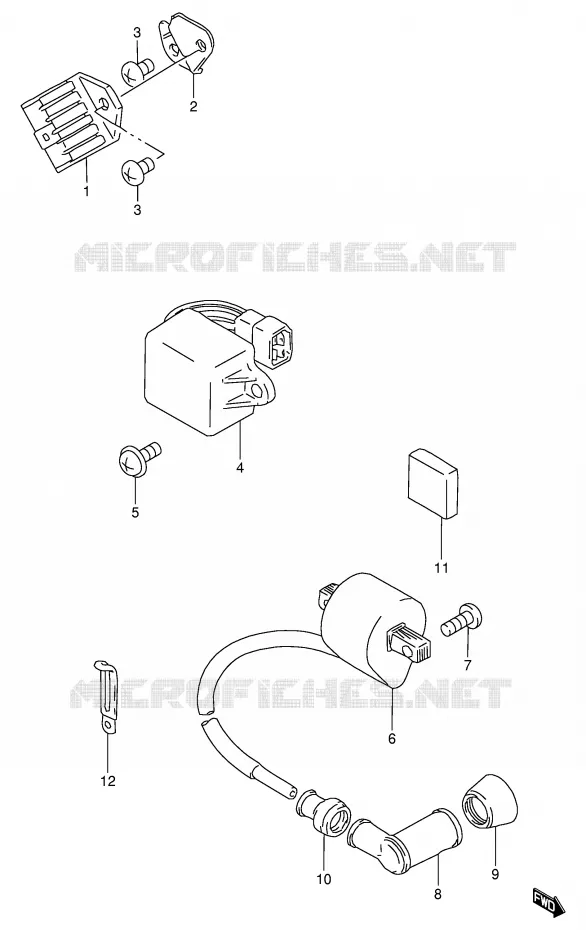

ELECTRICAL (MODEL M) Suzuki SCOOTER 80 FB 1991 FB80M(E1)
1
2
3
3
4
5
6
7
8
9
10
11
12
1
RECTIFIER ASSY

32800-40D00-000   3280040D00000

3280040D00000
Not available
2
BRACKET, RECTIFIER

32831-09400-000   3283109400000

3283109400000
Not available
3
SCREW

02112-06126-000  

02112-0612B-000
 0211206126000

Unit Price

4
CDI UNIT

32900-02A10-000   3290002A10000

3290002A10000
Not available
5
SCREW

02112-16126-000  

02142-06123-000
 0211216126000

Unit Price

6
COIL ASSY, IGNITION

33410-09D00-000   3341009D00000

3341009D00000
Not available
7
SCREW

02112-06166-000  

02112-0616A-000
 0211206166000

Unit Price

8
SPARK PLUG CAP

33510-22010-000   3351022010000

3351022010000
Not available
9
SEAL, SPARK PLUG

33541-24510-000  

33541-47D00-000
 3354124510000

Unit Price

10
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

11
DISCONTINUE
CUSHION, IGNITION COIL

33652-09400-000   3365209400000

3365209400000
Not available
12
CLAMP(L:65)

09404-06403-000  

09404-06039-000
 0940406403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (MODEL M) of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 80 FB 1991
