Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI FB 80 1991

CRANKSHAFT

Item numbers

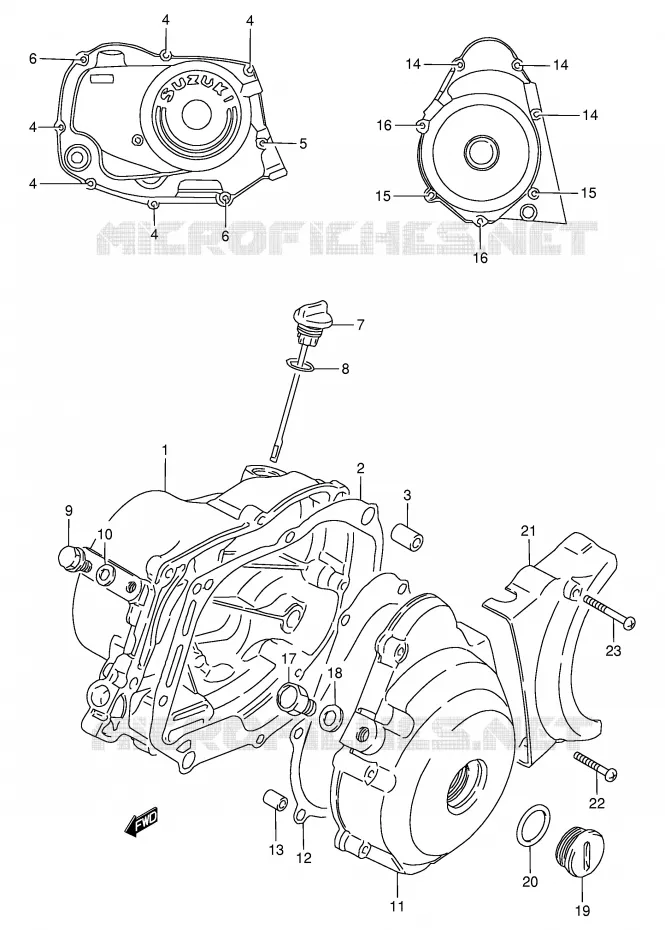

CRANKCASE COVER Suzuki SCOOTER 80 FB 1991 FB80M(E1)
1
2
3
4
4
4
4
4
5
6
6
7
8
9
10
11
12
13
14
14
14
15
15
16
16
17
18
19
20
21
22
23
1
COVER, CLUTCH

11340-02A10-000   1134002A10000

1134002A10000
Not available
2
DISCONTINUED

11482-09403-000   1148209403000

1148209403000
Not available
3
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

4
SCREW

02112-06258-000  

02112-0625A-000
 0211206258000

Unit Price

5
SCREW
SCREW

02112-06357-000   0211206357000

0211206357000

Unit Price

6
SCREW

02112-06508-000  

02112-06507-000
 0211206508000

Unit Price

7
GAUGE, OIL LEVEL

11971-09401-000   1197109401000

1197109401000
Not available
8
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

9
BOLT

01107-08127-000  

01500-08127-000
 0110708127000

Unit Price

10
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

11
COVER, MAGNETO

11351-09420-000   1135109420000

1135109420000
Not available
12
GASKET, MAGNETO COVER (ASB)

11483-09403-000   1148309403000

1148309403000
Not available
13
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

14
SCREW

02112-06308-000  

02112-06307-000
 0211206308000

Unit Price

15
SCREW 6X40<br />SCREW
SCREW 6X40
SCREW

02112-06407-000   0211206407000

0211206407000

Unit Price

16
SCREW

02112-06508-000  

02112-06507-000
 0211206508000

Unit Price

17
PLUG, T.D.C.

09247-12102-000  

09247-12104-000
 0924712102000

Unit Price

18
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
19
DISCONTINUED

09259-26003-000   0925926003000

0925926003000
Not available
20
O-RING,CRK HOLE PLUG<br />O RING
O-RING, CRK HOLE PLUG
O RING

09280-22008-000   0928022008000

0928022008000

Unit Price

21
COVER, ENGINE SPROCKET

11360-09420-000   1136009420000

1136009420000
Not available
22
SCREW

02112-06308-000  

02112-06307-000
 0211206308000

Unit Price

23
SCREW,6X45<br />SCREW
SCREW, 6X45
SCREW

02112-06457-000   0211206457000

0211206457000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 80 FB 1991
