CAM SHAFT / VALVE

TIMING FOR SUZUKI FB 80 1991

CARBURETOR

Item numbers

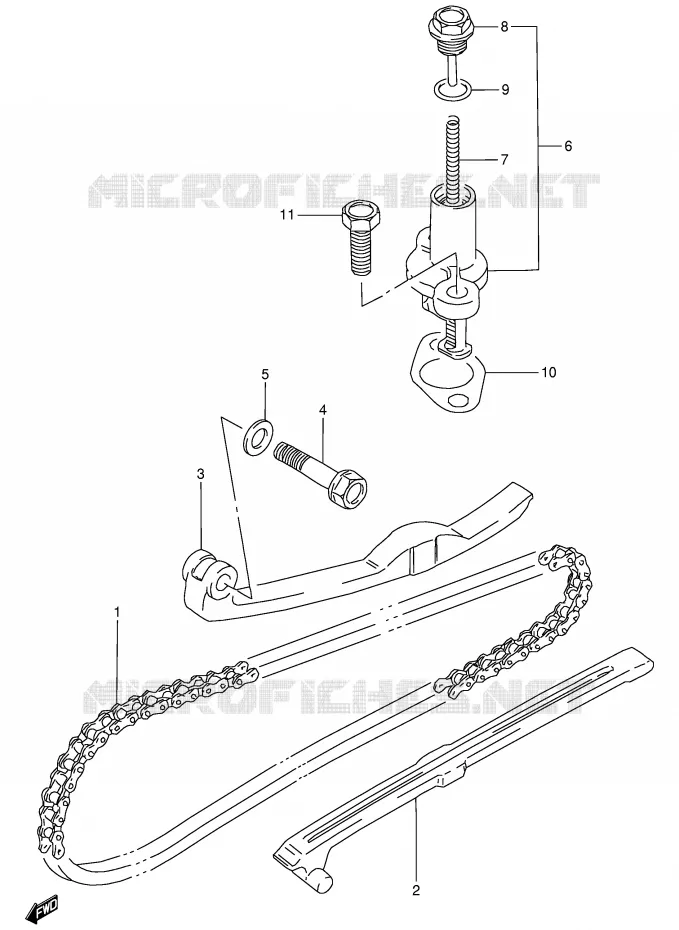

TIMING Suzuki SCOOTER 80 FB 1991 FB80M(E1)
1
2
3
4
5
6
7
8
9
10
11
1
CHAIN, CAM SHAFT DRIVE

12760-02A00-000   1276002A00000

1276002A00000

Unit Price

2
GUIDE, CAM CHAIN

12771-09405-000   1277109405000

1277109405000
Not available
3
TENSIONER, CAM CHAIN

12811-09403-000   1281109403000

1281109403000

Unit Price

4
BOLT, CAM CHAIN TENSIONER

12812-09400-000   1281209400000

1281209400000
Not available
5
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

6
ADJUSTER ASSY, TENSIONER

12830-02A00-000   1283002A00000

1283002A00000

Unit Price

7
SPRING

12833-02A00-000   1283302A00000

1283302A00000

Unit Price

8
PLUG, ADJUSTER
PLUG, ADJUSTER

12834-02A00-000   1283402A00000

1283402A00000

Unit Price

9
O RING
O RING

12832-02A00-000   1283202A00000

1283202A00000

Unit Price

10
GASKET, TENSIONER ADJUSTER

12837-32400-000  

12837-32410-000
 1283732400000

Unit Price

11
BOLT,6X20<br />BOLT, STARTING MOTOR (6X20)
BOLT, 6X20
BOLT, STARTING MOTOR (6X20)

09128-06006-000   0912806006000

0912806006000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 80 FB 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 FB 1991

Select your Suzuki 1991 model

80 FB 1991 FB80M(E1)

Suzuki FB

Displacement: 80 cc
Year: 1991
Model code FB80M(E1)
