FRONT FORK

FRONT SHOCK ABSORBER FOR SUZUKI FB 80 1991

FRONT WHEEL

Item numbers

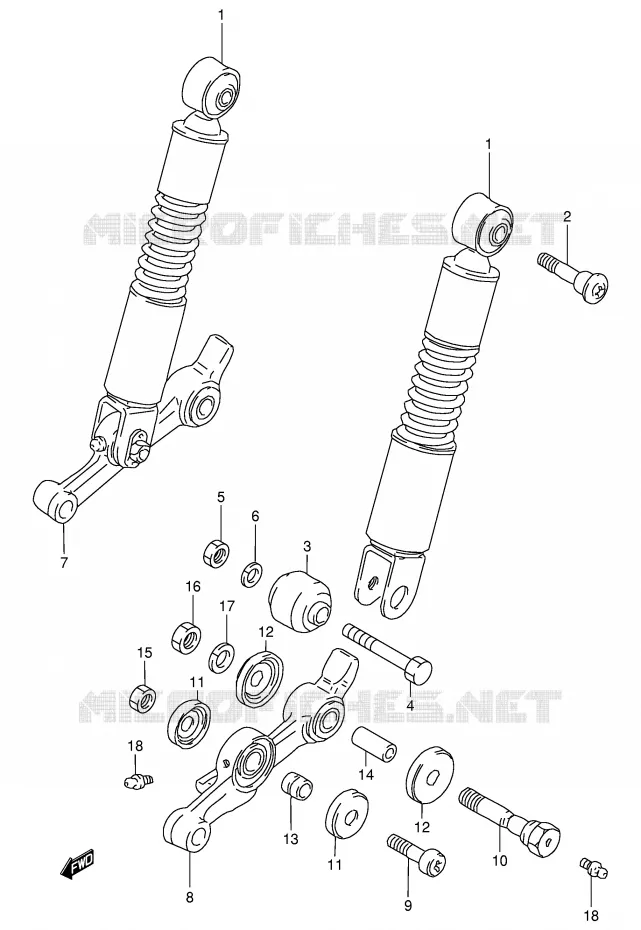

FRONT SHOCK ABSORBER Suzuki SCOOTER 80 FB 1991 FB80M(E1)
1
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
18
1
ABSORBER ASSY, FRONT SHOCK

52100-09401-000   5210009401000

5210009401000
Not available
2
SCREW

09139-08003-000   0913908003000

0913908003000
Not available
3
STOP, FRONT BRAKE

54350-190A0-000   54350190A0000

54350190A0000
Not available
4
DISCONTINUE

09100-08002-000  

0910008002000
Not available
5
NUT

08310-22088-000  

08310-00087-000
 0831022088000

Unit Price

6
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

7
ARM, FRONT SUSPENSION RH

52410-09401-000   5241009401000

5241009401000
Not available
8
ARM, FRONT SUSPENSION LH

52420-09401-000   5242009401000

5242009401000
Not available
9
SCREW

09130-08001-000   0913008001000

0913008001000
Not available
10
BOLT, SUSPENSION ARM REAR

52407-35000-000   5240735000000

5240735000000
Not available
11
DISCONTINUE
COVER, SUSPENSION CENTER

52451-09401-000  

5245109401000
Not available
12
DISCONTINUE
COVER, SUSPENSION REAR

52452-09401-000  

5245209401000
Not available
13
SPACER (8X12X12.5)

09180-08074-000   0918008074000

0918008074000
Not available
14
BUSHING

09319-10002-000   0931910002000

0931910002000
Not available
15
NUT

08310-22088-000  

08310-00087-000
 0831022088000

Unit Price

16
NUT

08310-12108-000  

08310-00107-000
 0831012108000

Unit Price

17
WASHER

08321-21107-000  

08321-01107-000
 0832121107000

Unit Price

18
NIPPLE
NIPPLE

08351-11009-000   0835111009000

0835111009000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT SHOCK ABSORBER of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 80 FB 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 FB 1991

Select your Suzuki 1991 model

80 FB 1991 FB80M(E1)

Suzuki FB

Displacement: 80 cc
Year: 1991
Model code FB80M(E1)
