Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

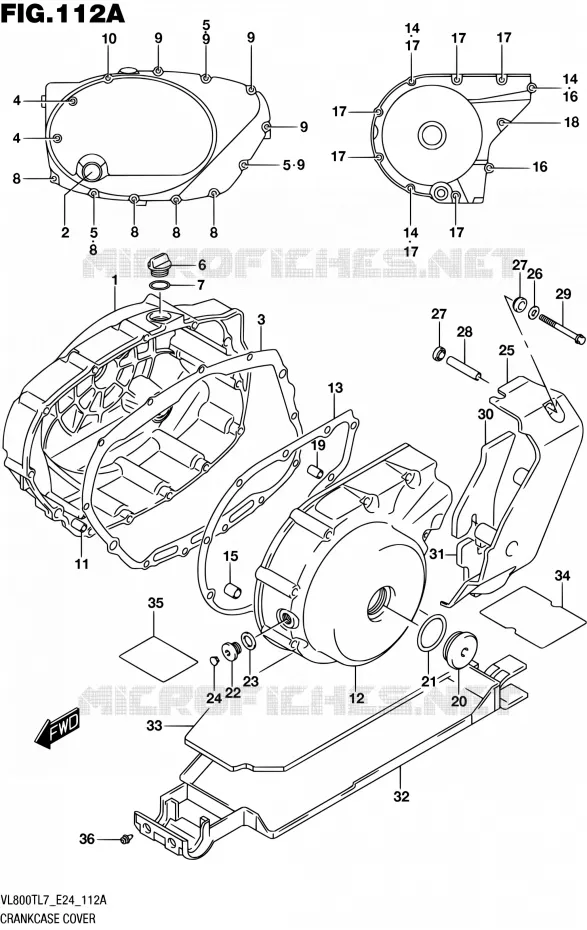

CASING FOR SUZUKI BOULEVARD 800 2017

CRANKSHAFT

Item numbers

COVER, CLUTCH

11340-41F00-000 1134041F00000

$388,97

Unit Price

LENS, OIL LEVEL CHECK
.LENS, OIL LEVEL

11971-33210-000 1197133210000

$17,97

Unit Price

GASKET, CLUTCH COVER

11482-41F00-000 1148241F00000

$18,97

Unit Price

BOLT (6X105)

09103-06270-000 0910306270000

$5,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000 1197125D00000

$6,97

Unit Price

O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000 0910306213000

$4,97

Unit Price

BOLT
BOLT (6X50)

09103-06238-000 0910306238000

$4,97

Unit Price

BOLT (6X85)

09103-06226-000 0910306226000

$5,97

Unit Price

04211-09189-000 0421109189000

$2,97

Unit Price

COVER, GENERATOR

11351-41F10-000 1135141F10000

$470,97

Unit Price

GASKET, GENERATOR COVER

11483-41F00-000 1148341F00000

$19,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

PIN, CRANKCASE
PIN (8.4X11X20)

09206-11007-000 0920611007000

$3,97

Unit Price

BOLT, SPROCKET, COV L4
BOLT (6X40)

09103-06215-000 0910306215000

$4,97

Unit Price

BOLT, SPROCKET, COV L5
BOLT (6X55)

09103-06216-000 0910306216000

$4,97

Unit Price

BOLT (6X85)

09103-06226-000 0910306226000

$5,97

Unit Price

04211-09189-000 0421109189000

$2,97

Unit Price

PLUG, CHROME
PLUG (36X10)

09259-36008-000 0925936008000

$26,97

Unit Price

O-RING, CRANK SHAFT
O RING (D:3.1, ID:32.7)

09280-33004-000 0928033004000

$3,97

Unit Price

PLUG, CYL HEAD
PLUG

09248-14011-000

Not available

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

CAP (OD:12)

09250-08012-000 0925008012000

$2,97

Unit Price

COVER, SECONDARY DRIVE UNIT
COVER, SECONDARY DRIVE

11361-41F00-000 1136141F00000

$209,97

Unit Price

WASHER (6.5X14X1.6)

09160-06125-000 0916006125000

$3,97

Unit Price

WASHER
WASHER (8.7X16X5)

09161-09005-000 0916109005000

$3,97

Unit Price

SPACER (6.5X9X41.3)

09180-06280-000 0918006280000

$7,97

Unit Price

BOLT, SPROCKET, COV L5
BOLT (6X55)

09103-06216-000 0910306216000

$4,97

Unit Price

CUSHION, SEC DR UNIT COVER NO.1
CUSHION, SEC DRIVE COVER NO.1

11362-39G00-000 1136239G00000

$13,97

Unit Price

CUSHION, SEC DR UNIT COVER NO.2
CUSHION, SEC DRIVE COVER NO.2

11363-39G00-000 1136339G00000

$9,97

Unit Price

COVER, ENGINE UNDER

11381-39G00-000 1138139G00000

Not available

CUSHION

11382-39G00-000 1138239G00000

Not available

PROTECTOR, UNDER COVER NO.1

11383-39G00-000 1138339G00000

Not available

PROTECTOR, UNDER COVER NO.2

11384-39G00-000 1138439G00000

Not available

CLIP (BLACK)

09409-08313-5PK 09409083135PK

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
