Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI BOULEVARD 800 2017

TRANSMISSION

Item numbers

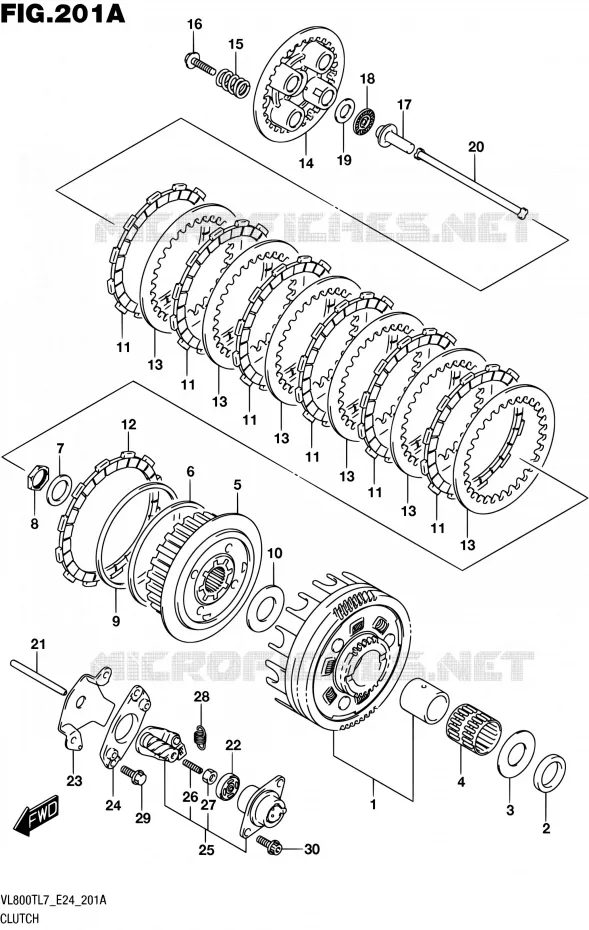

CLUTCH Suzuki MOTO 800 BOULEVARD 2017 VL800T L7 (E24)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
11
11
12
13
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
GEAR ASSY, PRIMARY(NT:71)
GEAR, PRIMARY DRIVEN (NT:71)

21200-38840-000   2120038840000

2120038840000

Unit Price

2
SPACER (25X38X6.5)

09180-25077-000   0918025077000

0918025077000

Unit Price

3
WASHER SLEEVE HUB

09160-25055-000  

09160-25056-000
 0916025055000

Unit Price

4
ROLLER BEARING 35X40<br />BEARING (35X40X35.8)
ROLLER BEARING 35X40
BEARING (35X40X35.8)

09263-35017-000   0926335017000

0926335017000

Unit Price

5
HUB, CLUTCH SLEEVE
HUB, SLEEVE

21410-41F00-000   2141041F00000

2141041F00000

Unit Price

6
SEAT, WAVE WASHER(T:1.4)
SEAT, WAVE WASHER

21471-37400-000   2147137400000

2147137400000

Unit Price

7
WASHER
WASHER

09164-22007-000   0916422007000

0916422007000

Unit Price

8
NUT
NUT

09140-22008-000   0914022008000

0914022008000

Unit Price

9
WAVE WASHER CL SLV
WASHER

09164-00004-000   0916400004000

0916400004000

Unit Price

10
WASHER SLEEVE HUB

09160-25055-000  

09160-25056-000
 0916025055000

Unit Price

11
PLATE, CLUTCH DRIVE

21441-37400-000  

21441-37430-000
 2144137400000

Unit Price

12
PLATE,CLUTCH DRIVE(T:3.5)<br />PLATE, CLUTCH DRIVE NO.2 (T:3.5)
PLATE, CLUTCH DRIVE(T:3.5)
PLATE, CLUTCH DRIVE NO.2 (T:3.5)

21442-37401-000   2144237401000

2144237401000

Unit Price

13
PLATE, CLUTCH DRIVEN(T:1.6)
PLATE, DRIVEN (T:1.6)

21451-14A00-000   2145114A00000

2145114A00000

Unit Price

14
DISC,CLUTCH PRESSURE<br />DISC, PRESSURE
DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-27A00-000   2146227A00000

2146227A00000

Unit Price

15
SPRING, CLUTCH

21413-41F00-000   2141341F00000

2141341F00000

Unit Price

16
BOLT (6X30)

09116-06203-000   0911606203000

0911606203000

Unit Price

17
PIECE,CLUTCH PUSH<br />PIECE, PUSH
PIECE, CLUTCH PUSH
PIECE, PUSH

23121-31E00-000   2312131E00000

2312131E00000

Unit Price

18
BEARING (15X28X2)
BEARING (15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

19
WASHER<br />WASHER (15.5X28X1)
WASHER
WASHER (15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

20
ROD,CLUTCH<br />ROD, PUSH RH
ROD, CLUTCH
ROD, PUSH RH

23110-27A00-000   2311027A00000

2311027A00000

Unit Price

21
ROD, CLUTCH PUSH, L
ROD, PUSH LH

23111-45C00-000   2311145C00000

2311145C00000

Unit Price

22
SEAL, OIL
OIL SEAL (6X34X10.5)

09283-06010-000   0928306010000

0928306010000

Unit Price

23
RETAINER, CL PUSH ROD OIL SEAL
RETAINER

23117-45C00-000   2311745C00000

2311745C00000

Unit Price

24
PLATE, CLUTCH RELEASE SCREW
BRACKET, RELEASE SCREW

23130-45C00-000   2313045C00000

2313045C00000

Unit Price

25
SCREW ASSY, CLUTCH RELEASE

23200-41F00-000   2320041F00000

2320041F00000

Unit Price

26
SCREW<br />.SCREW (6X25)
SCREW
.SCREW (6X25)

09134-06010-000   0913406010000

0913406010000

Unit Price

27
.NUT
.NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

28
SPRING

09443-09050-000   0944309050000

0944309050000

Unit Price

29
BOLT

07120-0620A-000   071200620A000

071200620A000

Unit Price

30
BOLT

07120-0616A-000   071200616A000

071200616A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
