REAR BRAKE

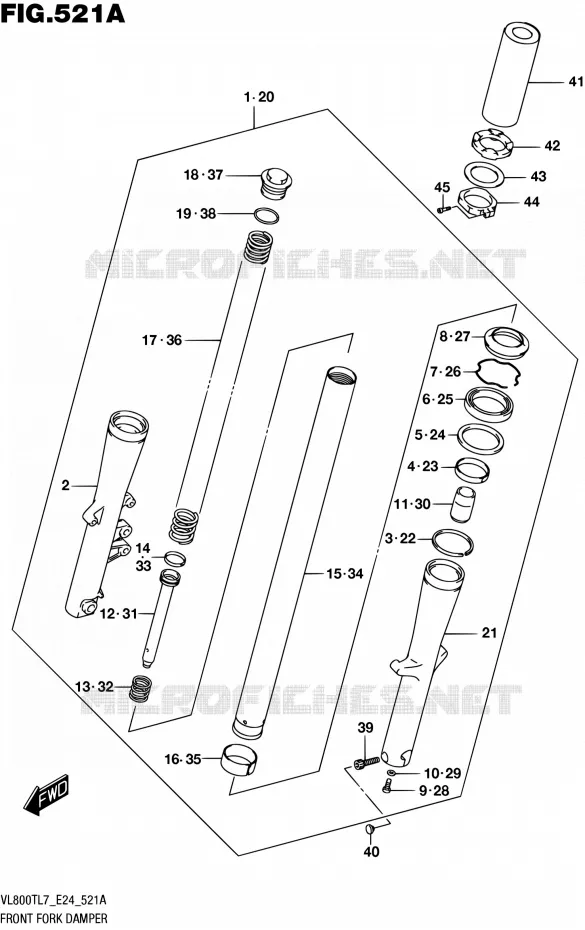

FRONT FORK FOR SUZUKI BOULEVARD 800 2017

STEERING COLUMN

Item numbers

51103-41F41
DAMPER ASSY, FRONT FORK RH

51103-41F40-000 5110341F40000

Not available

TUBE, OUTER, R
.TUBE, OUTER RH

51131-41F20-000 5113141F20000

$461,97

Unit Price

.GUIDE, CASE

51469-41F21-000 5146941F21000

$15,97

Unit Price

.BUSH, GUIDE

51152-11D60-000 5115211D60000

$17,97

Unit Price

.SPACER, SEAL

51168-38B00-000 5116838B00000

$8,97

Unit Price

.SEAL, OIL

51153-08D00-000 5115308D00000

$20,97

Unit Price

CIRCLIP, FORK OIL SEAL
.RING

51556-38B00-000 5155638B00000

$10,97

Unit Price

.SEAL, DUST

51571-47D50-000 5157147D50000

$24,97

Unit Price

.BOLT

51147-06F10-000 5114706F10000

$7,97

Unit Price

.GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

.PIECE, OIL LOCK

51195-10F00-000 5119510F00000

$29,97

Unit Price

.SEAT, PIPE

51146-10F00-000 5114610F00000

$34,97

Unit Price

.SPRING, REBOUND

51177-10F00-000 5117710F00000

$8,97

Unit Price

RING, PISTON
.RING

51196-47D00-000 5119647D00000

$11,97

Unit Price

.TUBE, INNER

51110-41F40-000 5111041F40000

$329,97

Unit Price

.BUSH, SLIDE

51121-42E00-000 5112142E00000

$20,97

Unit Price

SPRING, FR
.SPRING, FRONT

51171-41F40-000 5117141F40000

$95,97

Unit Price

.BOLT, FORK

51189-47D50-000 5118947D50000

$49,97

Unit Price

.O RING

51117-12C00-000 5111712C00000

$6,97

Unit Price

51104-41F41
DAMPER ASSY, FRONT FORK LH

51104-41F40-000 5110441F40000

Not available

TUBE, OUTER, L
.TUBE, OUTER LH

51141-41F20-000 5114141F20000

$461,97

Unit Price

.GUIDE, CASE

51469-41F21-000 5146941F21000

$15,97

Unit Price

.BUSH, GUIDE

51152-11D60-000 5115211D60000

$17,97

Unit Price

.SPACER, SEAL

51168-38B00-000 5116838B00000

$8,97

Unit Price

.SEAL, OIL

51153-08D00-000 5115308D00000

$20,97

Unit Price

CIRCLIP, FORK OIL SEAL
.RING

51556-38B00-000 5155638B00000

$10,97

Unit Price

.SEAL, DUST

51571-47D50-000 5157147D50000

$24,97

Unit Price

.BOLT

51147-06F10-000 5114706F10000

$7,97

Unit Price

.GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

.PIECE, OIL LOCK

51195-10F00-000 5119510F00000

$29,97

Unit Price

.SEAT, PIPE

51146-10F00-000 5114610F00000

$34,97

Unit Price

.SPRING, REBOUND

51177-10F00-000 5117710F00000

$8,97

Unit Price

RING, PISTON
.RING

51196-47D00-000 5119647D00000

$11,97

Unit Price

.TUBE, INNER

51110-41F40-000 5111041F40000

$329,97

Unit Price

.BUSH, SLIDE

51121-42E00-000 5112142E00000

$20,97

Unit Price

SPRING, FR
.SPRING, FRONT

51171-41F40-000 5117141F40000

$95,97

Unit Price

.BOLT, FORK

51189-47D50-000 5118947D50000

$49,97

Unit Price

.O RING

51117-12C00-000 5111712C00000

$6,97

Unit Price

.BOLT

07130-10357-000 0713010357000

$6,97

Unit Price

CAP
CAP (OD:12)

09250-08014-000 0925008014000

$4,97

Unit Price

CASE, UNDER

51464-41F21-000 5146441F21000

$180,97

Unit Price

SEAT, RUBBER

51468-10F00-000 5146810F00000

$26,97

Unit Price

WASHER

51467-10F70-000 5146710F70000

$11,97

Unit Price

SPACER

51465-41F20-000 5146541F20000

$39,97

Unit Price

BOLT

51466-10F00-000 5146610F00000

$7,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
