ELECTRICAL (MODEL V) REFER TO FIG.23A(F-5) FOR MODEL W/X/Y/K1

ELECTRICAL (MODEL W / X / Y / K1) FOR SUZUKI TL-S 1000 2000

BATTERY

Item numbers

RELAY ASSY, STARTING MOTOR

31800-21E20-000

31800-21E30-000

$91,97

Unit Price

COVER

31861-21E20-000

31861-47E00-000

$20,97

Unit Price

FUSE, 30A

09481-30101-000 0948130101000

$3,97

Unit Price

SCREW(6X8)
BOLT

09128-06013-000 0912806013000

$2,97

Unit Price

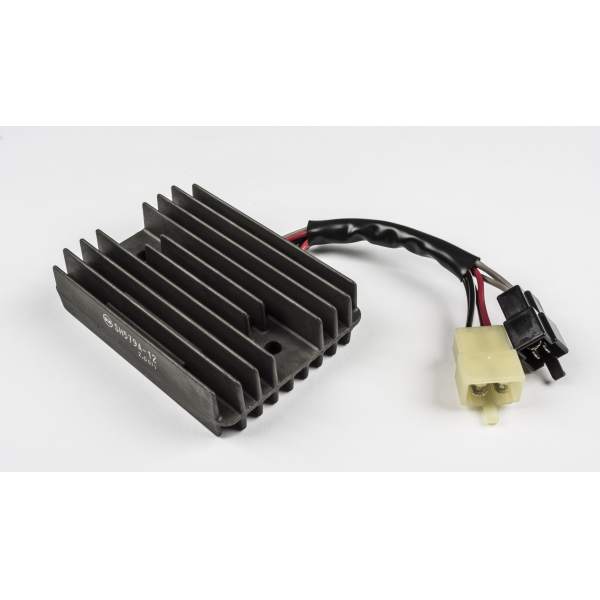

RECTIFIER ASSY

32800-02F00-000 3280002F00000

$501,97

Unit Price

DISCONTINUE
BRACKET, RECT FTG

32831-02F00-000 3283102F00000

Not available

SCREW, RECTIFIER

09136-06093-000 0913606093000

Not available

WASHER(6.5X18X1.6)
WASHER, RECT FTG BRACKET

09160-06084-000 0916006084000

$3,97

Unit Price

SPACER(6.5X9X6.7)
SPACER, RECT FTG BRACKET

09180-06258-000 0918006258000

$3,97

Unit Price

CUSHION, RECT FTG

09320-09036-000 0932009036000

Not available

BOLT

01560-06253-000 0156006253000

Not available

DISCONTINUE
SENSOR ASSY, CAM POSITION

32160-02F00-000 3216002F00000

Not available

PACKING

32161-02F00-000 3216102F00000

$16,97

Unit Price

SCREW

02112-06163-000

02112-0616A-000

$2,97

Unit Price

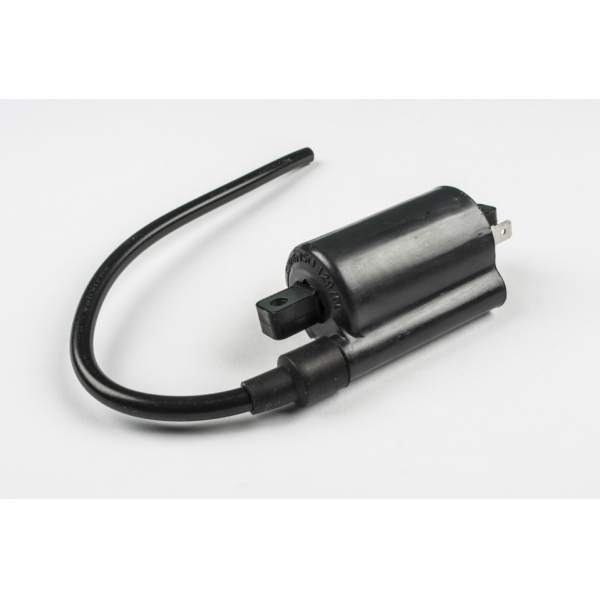

COIL ASSY, IGNITION

33410-48E00-000 3341048E00000

$216,97

Unit Price

COIL ASSY, IGNITION

33420-38A11-000 3342038A11000

$155,97

Unit Price

BOLT

02162-05203-000

02162-0520B-000

$3,97

Unit Price

CAP, SPARK PLUG
CAP ASSY, SPARK PLUG

33510-11D00-000 3351011D00000

$58,97

Unit Price

SEAL, SPARK PLUG CAP

33541-23E01-000 3354123E01000

$11,97

Unit Price

SEAL, HIGH TENSION CORD

33542-38B00-000 3354238B00000

$6,97

Unit Price

COVER, SPARK PLUG CAP

33543-02F00-000 3354302F00000

$34,97

Unit Price

CONTROL UNIT, EPI

32920-02F60-000 3292002F60000

Not available

CONTROL UNIT, EPI

32920-02F70-000 3292002F70000

Not available

CONTROL UNIT, EPI

32920-02F90-000 3292002F90000

Not available

CONTROL UNIT, EPI

32920-02FK0-000 3292002FK0000

Not available

BAND, BATTERY
BAND, EPI CONT

33651-12910-000 3365112910000

$10,97

Unit Price

SENSOR ASSY, FUEL CUT

33960-02F00-000

33960-02F01-000

$129,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (MODEL W/X/Y/K1) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
