CLUTCH (MODEL X / Y / K1)

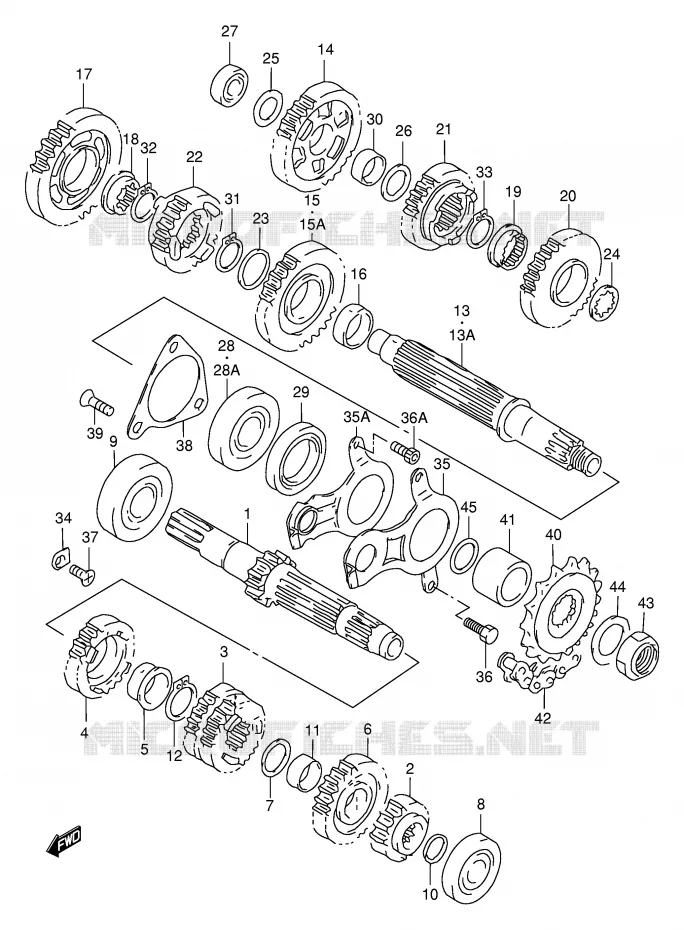

TRANSMISSION (MODEL V / W) FOR SUZUKI TL-S 1000 2000

TRANSMISSION (MODEL X / Y / K1)

Item numbers

DISCONTINUE
SHAFT, COUNTER (NT:12)

24120-02F06-000 2412002F06000

Not available

GEAR, 2ND DRIVE (NT:15)

24221-02F01-000 2422102F01000

$112,97

Unit Price

DISCONTINUE

24231-02F00-000

Not available

GEAR, 5TH DRIVE (NT:23)

24251-02F01-000 2425102F01000

Not available

BUSH, 5TH DRIVE GEAR

24252-02F00-000 2425202F00000

Not available

GEAR, 6TH DRIVE (NT:24)

24261-02F01-000 2426102F01000

Not available

WASHER
WASHER, 6TH

09181-22167-000 0918122167000

$5,97

Unit Price

BEARING

09262-20081-000

09262-20139-000

$53,97

Unit Price

BALL BEARG 25X62X1
BEARING, CENTER SHAFT RH

09262-25073-000 0926225073000

$38,97

Unit Price

O RING D:1.9 ID:16.6
O RING, CENTER SHAFT

09280-17004-000 0928017004000

$4,97

Unit Price

BUSH

09300-22005-000

24312-02F00-000

$36,97

Unit Price

CIRCLIP
CIRCLIP, 5TH DRIVE

09380-27001-000 0938027001000

$3,97

Unit Price

DISCONTINUE
SHAFT, DRIVE

24130-02F02-000 2413002F02000

Not available

13A

DISCONTINUE
SHAFT, DRIVE

24130-02F04-000 2413002F04000

Not available

DISCONTINUE

24311-02F01-000

Not available

GEAR, 2ND DRIVEN(NT:29)

24321-02F01-000

24321-02F11-000

$147,97

Unit Price

15A

GEAR, 2ND DRIVEN(NT:29)

24321-02F02-000

24321-02F11-000

$147,97

Unit Price

BUSH, 2ND DRIVEN GEAR
BUSH, 2ND

24322-02F01-000 2432202F01000

$18,97

Unit Price

DISCONTINUE
GEAR, 3RD DRIVEN (NT:27)

24331-02F01-000

Not available

DISCONTINUE
BUSH, 3RD

24332-17E10-000 2433217E10000

Not available

DISCONTINUE
BUSH, 4TH

24332-17E10-000 2433217E10000

Not available

GEAR, 4TH DRIVEN (NT:27)

24341-02F00-000 2434102F00000

Not available

DISCONTINUE
GEAR, 5TH DRIVEN (NT:25)

24351-02F03-000 2435102F03000

Not available

GEAR, 6TH DRIVEN(NT:24)

24361-02F03-000

24361-02F30-000

$151,97

Unit Price

WASHER(27X36X1)
WASHER, 2ND DRIVEN GEAR

09160-27008-000 0916027008000

$5,97

Unit Price

WASHER, 3RD & 4TH

09167-27002-000 0916727002000

Not available

WASHER
WASHER, 1ST DRIVEN RH

09181-20251-000 0918120251000

$5,97

Unit Price

WASHER
WASHER, 1ST DRIVEN LH

09181-22223-000 0918122223000

$5,97

Unit Price

BEARING
BEARING, DRIVE SHAFT RH

09262-20082-000 0926220082000

$34,97

Unit Price

28A

BEARING(28X68X20)
BEARING, DRIVE SHAFT LH

09262-28040-000 0926228040000

$178,97

Unit Price

DISCONTINUE
BEARING, DRIVE SHAFT LH

09262-28037-000 0926228037000

Not available

SEAL, OIL 38X52X8
SEAL, DRIVE SHAFT

09283-38017-000 0928338017000

$35,97

Unit Price

SEAL, OIL
SEAL, DRIVE SHAFT

09283-38020-000 0928338020000

$65,97

Unit Price

BUSH
BUSH, 1ST DRIVEN

24312-02F00-000 2431202F00000

$36,97

Unit Price

CIRCLIP
CIRCLIP, 2ND

09380-27001-000 0938027001000

$3,97

Unit Price

CIRCLIP
CIRCLIP, 3RD

09380-27001-000 0938027001000

$3,97

Unit Price

CIRCLIP
CIRCLIP, 4TH

09380-27001-000 0938027001000

$3,97

Unit Price

RETAINER
RETAINER, CENTER SHAFT

24741-21A00-000 2474121A00000

$4,97

Unit Price

RETAINER, DRIVE SHAFT OIL SEAL

24751-02F00-000

24751-06G00-000

$16,97

Unit Price

35A

RETAINER, DRIVE SHAFT OIL SEAL

24751-02F01-000

24751-06G00-000

$16,97

Unit Price

BOLT

01500-06123-000

01500-0612A-000

$3,97

Unit Price

36A

BOLT(6X12)

07130-06123-000

09106-06075-000

$3,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

DISCONTINUE
RETAINER, DRIVE SHAFT BRG

24741-02F00-000 2474102F00000

Not available

SCREW
SCREW, DRIVE SHAFT (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

SPROCKET, ENGINE (NT:17)

27510-21A31-000 2751021A31000

$154,97

Unit Price

SPACER, ENGINE SPROCKET

27531-24B12-000

27531-24B13-000

$48,97

Unit Price

DISCONTINUE
SPACER, SPROCKET

27531-24B11-000 2753124B11000

Not available

DISCONTINUE
CHAIN ASSY (RK50GSVZ3, 104L)

27600-24F30-104 2760024F30104

Not available

NUT

09159-20004-000 0915920004000

$26,97

Unit Price

SHIM, T:1.5
WASHER (25X40X1.5)

09181-25268-000 0918125268000

$5,97

Unit Price

O-RING
O RING (D:2.4, ID:23.7)

09280-24010-000 0928024010000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (MODEL V/W) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
