RADIATOR HOSE - EXPANSION TANK

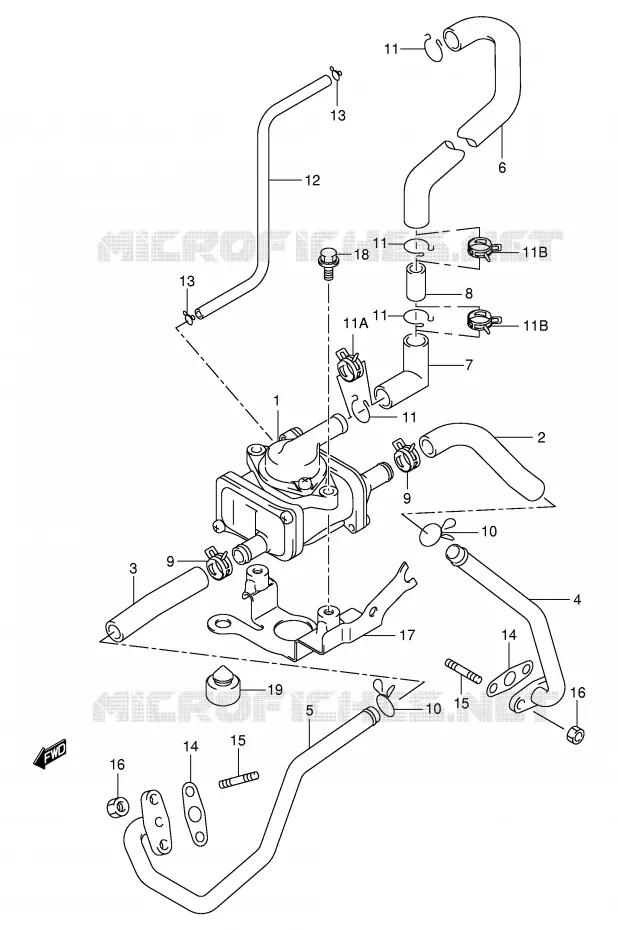

ANTI POLLUTION SYSTEM (MODEL V E18,E39) FOR SUZUKI TL-S 1000 2000

ANTI POLLUTION SYSTEM (MODEL W / X / Y / K1 E18,E22)

Item numbers

DISCONTINUE
VALVE ASSY, 2ND AIR

18450-48E00-000 1845048E00000

Not available

DISCONTINUE
HOSE, 2ND AIR VALVE FRONT

18461-02F00-000 1846102F00000

Not available

DISCONTINUE
HOSE, 2ND AIR VALVE REAR

18471-02F00-000 1847102F00000

Not available

PIPE, 2ND AIR FRONT

18410-02F00-000 1841002F00000

Not available

PIPE, 2ND AIR REAR

18420-02F00-000 1842002F00000

Not available

DISCONTINUE
HOSE, 2ND AIR CLEANER

18711-02F10-000 1871102F10000

Not available

HOSE, 2ND AIR CLEANER JOINT

18712-02F00-000

Not available

JOINT, 2ND AIR CLEANER HOSE

13888-19B00-000 1388819B00000

$10,97

Unit Price

CLIP
CLIP, 2ND AIR VALVE HOSE NO.1

09401-15404-000 0940115404000

$3,97

Unit Price

CLIP
CLIP, 2ND AIR VALVE HOSE NO.2

09401-13409-000 0940113409000

$3,97

Unit Price

11A

CLIP
CLIP, 2ND AIR CLEANER HOSE NO.2

09401-15408-000 0940115408000

$9,97

Unit Price

11B

CLIP
CLIP, 2ND AIR CLEANER HOSE JOINT

09401-14404-000 0940114404000

$3,97

Unit Price

CLIP, 2ND AIR CLEANER HOSE

09401-15401-000 0940115401000

Not available

DISCONTINUE
HOSE, 2ND AIR VALVE VACUUM

09352-40703-600

Not available

CLIP
CLIP, 2ND AIR VACUUM HOSE

09401-06101-000 0940106101000

$3,97

Unit Price

GASKET, 2ND AIR PIPE

18441-45C00-000

18441-45C01-000

$10,97

Unit Price

BOLT, STUD

01421-06163-000

01421-0616A-000

$3,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

BRACKET, 2ND AIR VALVE

18610-02F00-000 1861002F00000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

CENTER STAND STOP
CUSHION

09321-10002-000 0932110002000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ANTI POLLUTION SYSTEM (MODEL V E18,E39) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
