FRONT CYLINDER HEAD (MODEL W / X / Y / K1)

REAR CYLINDER HEAD (MODEL V) FOR SUZUKI TL-S 1000 2000

REAR CYLINDER HEAD (MODEL W / X / Y / K1)

Item numbers

DISCONTINUE

11100-02F00-000

Not available

HEAD ASSY, CYLINDER REAR

11100-02F10-000 1110002F10000

Not available

GUIDE, VALVE

11115-32E70-000 1111532E70000

$34,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000 0910306026000

$2,97

Unit Price

GASKET, CYLINDER HEAD
GASKET

11141-02F01-000 1114102F01000

$70,97

Unit Price

04211-13189-000 0421113189000

$3,97

Unit Price

STUD BOLT L:35
STUD BOLT (8X35)

09108-08143-000 0910808143000

$5,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$4,97

Unit Price

WASHER(10.5X19X2)
WASHER

09160-10082-000 0916010082000

$2,97

Unit Price

BOLT, M10X175
BOLT (10X175)

09103-10276-000 0910310276000

$27,97

Unit Price

BOLT (6X70)

09103-06103-000 0910306103000

$3,97

Unit Price

BOLT, STUD
STUD BOLT (6X30)

09108-06096-000 0910806096000

$3,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

BOLT

07120-06123-000

07120-0612B-000

$5,97

Unit Price

GASKET

09168-06023-000 0916806023000

Not available

CR8E, NGK
SPARK PLUG (NGK, CR8E)

09482-00456-000 0948200456000

$14,45

Unit Price

CR9E, NGK
SPARK PLUG (NGK, CR9E)

09482-00458-000 0948200458000

$5,45

Unit Price

CR8E, NGK
SPARK PLUG (NGK, CR8E)

09482-00456-000 0948200456000

$14,45

Unit Price

CR9E, NGK
SPARK PLUG (NGK, CR9E)

09482-00458-000 0948200458000

$5,45

Unit Price

CR10E, NGK
SPARK PLUG (NGK, CR10E)

09482-00460-000 0948200460000

$14,45

Unit Price

DISCONTINUE
PIPE, INTAKE REAR

13101-02F00-000

Not available

PIPE, INTAKE REAR

13101-02F10-000 1310102F10000

Not available

O-RING, D:2.4, ID:55.6
O RING

09280-55005-000 0928055005000

$9,97

Unit Price

SCREW, 6X16

09120-06010-000

09120-06010-XC0

$5,97

Unit Price

CLAMP

09402-70203-000

09402-70902-000

$8,97

Unit Price

DISCONTINUE
COVER, CYLINDER HEAD

11172-02F02-000 1117202F02000

Not available

GASKET, CYL HEAD COVER NO.1
GASKET

11173-02F00-000 1117302F00000

$35,97

Unit Price

GASKET, CYL HEAD COVER NO.2
GASKET

11178-17E00-000 1117817E00000

$9,97

Unit Price

BOLT, 7X17.5

09106-07009-000

09106-07021-000

$7,97

Unit Price

WASHER

09161-11008-000 0916111008000

$8,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01550-10807-000 0155010807000

Not available

BOLT

01550-10707-000 0155010707000

$7,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

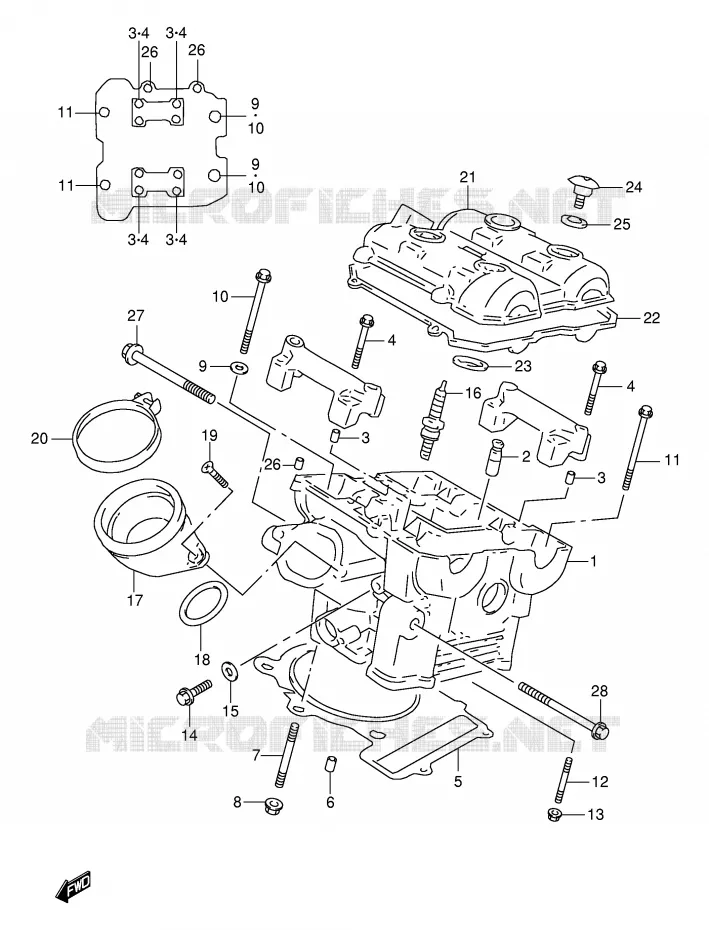

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CYLINDER HEAD (MODEL V) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
