Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI TL-S 1000 2000

STARTER MOTOR CLUTCH

Item numbers

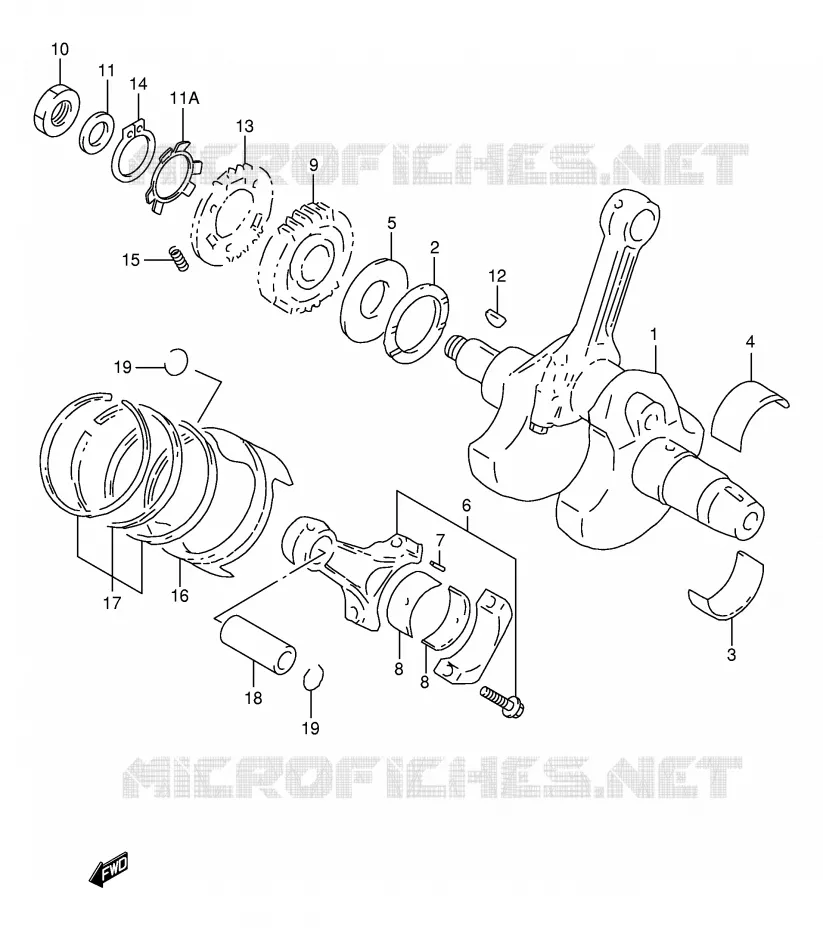

CRANKSHAFT Suzuki MOTO 1000 TL-S 2000 TL1000SY(E2)
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
5
5
6
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
10
11
11A
12
12
13
14
14
15
16
17
17
18
19
19
1
DISCONTINUE
CRANKSHAFT SET

12000-02810-000   1200002810000

1200002810000
Not available
1

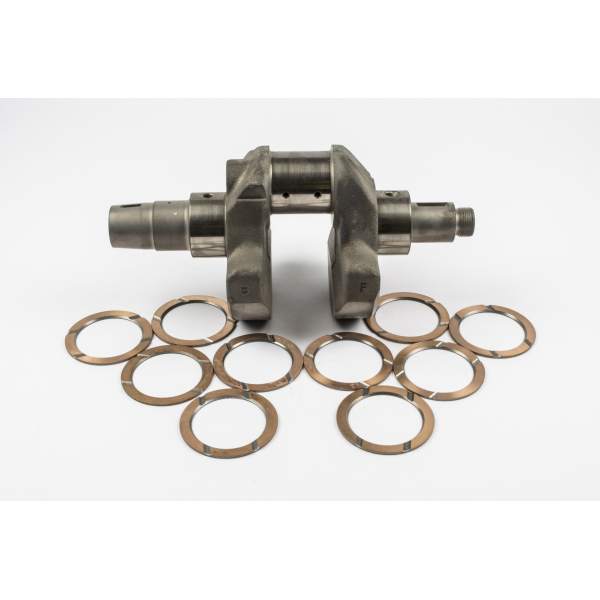

CRANKSHAFT SET
CRANKSHAFT SET

12000-02830-000   1200002830000

1200002830000
Not available
2
WASHER(48.1X64X1.94)<br />WASHER, CRANK THRUST (T:1.94)
WASHER(48.1X64X1.94)
WASHER, CRANK THRUST (T:1.94)

09160-48001-000   0916048001000

0916048001000

Unit Price

2
WASHER(48.1X64X1.96)<br />WASHER, CRANK THRUST (T:1.96)
WASHER(48.1X64X1.96)
WASHER, CRANK THRUST (T:1.96)

09160-48002-000   0916048002000

0916048002000

Unit Price

2
WASHER(48.1X64X1.99)<br />WASHER, CRANK THRUST (T:1.99)
WASHER(48.1X64X1.99)
WASHER, CRANK THRUST (T:1.99)

09160-48003-000   0916048003000

0916048003000

Unit Price

2
WASHER(48.1X64X2.01)<br />WASHER, CRANK THRUST (T:2.01)
WASHER(48.1X64X2.01)
WASHER, CRANK THRUST (T:2.01)

09160-48004-000   0916048004000

0916048004000

Unit Price

2
WASHER(48.1X64X2.04)<br />WASHER, CRANK THRUST (T:2.04)
WASHER(48.1X64X2.04)
WASHER, CRANK THRUST (T:2.04)

09160-48005-000   0916048005000

0916048005000

Unit Price

2
WASHER(48.1X64X2.06)<br />WASHER, CRANK THRUST (T:2.06)
WASHER(48.1X64X2.06)
WASHER, CRANK THRUST (T:2.06)

09160-48006-000   0916048006000

0916048006000

Unit Price

2
WASHER(48.1X64X2.09)<br />WASHER, CRANK THRUST (T:2.09)
WASHER(48.1X64X2.09)
WASHER, CRANK THRUST (T:2.09)

09160-48007-000   0916048007000

0916048007000

Unit Price

2
WASHER(48.1X64X2.11)<br />WASHER, CRANK THRUST (T:2.11)
WASHER(48.1X64X2.11)
WASHER, CRANK THRUST (T:2.11)

09160-48008-000   0916048008000

0916048008000

Unit Price

2
WASHER(48.1X64X2.14)<br />WASHER, CRANK THRUST (T:2.14)
WASHER(48.1X64X2.14)
WASHER, CRANK THRUST (T:2.14)

09160-48009-000   0916048009000

0916048009000

Unit Price

2
WASHER(48.1X64X2.16)
WASHER, CRANK THRUST (T:2.16)

09160-48010-000   0916048010000

0916048010000

Unit Price

3
BEARING, CRANKSHAFT

12229-02F00-0B0  

12229-02F21-0B0
 1222902F000B0

Unit Price

3
BEARING, CRANKSHAFT

12229-02F00-0C0  

12229-02F21-0C0
 1222902F000C0

Unit Price

3
BEARING,CRANKSHAFT<br />BEARING, CRANKSHAFT (BLACK)
BEARING, CRANKSHAFT
BEARING, CRANKSHAFT (BLACK)

12229-02F21-0B0   1222902F210B0

1222902F210B0

Unit Price

3
BEARING, CRANKSHAFT
BEARING, CRANKSHAFT (BROWN)

12229-02F21-0C0   1222902F210C0

1222902F210C0

Unit Price

3
DISCONTINUE

12229-02F00-0A0  

1222902F000A0
Not available
4
BEARING, CRANKSHAFT

12229-02F10-0B0  

12229-02F21-0B0
 1222902F100B0

Unit Price

4
BEARING, CRANKSHAFT
BEARING, CRANKSHAFT (BROWN)

12229-02F21-0C0   1222902F210C0

1222902F210C0

Unit Price

4
BEARING, UPPER (GREEN)

12229-02F10-0A0   1222902F100A0

1222902F100A0
Not available
4
UPPER CRANK BEARING

12229-02F10-0C0   1222902F100C0

1222902F100C0
Not available
4
DISCONTINUE<br />BEARING, CRANKSHAFT (GREEN)
DISCONTINUE
BEARING, CRANKSHAFT (GREEN)

12229-02F21-0A0   1222902F210A0

1222902F210A0
Not available
5
WASHER, CRANK THRUST

12652-38B00-000   1265238B00000

1265238B00000

Unit Price

5
DISCONTINUE<br />WASHER, CRANK THRUST
DISCONTINUE
WASHER, CRANK THRUST

12652-02F00-000   1265202F00000

1265202F00000
Not available
6
DISCONTINUE<br />CONNECTING ROD ASSY
DISCONTINUE
CONNECTING ROD ASSY

12160-02F00-000   1216002F00000

1216002F00000
Not available
7
PIN,CONNROD<br />PIN
PIN, CONNROD
PIN

12165-27A50-000   1216527A50000

1216527A50000

Unit Price

8
BEARING, CRANK PIN

12164-02F00-0C0   1216402F000C0

1216402F000C0

Unit Price

8
BEARING, CRANK PIN

12164-02F11-0A0  

12164-02F12-0A0
 1216402F110A0

Unit Price

8
BEARING, CRANK PIN

12164-02F11-0B0  

12164-02F12-0B0
 1216402F110B0

Unit Price

8
BEARING, CRANK PIN

12164-02F11-0C0  

12164-02F12-0C0
 1216402F110C0

Unit Price

8
BEARING, CRANK PIN

12164-02F11-0D0  

12164-02F12-0D0
 1216402F110D0

Unit Price

8
DISCONTINUE
BEARING, CRANK PIN

12164-02F00-0A0   1216402F000A0

1216402F000A0
Not available
8
DISCONTINUE
BEARING, CRANK PIN

12164-02F00-0B0   1216402F000B0

1216402F000B0
Not available
8
BEARING, CRANK PIN

12164-02F00-0D0   1216402F000D0

1216402F000D0
Not available
9
GEAR, PRIMARY DRIVE

21111-02F10-000  

21111-02F11-000
 2111102F10000

Unit Price

9
GEAR, PRIMARY DRIVE

21111-02F00-000   2111102F00000

2111102F00000
Not available
10
NUT
NUT

09140-22012-000   0914022012000

0914022012000

Unit Price

11
WASHER
WASHER

09164-22007-000   0916422007000

0916422007000

Unit Price

11A
WASHER,PRI DRIVE<br />WASHER, WAVE
WASHER, PRI DRIVE
WASHER, WAVE

21114-02F00-000   2111402F00000

2111402F00000

Unit Price

12
KEY

08341-31069-000   0834131069000

0834131069000

Unit Price

12
KEY
KEY

09420-06001-000   0942006001000

0942006001000

Unit Price

13
GEAR, PRIMARY DRIVE SCISSORS
GEAR, PRIMARY DRIVE SCISSORS

21112-02F00-000   2111202F00000

2111202F00000

Unit Price

14
08331-31409
CIRCLIP

08331-31406-000  

0833131406000
Not available
14
CIRCLIP

08331-31426-000   0833131426000

0833131426000
Not available
15
SPRING
SPRING

09440-07001-000   0944007001000

0944007001000

Unit Price

16
PISTON

12111-02F00-0F0   1211102F000F0

1211102F000F0

Unit Price

17
RING SET, PISTON

12140-02F40-000  

12140-02F42-000
 1214002F40000

Unit Price

18
PIN, PISTON
PIN, PISTON

12151-02F00-000   1215102F00000

1215102F00000

Unit Price

19
CIRCLIP
CIRCLIP

09381-22002-000   0938122002000

0938122002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.

Genuine parts for Suzuki 1000 TL-S 2000
