Finish line

Parts catalogue

Parts diagram

FRONT FENDER

REAR FEDNER FOR SUZUKI BOULEVARD 1500 2013

SIDE BAG

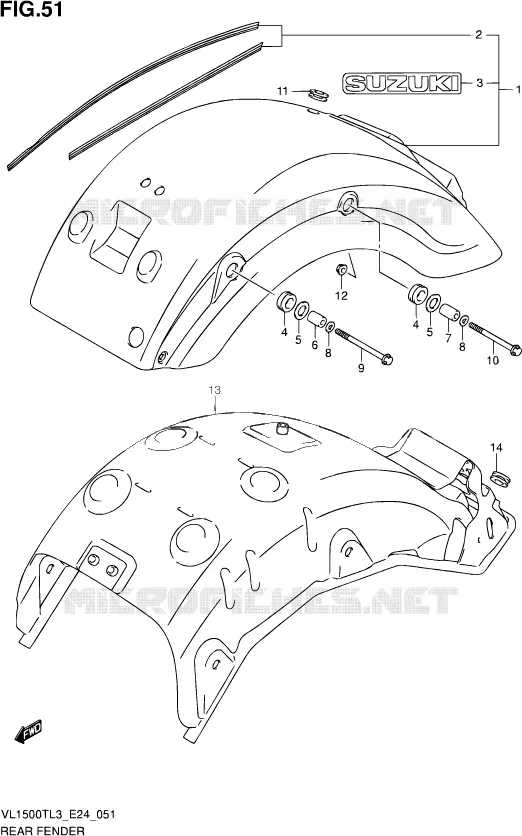

REAR FEDNER Suzuki MOTO 1500 BOULEVARD 2013 VL1500T L3 (E24)
1
DISCONTINUE
FENDER, REAR (RED/BLACK)

63110-06J10-HYA   6311006J10HYA

6311006J10HYA
Not available
1
DISCONTINUE
FENDER, REAR (WHITE/GRAY)

63110-06J10-HYB   6311006J10HYB

6311006J10HYB
Not available
2
.TAPE SET, REAR FENDER (RED/CHARCOAL)

68170-06J00-JFC   6817006J00JFC

6817006J00JFC
Not available
2
.TAPE SET, REAR FENDER (WHITE/BEIGE)

68170-06J00-JFD   6817006J00JFD

6817006J00JFD
Not available
4
CUSHION(16X26X8)
CUSHION

47191-24F00-000   4719124F00000

4719124F00000

Unit Price

5
PEDAL LOCK WASHER<br />WASHER (15.5X26X2.3)
PEDAL LOCK WASHER
WASHER (15.5X26X2.3)

09160-15002-000   0916015002000

0916015002000

Unit Price

6
SPACER, RR FENDER FR
SPACER, FRONT

95428-06J00-000   9542806J00000

9542806J00000

Unit Price

7
SPACER, RR FENDER RR
SPACER, REAR

95429-06J00-000   9542906J00000

9542906J00000

Unit Price

8
SPACER(8.2X12X6)
SPACER

09180-08047-000   0918008047000

0918008047000

Unit Price

9
BOLT

01550-0895A-000  

01550-0895B-000
 015500895A000

Unit Price

10
BOLT

01550-0885A-000   015500885A000

015500885A000

Unit Price

11
CUSHION

09320-15008-000   0932015008000

0932015008000

Unit Price

12
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

13
REINF, REAR FENDER

63130-06J00-000  

63130-06J01-000
 6313006J00000

Unit Price

14
GROMMET(10X35X9.5)
GROMMET

09308-10017-000   0930810017000

0930810017000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FEDNER of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2013

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD 2013

Select your Suzuki 2013 model

1500 BOULEVARD 2013 VL1500T L3 (E24)

Suzuki BOULEVARD

Displacement: 1500 cc
Year: 2013
Model code VL1500T L3 (E24)
