SWINGARM FOR SUZUKI BOULEVARD 1500 2013

FRONT FORK

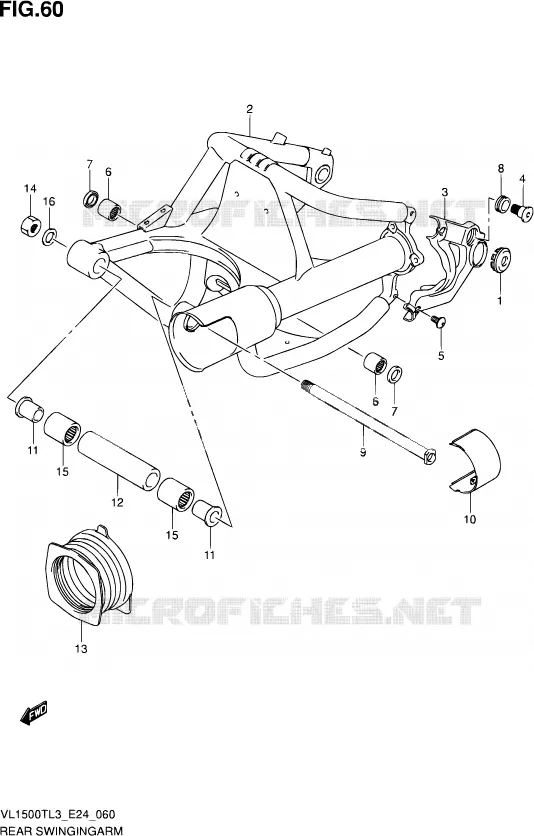

SWINGARM Suzuki MOTO 1500 BOULEVARD 2013 VL1500T L3 (E24)
1
CAP, FRAME PIVOT
CAP, REAR SWINGINGARM COVER

41899-42F10-000   4189942F10000

4189942F10000

Unit Price

2
SWINGINGARM, RR
SWINGINGARM, REAR (BLACK)

61100-06J00-019   6110006J00019

6110006J00019

Unit Price

3
COVER, RR SWINGINGARM, L(BLACK)(
COVER, LH (BLACK)

61126-40H00-019   6112640H00019

6112640H00019

Unit Price

4
BOLT, COVER RR
BOLT, COVER REAR

61127-41F20-000   6112741F20000

6112741F20000

Unit Price

5
SCREW<br />SCREW (8X16)
SCREW
SCREW (8X16)

09139-08007-000   0913908007000

0913908007000

Unit Price

6
BEARING (22X29X25)

09263-22071-000   0926322071000

0926322071000

Unit Price

7
SEAL, OIL

09285-22001-000  

09285-22006-000
 0928522001000

Unit Price

8
CUSHION, RR SWGARM CO

09320-22003-000  

09320-22004-000
 0932022003000

Unit Price

9
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-22D00-000   6121122D00000

6121122D00000

Unit Price

10
COVER, RR SWGARM PIVOT, L
COVER, PIVOT LH

61230-40H00-000   6123040H00000

6123040H00000

Unit Price

11
SPACER, PIVOT BEARING
SPACER, PIVOT BEARING

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

12
SPACER, RR SWGARM PIVOT CTR
SPACER, PIVOT CENTER

61280-48G01-000   6128048G01000

6128048G01000

Unit Price

13
BOOT, PROPELLER SHAFT

61372-40H10-000  

6137240H10000
Not available
14
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

15
BEARING
BEARING

09263-25059-000  

09263-25073-000
 0926325059000

Unit Price

16
WASHER
WASHER

08322-0118B-000   083220118B000

083220118B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of BOULEVARD. Let us know if you have any questions.
