GEAR SHIFTING ASSY

DRIVESHAFT FOR SUZUKI BOULEVARD 1500 2013

STAND

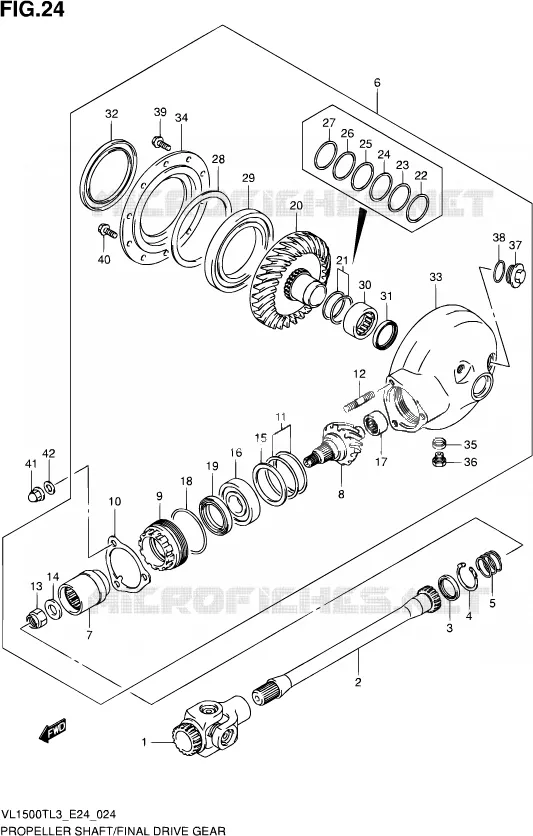

DRIVESHAFT Suzuki MOTO 1500 BOULEVARD 2013 VL1500T L3 (E24)
1
YOKE, UNIVERSAL JOINT

27100-48G20-000   2710048G20000

2710048G20000

Unit Price

2
SHAFT, PROPELLER

27151-40H00-000   2715140H00000

2715140H00000

Unit Price

3
PR CUP RING OIL SEAL
OIL SEAL (30X40.5X5.5)

09283-30026-000   0928330026000

0928330026000

Unit Price

4
DR CUP RING CIRCLIP
CIRCLIP

09381-40003-000   0938140003000

0938140003000

Unit Price

5
SPRING

09440-30008-000   0944030008000

0944030008000

Unit Price

6
GEAR & CASE SET, FINAL BEVEL (SILVER)

27300-48860-20H   273004886020H

273004886020H
Not available
7
.COUPLING, FINAL DRIVE GEAR

27172-24A00-000   2717224A00000

2717224A00000

Unit Price

8
DISCONTINUE
.GEAR, FINAL DRIVE BEVEL (NT:12)

27311-24A10-000   2731124A10000

2731124A10000
Not available
9
.STOPPER, FINAL DRIVE BEARING

27312-24A02-000   2731224A02000

2731224A02000

Unit Price

10
.PLATE, BEARING STOPPER

27313-38B00-000   2731338B00000

2731338B00000

Unit Price

10
.PLATE, BEARING STOPPER

27313-38B10-000   2731338B10000

2731338B10000

Unit Price

11
.SHIM SET, FINAL DRIVE GEAR

27445-24810-000   2744524810000

2744524810000

Unit Price

12
BOLT, STUD
.STUD BOLT

09108-10106-000  

0910810106000
Not available
13
.NUT

09159-16003-000   0915916003000

0915916003000

Unit Price

14
WASHER
.WASHER (16X29X4)

09160-16029-000   0916016029000

0916016029000

Unit Price

15
.WASHER (54X68X1.5)

09160-54001-000   0916054001000

0916054001000

Unit Price

16
BEARING
.BEARING (28X68X18)

09262-28023-000   0926228023000

0926228023000

Unit Price

17
BEARING
.BEARING (20X34X18)

09263-20062-000   0926320062000

0926320062000

Unit Price

18
O RING<br />.O RING (D:3.1,ID:63.9)
O RING
.O RING (D:3.1, ID:63.9)

09280-64003-000   0928064003000

0928064003000

Unit Price

19
OIL SEAL
.OIL SEAL (45.5X58X7)

09283-47002-000   0928347002000

0928347002000

Unit Price

20
GEAR, FINAL DRIVEN BEVEL
.GEAR, FINAL DRIVEN BEVEL (NT:32)

27320-48G00-000   2732048G00000

2732048G00000

Unit Price

21
SHIM SET, FINAL DRIVEN GEAR, R
.SHIM SET, FINAL DRIVEN LH

27326-48811-000   2732648811000

2732648811000

Unit Price

22
..SHIM (40X46.8X0.95)

09181-40011-000   0918140011000

0918140011000

Unit Price

23
..SHIM (40X46.8X1.05)

09181-40013-000   0918140013000

0918140013000

Unit Price

24
..SHIM (40X46.8X1.1)

09181-40014-000   0918140014000

0918140014000

Unit Price

25
..SHIM (40X50X1.2)

09181-40176-000   0918140176000

0918140176000

Unit Price

26
..SHIM (40X50X1.4)

09181-40182-000   0918140182000

0918140182000

Unit Price

27
..SHIM (40X50X1.5)

09181-40212-000   0918140212000

0918140212000

Unit Price

28
SHIM SET, FINAL DRIVEN GEAR
.SHIM SET, FINAL DRIVE RH

27327-38810-000   2732738810000

2732738810000

Unit Price

29
BEARING
.BEARING (85X130X14)

09262-85001-000   0926285001000

0926285001000

Unit Price

30
BEARING
.BEARING (40X50X20)

09263-40016-000   0926340016000

0926340016000

Unit Price

31
SEAL, OIL
.OIL SEAL (38X46X6)

09283-38026-000   0928338026000

0928338026000

Unit Price

32
SEAL, OIL
.OIL SEAL (85X110X11)

09289-85001-000   0928985001000

0928985001000

Unit Price

33
CASE, FINAL GEAR
.CASE, FINAL GEAR (SILVER)

27450-48G70-20H   2745048G7020H

2745048G7020H

Unit Price

34
.CASE, FINAL GEAR BEARING

27461-38B00-000   2746138B00000

2746138B00000

Unit Price

35
GASKET,13.8X18.8X0.4<br />.GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
.GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

36
PLUG<br />.PLUG (MAGNET)
PLUG
.PLUG (MAGNET)

09247-14002-000   0924714002000

0924714002000

Unit Price

37
PLUG
.PLUG (30X9)

09259-30007-000   0925930007000

0925930007000

Unit Price

38
O RING
.O RING (D:3.1, ID:26.4)

09280-26006-000   0928026006000

0928026006000

Unit Price

39
.BOLT
.BOLT

01550-0825A-000   015500825A000

015500825A000

Unit Price

40
.BOLT

01550-1025A-000   015501025A000

015501025A000

Unit Price

41
CYLINDER HEAD NUT
.NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

42
.WASHER
.WASHER

09164-10008-000   0916410008000

0916410008000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of BOULEVARD. Let us know if you have any questions.
