CYLINDER

CRACKCASE COVER FOR SUZUKI BOULEVARD 1500 2013

CRACKCASE COVER

CRANKCASE SET

11301-40880-000 1130140880000

Not available

BEARING, CRANK THRUST
.BEARING, CRANK THRUST (T:1.925-1.950)

12228-40H00-0A0 1222840H000A0

$31,97

Unit Price

BEARING, CRANK THRUST
.BEARING, CRANK THRUST (T:1.950-1.975)

12228-40H00-0B0 1222840H000B0

$31,97

Unit Price

BEARING, CRANK THRUST
.BEARING, CRANK THRUST (T:1.975-2.000)

12228-40H00-0C0 1222840H000C0

$29,97

Unit Price

BEARING, CRANK THRUST
.BEARING, CRANK THRUST (T:2.000-2.025)

12228-40H00-0D0 1222840H000D0

$29,97

Unit Price

BEARING, CRANK THRUST
.BEARING, CRANK THRUST (T:2.025-2.050)

12228-40H00-0E0 1222840H000E0

$31,97

Unit Price

BEARING, CRANK THRUST
.BEARING, CRANK THRUST (T:2.050-2.075)

12228-40H00-0F0 1222840H000F0

$31,97

Unit Price

.UNION, OIL STAND

16591-06B01-000 1659106B01000

$10,97

Unit Price

.BOLT (8X110)

09103-08122-000 0910308122000

$6,97

Unit Price

.BOLT

01547-0645A-000 015470645A000

$3,97

Unit Price

.BOLT

01547-0685A-000 015470685A000

$4,97

Unit Price

BOLT

01550-0845A-000

01550-0845B-000

$5,97

Unit Price

.BOLT

01550-0860A-000 015500860A000

$5,97

Unit Price

.BOLT

01550-0870A-000 015500870A000

$6,97

Unit Price

.BOLT

01550-0880A-000 015500880A000

$6,97

Unit Price

GASKET
.GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

PIN, CRANKCASE
.PIN

11319-33E50-000 1131933E50000

$8,97

Unit Price

PIN, CRANKCASE
.PIN (8.4X11X20)

09206-11007-000 0920611007000

$3,97

Unit Price

O RING (D:1.9, ID:12.6)

09280-12009-000 0928012009000

$4,97

Unit Price

PLATE, OIL SEPARATOR

11313-40H00-000 1131340H00000

$15,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

PLATE, PISTON JET RR
PLATE, PISTON JET REAR

16439-38B00-000 1643938B00000

$3,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

BOLT

01550-0812A-000

01550-0812B-000

$4,97

Unit Price

GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

PLUG, OIL GALL
PLUG (10X10)

09248-10010-000 0924810010000

$7,97

Unit Price

CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000 0916810002000

$2,97

Unit Price

PLUG, OIL
PLUG (16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

JET, PISTON COOLING (0.8)

09493-80009-000 0949380009000

Not available

O RING
O RING (D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

JET(12)
JET, MISSION OIL (1.2)

09493-24009-000 0949324009000

$26,97

Unit Price

O RING
O RING (D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

JET, OIL GALLERY(18)
JET, SECONDARY OIL (1.8)

09493-36004-000 0949336004000

$15,97

Unit Price

O RING
O RING (D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

PLUG, OIL DRAIN
PLUG (14X20)

09247-14036-000 0924714036000

$10,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

09248-14011
PLUG (14X12)

09248-14012-000

Not available

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

BOLT, SEC DRIVE UNIT COVER

11372-22H00-000 1137222H00000

$18,97

Unit Price

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

BOLT

01547-0630A-000 015470630A000

$4,97

Unit Price

SPACER, ENG MTG
SPACER, ENGINE MOUNTING

11611-48G00-000 1161148G00000

$19,97

Unit Price

BUSH, ENGINE MOUNTING

11652-40H20-000 1165240H20000

Not available

BOLT
BOLT (10X215)

09103-10041-A05 0910310041A05

$17,97

Unit Price

BOLT, ENG MTG, L195
BOLT (10X195)

09103-10118-000 0910310118000

$17,97

Unit Price

NUT

08319-3110A-000 083193110A000

$3,97

Unit Price

SWITCH ASSY, OIL PRESSURE

37820-33D10-000

37820-33D11-000

$33,97

Unit Price

BOLT, OIL PRESSURE SWITCH
.BOLT

37822-33D00-000 3782233D00000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

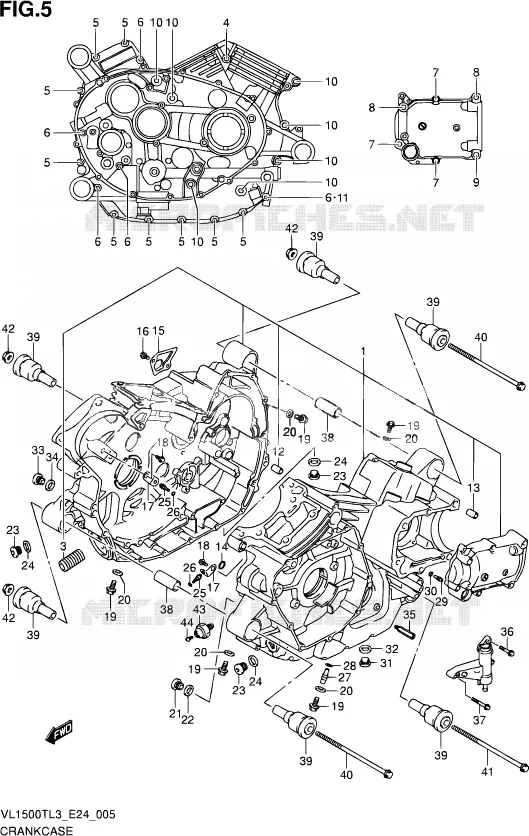

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRACKCASE COVER of your Suzuki of BOULEVARD. Let us know if you have any questions.
