Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CAMSHAFT - VALVES

TIMING FOR SUZUKI BOULEVARD 1500 2013

THROTTLE BODY

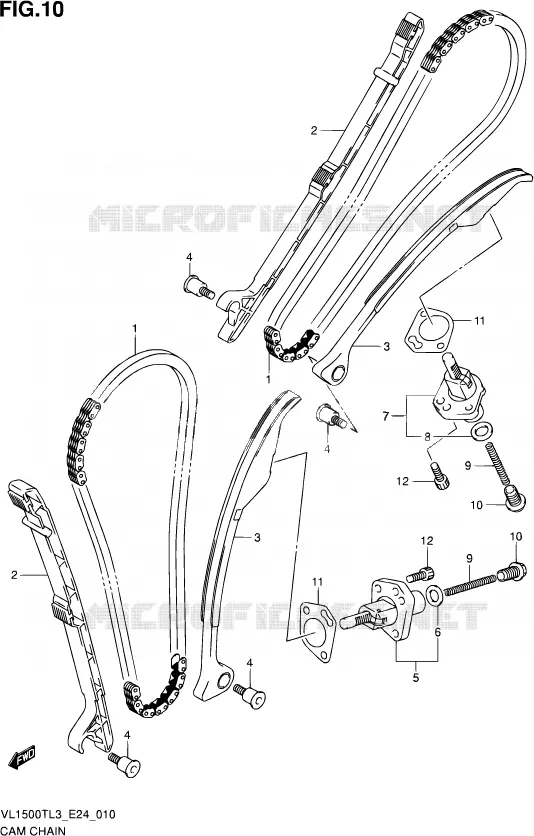

TIMING Suzuki MOTO 1500 BOULEVARD 2013 VL1500T L3 (E24)
1
CHAIN, CAMSHAFT DRIVE

12760-40H00-000   1276040H00000

1276040H00000

Unit Price

2
GUIDE, CAM CHAIN

12771-40H00-000  

12771-40H01-000
 1277140H00000

Unit Price

3
TENSIONER, CAM CHAIN

12811-40H00-000  

12811-40H01-000
 1281140H00000

Unit Price

4
BOLT, CAM CHAIN TENSIONER
BOLT

12812-31G00-000  

1281231G00000
Not available
5
ADJUSTER ASSY, TENSIONER FR
ADJUSTER ASSY, TENSIONER FRONT

12830-40H00-000   1283040H00000

1283040H00000

Unit Price

6
GASKET, TENSIONER ADJUSTER
.GASKET

12837-24F10-000   1283724F10000

1283724F10000

Unit Price

7
ADJUSTER ASSY, TENSIONER RR
ADJUSTER ASSY, TENSIONER REAR

12830-40H10-000   1283040H10000

1283040H10000

Unit Price

8
GASKET, TENSIONER ADJUSTER
.GASKET

12837-24F10-000   1283724F10000

1283724F10000

Unit Price

9
SPRING

12831-41G00-000   1283141G00000

1283141G00000

Unit Price

10
PLUG, TENSIONER ADJUSTER
PLUG

12833-17G00-000   1283317G00000

1283317G00000

Unit Price

11
GASKET, TENSIONER ADJUSTER
GASKET

12837-27G00-000   1283727G00000

1283727G00000

Unit Price

12
BOLT

07130-0625A-000   071300625A000

071300625A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2013

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD 2013

Select your Suzuki 2013 model

1500 BOULEVARD 2013 VL1500T L3 (E24)

Suzuki BOULEVARD

Displacement: 1500 cc
Year: 2013
Model code VL1500T L3 (E24)
