Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

CRANKSHAFT FOR SUZUKI GSX 250 1991

STARTER MOTOR CLUTCH

Item numbers

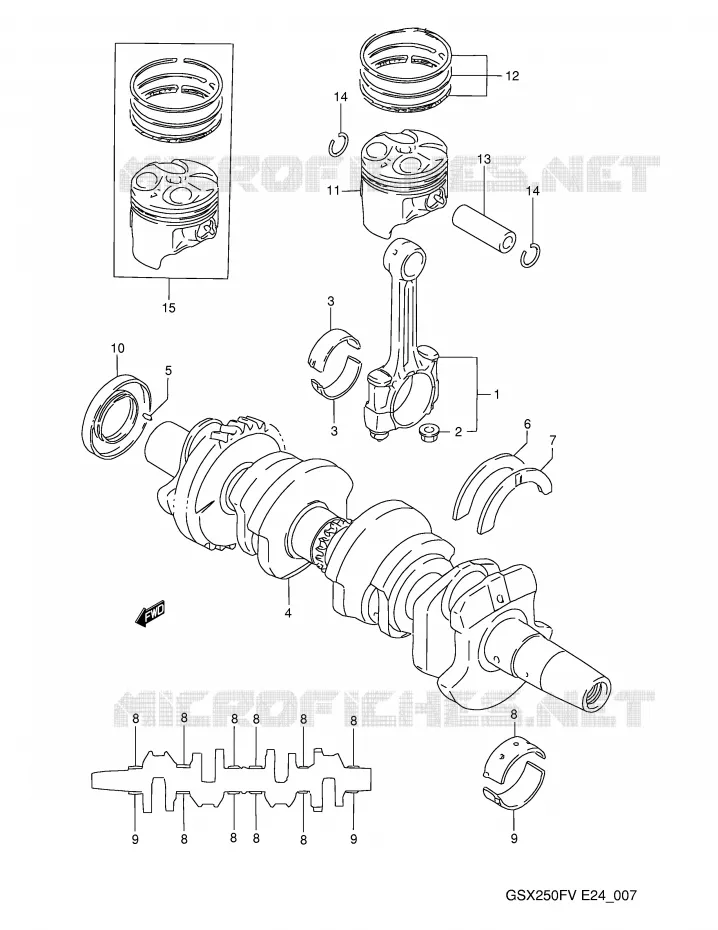

CRANKSHAFT Suzuki MOTO 250 GSX 1991 GSX250FM(E24)
1
2
3
3
3
3
3
3
3
3
4
5
6
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
11
12
13
14
14
15
15
1
ROD ASSY, CONECTING

12160-05C02-000   1216005C02000

1216005C02000
Not available
2
NUT

09159-06046-000   0915906046000

0915906046000
Not available
3
BEARING, CRANK PIN (GREEN)

12164-05C01-0A0   1216405C010A0

1216405C010A0
Not available
3
BEARING, CRANK PIN (BLACK)

12164-05C01-0B0   1216405C010B0

1216405C010B0
Not available
3
BEARING, CRANK PIN (BROWN)

12164-05C01-0C0   1216405C010C0

1216405C010C0
Not available
3
BEARING, CRANK PIN (YELLOW)

12164-05C01-0D0   1216405C010D0

1216405C010D0
Not available
4
CRANKSHAFT SET

12000-05821-000   1200005821000

1200005821000
Not available
5
PIN

09202-03016-000   0920203016000

0920203016000

Unit Price

6
BEARING, CRANK THRUST (GREEN)

12228-38414-000   1222838414000

1222838414000
Not available
7
BEARING, CRANK THRUST (RED)

12228-38411-000   1222838411000

1222838411000
Not available
7
BEARING, CRANK THRUST (BLACK)

12228-38412-000   1222838412000

1222838412000
Not available
7
BEARING, CRANK THRUST (BLUE)

12228-38413-000   1222838413000

1222838413000
Not available
7
BEARING, CRANK THRUST (GREEN)

12228-38414-000   1222838414000

1222838414000
Not available
7
BEARING, CRANK THRUST (YELLOW

12228-38415-000   1222838415000

1222838415000
Not available
7
BEARING, CRANK THRUST (WHITE)

12228-38416-000   1222838416000

1222838416000
Not available
8
BEARING, CRANKSHAFT (GREEN)

12229-38402-010   1222938402010

1222938402010
Not available
8
BEARING, CRANKSHAFT (BLACK)

12229-38402-020   1222938402020

1222938402020
Not available
8
BEARING, CRANKSHAFT (BROWN)

12229-38402-030   1222938402030

1222938402030
Not available
8
BEARING, CRANKSHAFT (YELLOW)

12229-38402-040   1222938402040

1222938402040
Not available
9
BEARING, CRANKSHAFT (GREEN)

12229-05C00-0A0   1222905C000A0

1222905C000A0
Not available
9
BEARING, CRANKSHAFT (BLACK)

12229-05C00-0B0   1222905C000B0

1222905C000B0
Not available
9
BEARING, CRANKSHAFT (BROWN)

12229-05C00-0C0   1222905C000C0

1222905C000C0
Not available
9
BEARING, CRANKSHAFT (YELLOW)

12229-05C00-0D0   1222905C000D0

1222905C000D0
Not available
10
SEAL, OIL(28X50X8)
OIL SEAL

09283-28014-000   0928328014000

0928328014000

Unit Price

11
PISTON

12111-05C04-000   1211105C04000

1211105C04000
Not available
12
RING SET, PISTON

12140-05C00-000   1214005C00000

1214005C00000
Not available
13
PIN, PISTON

12151-06C01-000   1215106C01000

1215106C01000
Not available
14
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000   0938114001000

0938114001000

Unit Price

15
PISTON SET (OS:0.5)

12100-05C00-050   1210005C00050

1210005C00050
Not available
15
PISTON SET (OS:1.0)

12100-05C00-100   1210005C00100

1210005C00100
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 250 GSX 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 GSX 1991

Select your Suzuki 1991 model

250 GSX 1991 GSX250FM(E24)

Suzuki GSX

Displacement: 250 cc
Year: 1991
Model code GSX250FM(E24)
