REAR CALIPER (MODEL N / P / R / T / V)

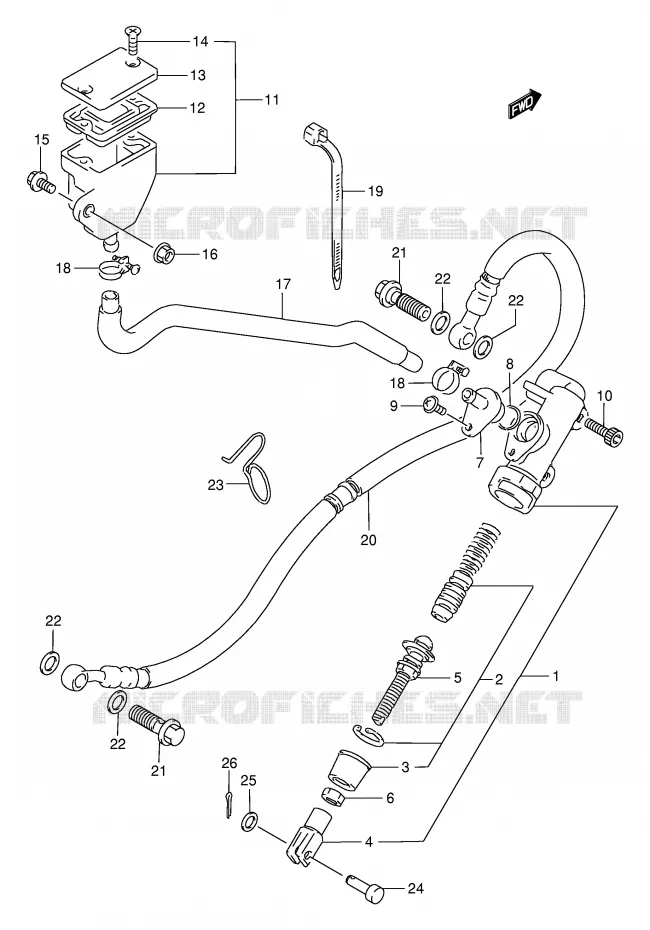

REAR BRAKE MASTER CYLINDER FOR SUZUKI GSX 250 1991

OPTIONS

Item numbers

DISCONTINUE
CYLINDER ASSY, REAR MASTER

69600-40A01-000 6960040A01000

Not available

PISTON/CUP SET

69600-04820-000

69600-04821-000

$87,97

Unit Price

BOOT

69691-00A00-000 6969100A00000

$9,97

Unit Price

DISCONTINUE
YOKE

69692-34300-000 6969234300000

Not available

ROD, PUSH

69670-40A00-000 6967040A00000

$25,97

Unit Price

NUT

69693-34300-000 6969334300000

Not available

CONNECTOR

69672-00A00-000 6967200A00000

$8,97

Unit Price

O RING CONECTOR
O RING

69686-34200-000 6968634200000

$6,97

Unit Price

SCREW

02112-74123-000

02112-0412A-000

$2,97

Unit Price

BOLT

07110-06208-000

07130-06207-000

$4,97

Unit Price

BOLT

07130-06203-000

07130-0620B-000

$4,97

Unit Price

TANK ASSY, RR RESERVOIR
TANK ASSY, RESERVOIR

69740-01D02-000 6974001D02000

$109,97

Unit Price

DIAPHRAGM

59667-04700-000 5966704700000

$12,97

Unit Price

CAP

59669-05D00-000 5966905D00000

$20,97

Unit Price

CAP

69669-24A01-000 6966924A01000

$24,97

Unit Price

SCREW

69689-04A00-000 6968904A00000

$2,97

Unit Price

01550-0616A
BOLT

01550-06163-000

Not available

BOLT

09103-06139-000 0910306139000

Not available

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

HOSE, RESERVOIR TANK REAR

69730-24D01-000 6973024D01000

Not available

CLIP

09401-13413-000

09401-13417-000

$3,97

Unit Price

CLAMP

09400-15302-000 0940015302000

Not available

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

HOSE, REAR BRAKE

69480-24D01-000 6948024D01000

Not available

UNION

09360-10017-000

09360-10061-000

$10,97

Unit Price

WASHER

09161-10009-000 0916110009000

$2,97

Unit Price

GUIDE, REAR BRAKE HOSE

69243-24D00-000 6924324D00000

Not available

09200-06037-000

09200-06068-000

$7,97

Unit Price

WASHER

08322-01063-000

08322-0106A-000

$2,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Suzuki of GSX. Let us know if you have any questions.
