Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT CALIPER (MODEL N / P / R / T / V)

FRONT MASTER CYLINDER (MODEL M) FOR SUZUKI GSX 250 1991

FRONT MASTER CYLINDER (MODEL N / P / R / T / V)

Item numbers

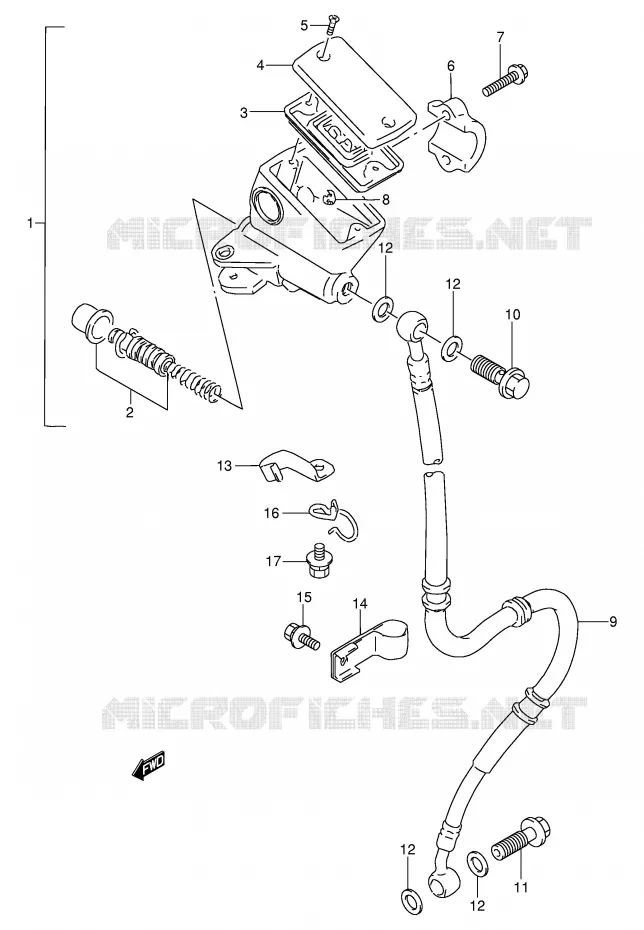

FRONT MASTER CYLINDER (MODEL M) Suzuki MOTO 250 GSX 1991 GSX250FM(E24)
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
14
15
16
17
1
CYLINDER ASSY, FRONT MASTER

59600-38C10-000   5960038C10000

5960038C10000
Not available
2
PISTON/CUP SET

59600-36820-000  

59600-04810-000
 5960036820000

Unit Price

3
DIAPHRAGM
DIAPHRAGM

59667-49460-000   5966749460000

5966749460000

Unit Price

4
59669-41C00
.CAP

59669-34C00-000  

5966934C00000
Not available
5
SCREW,RESERVOIR CAP<br />SCREW
SCREW, RESERVOIR CAP
SCREW

69689-49300-000   6968949300000

6968949300000

Unit Price

6
HOLDER
HOLDER

59671-19B00-000   5967119B00000

5967119B00000

Unit Price

7
BOLT (6X25)
BOLT (6X25)

59675-19C00-000   5967519C00000

5967519C00000

Unit Price

8
PROTECTOR
PROTECTOR

59664-48B00-000   5966448B00000

5966448B00000

Unit Price

9
HOSE, FRONT BRAKE RH

59480-24D00-000   5948024D00000

5948024D00000
Not available
10
UNION

09360-10017-000  

09360-10061-000
 0936010017000

Unit Price

11
BOLT, BRAKE FLUID

09360-10033-000  

09360-10062-000
 0936010033000

Unit Price

12
WASHER
WASHER

09161-10009-000   0916110009000

0916110009000

Unit Price

13
CLAMP, FRONT BRAKE HOSE

59268-24D00-000   5926824D00000

5926824D00000
Not available
14
CLAMP, FRONT BRAKE NO.2

59268-01D10-000   5926801D10000

5926801D10000
Not available
15
BOLT

01517-06125-000  

01517-06123-000
 0151706125000

Unit Price

16
GUIDE, FRONT BRAKE HOSE

59268-24D10-000   5926824D10000

5926824D10000
Not available
17
BOLT

01177-06165-000  

01580-06163-000
 0117706165000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER (MODEL M) of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 250 GSX 1991
