CRANKCASE COVER

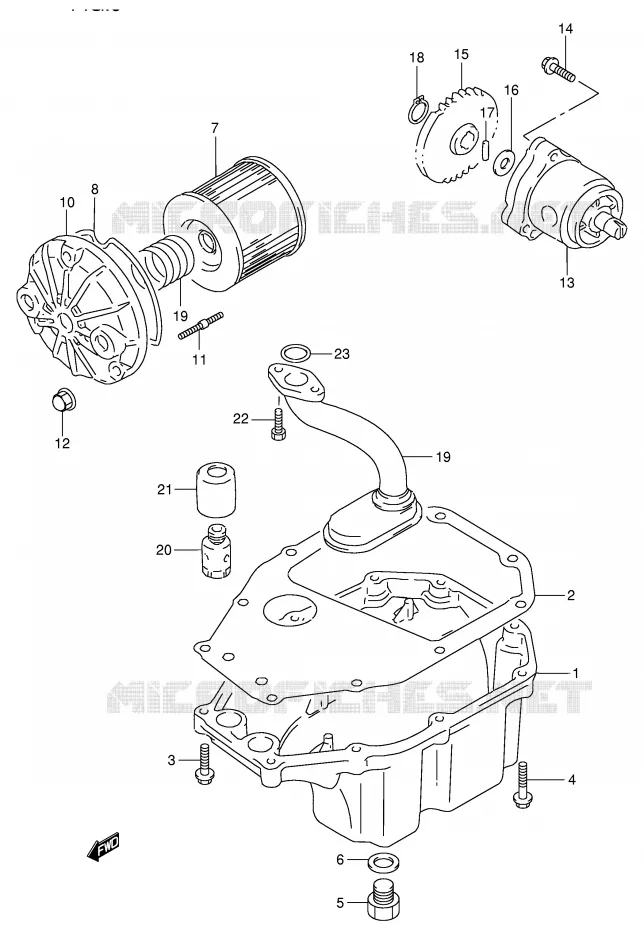

OIL PUMP FOR SUZUKI GSX 250 1991

CRANKSHAFT

Item numbers

PAN, OIL

11511-24D00-000 1151124D00000

Not available

GASKET, OIL PAN

11489-24D00-000 1148924D00000

Not available

BOLT

01517-06257-000

01550-0625A-000

$3,97

Unit Price

BOLT

01517-06307-000

01550-06307-000

$4,97

Unit Price

BOLT

01550-06303-000

01550-0630A-000

$3,97

Unit Price

PLUG

09247-14001-000

09247-14002-000

$8,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000 0916814002000

$3,97

Unit Price

FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-45040-000 1651045040000

$10,45

Unit Price

O RING, OIL FILTER CHAMBER CAP
O RING, OIL FILTER CAP

16518-45000-000 1651845000000

$12,97

Unit Price

FLTR RETAINER SPRING
SPRING

09440-32004-000 0944032004000

$18,97

Unit Price

CAP, OIL FILTER

16512-45D00-000 1651245D00000

$56,97

Unit Price

CAP, OIL FILTER

16512-33321-000 1651233321000

Not available

BOLT, STUD

01421-06208-000

01421-0620A-000

$3,97

Unit Price

NUT

08313-20063-000

08313-2006A-000

$3,97

Unit Price

PUMP ASSY, ENGINE OIL

16400-05C01-000 1640005C01000

Not available

BOLT

01517-06307-000

01550-06307-000

$4,97

Unit Price

BOLT

01550-06303-000

01550-0630A-000

$3,97

Unit Price

GEAR, OIL PUMP DRIVEN

16331-24D00-000 1633124D00000

Not available

SHIM

08221-12205-000 0822112205000

Not available

09261-05006-000 0926105006000

$2,97

Unit Price

CIRCLIP

08331-31126-000

08331-3112A-000

$2,97

Unit Price

STRAINER, ENGINE OIL

16520-06C01-000 1652006C01000

Not available

REGULATOR, OIL

16440-05C01-000 1644005C01000

Not available

GUIDE, OIL RELIEF VALVE

16449-05A00-000 1644905A00000

Not available

BOLT(6X16)
SCREW

09128-06049-000 0912806049000

$3,97

Unit Price

O RING

09280-16008-000 0928016008000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of GSX. Let us know if you have any questions.
