FRONT FENDER (MODEL M / N / P / R) REFER TO FIG.41A(G-8) FOR MODEL S

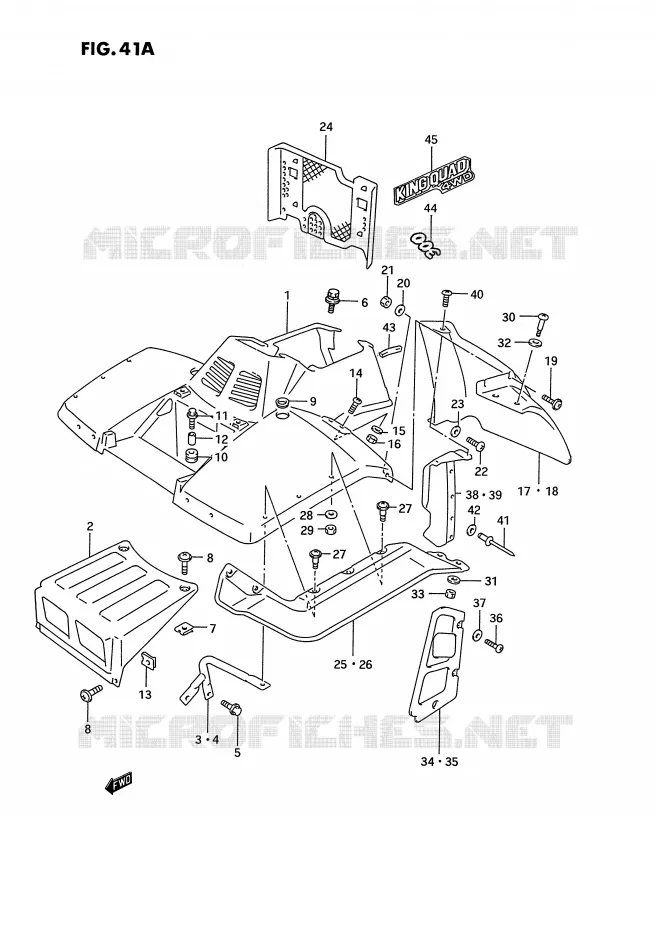

FRONT FENDER (MODEL S) FOR SUZUKI KINGQUAD 300 1993

REAR FENDER

DISCONTINUE
FENDER, FRONT (BLUE)

53111-19B10-0VT 5311119B100VT

Not available

FENDER, FRONT (ORANGE)

53111-19B10-25G 5311119B1025G

Not available

FENDER, CTR
FENDER, CENTER

53118-19B00-000 5311819B00000

$79,97

Unit Price

DISCONTINUE
BRACE, FENDER RH

53210-19B10-000 5321019B10000

Not available

DISCONTINUE
BRACE, FENDER LH

53240-19B10-000 5324019B10000

Not available

BOLT

01550-08163-000

01550-0816B-000

$4,97

Unit Price

BOLT(6X14)
BOLT, FENDER REAR (L:13)

09118-06019-000 0911806019000

$4,97

Unit Price

BOLT, FENDER CENTER (L:20)

09118-06016-000 0911806016000

Not available

NUT, FR FENDER
NUT

53141-19A00-000 5314119A00000

$9,97

Unit Price

SCREW 6 X 16

09136-06062-000

09136-06017-000

$3,97

Unit Price

GROMMET

09308-25003-000

09308-25005-000

$8,97

Unit Price

FUEL TANK CUSHIO****

09320-11015-000

09320-11008-000

$4,97

Unit Price

BOLT
BOLT, FRONT FENDER FRONT

09116-06025-000 0911606025000

$4,97

Unit Price

SPACER 6.5X11.5X12
SPACER

09180-06120-000 0918006120000

$4,97

Unit Price

NUT, FR FENDER
NUT

53141-19A00-000 5314119A00000

$9,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

F FORK COVER WASHER
WASHER

09169-06016-000 0916906016000

$2,97

Unit Price

NUT, ROOF RAIL

09159-06058-000

09159-06078-000

$4,97

Unit Price

DISCONTINUE
MUD FLAP, FENDER RH

53311-19B10-000 5331119B10000

Not available

DISCONTINUE
MUD FLAP, FENDER LH

53312-19B10-000 5331219B10000

Not available

SCREW

09139-05038-000 0913905038000

$3,97

Unit Price

WASHER, 5.5X20X1.4

09160-05039-000

09160-05046-000

$2,97

Unit Price

NUT

09159-05026-000

09159-05043-000

$3,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

CHAIN CASE WASHER
WASHER, INNER

09169-06010-000 0916906010000

$4,97

Unit Price

GUARD, MUFFLER FR
GUARD, MUFFLER FRONT

53310-20B12-000 5331020B12000

$84,97

Unit Price

GUARD, MUFFLER FRONT

53310-19B32-000 5331019B32000

Not available

DISCONTINUE
MUD GUARD, FENDER FRONT RH

53331-19B00-000 5333119B00000

Not available

DISCONTINUE
MUD GUARD, FENDER FRONT LH

53332-19B00-000 5333219B00000

Not available

SCREW

09136-05038-000 0913605038000

$6,97

Unit Price

WASHER, 5.5X20X1.4

09160-05039-000

09160-05046-000

$2,97

Unit Price

NUT

09159-05026-000

09159-05043-000

$3,97

Unit Price

SCREW

09139-05037-000 0913905037000

$4,97

Unit Price

WASHER, 5.5X20X1.4

09160-05039-000

09160-05046-000

$2,97

Unit Price

WASHER

09160-07011-000

09160-06137-000

$3,97

Unit Price

NUT

09159-05026-000

09159-05043-000

$3,97

Unit Price

MUDFLAP, FR FENDER INNER RR, R
MUD FLAP, INNER REAR RH

53511-19B00-000 5351119B00000

$50,97

Unit Price

MUDFLAP, FR FENDER INNER RR, L
MUD FLAP, INNER REAR LH

53521-19B00-000 5352119B00000

$50,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

CHAIN CASE WASHER
WASHER

09169-06010-000 0916906010000

$4,97

Unit Price

DISCONTINUE
MUD FLAP, INNER RH

53411-19B01-000 5341119B01000

Not available

DISCONTINUE
MUD FLAP, INNER LH

53421-19B01-000 5342119B01000

Not available

SCREW

09139-05037-000 0913905037000

$4,97

Unit Price

RIVET

09229-03023-000 0922903023000

Not available

WASHER

09160-03008-000 0916003008000

Not available

DISCONTINUE
CUSHION, MUD FLAP LH

63191-44A00-000 6319144A00000

Not available

DISCONTINUE
EMBLEM, 300

68151-19B60-L43 6815119B60L43

Not available

DISCONTINUE
EMBLEM, FRONT FENDER

68155-19B50-Y63 6815519B50Y63

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FENDER (MODEL S) of your Suzuki of KINGQUAD. Let us know if you have any questions.
