GEAR SHIFTING ASSY

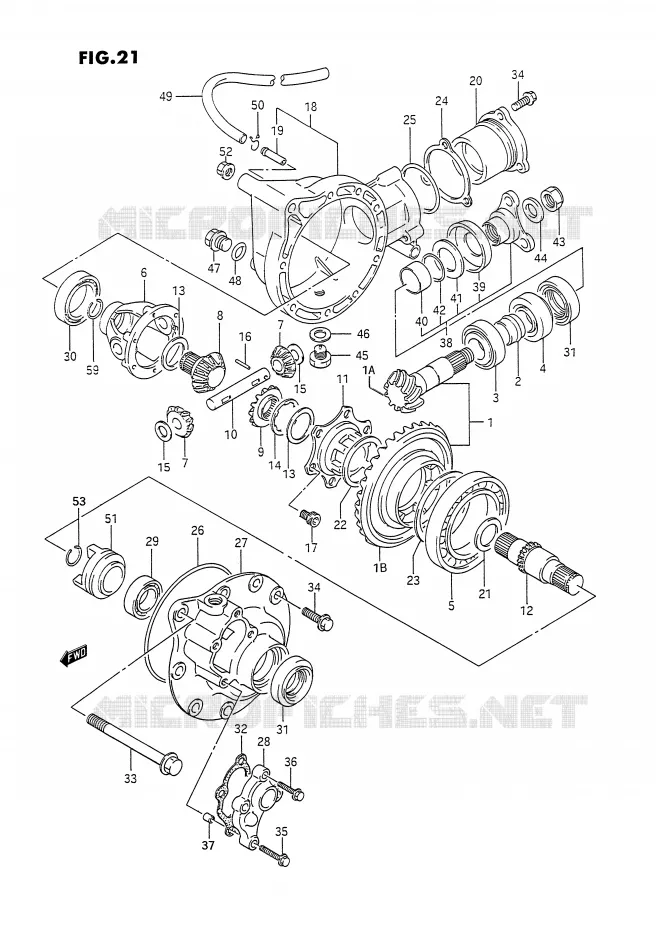

FRONT FINAL GEAR FOR SUZUKI KINGQUAD 300 1993

DIFFERENTIAL LOCK

GEAR, FINAL DRIVE BEVEL
GEAR, DRIVE BEVEL

27311-19B10-000 2731119B10000

$240,97

Unit Price

GEAR, FR DRIVEN BEVEL
GEAR, DRIVEN BEVEL

27321-19B11-000 2732119B11000

$313,97

Unit Price

27311-19B10
DISCONTINUED

27300-19820-000

Not available

SPACER

09180-25085-000 0918025085000

$45,97

Unit Price

DRIVE BEVEL BEARING
BEARING, FRONT

09265-25013-000 0926525013000

$108,97

Unit Price

BEARING
BEARING, REAR

09265-25024-000 0926525024000

$96,97

Unit Price

FIN DRVN GR BEA *S1
BEARING (70X110X13)

09262-70001-000 0926270001000

$163,97

Unit Price

CASE, FR DIFFERENTIAL
CASE, DIFFERENTIAL

27411-19B00-000 2741119B00000

$184,97

Unit Price

PINION, DIFFERENTIAL SIDE

27331-65000-000 2733165000000

$68,97

Unit Price

GEAR, FR DIFFERENTIAL
GEAR, RH (NT:13)

27341-19B10-000 2734119B10000

$176,97

Unit Price

GEAR, RR DIFF
GEAR, LH (NT:13)

27341-84212-000 2734184212000

$94,97

Unit Price

SHAFT, PINION

27351-51005-000 2735151005000

$19,97

Unit Price

HUB, FR DRIVEN BEVEL GEAR
HUB

27322-19B11-000 2732219B11000

$250,97

Unit Price

SHAFT, FR DRIVEN OUTPUT

27361-19B10-000

27361-19B20-000

$47,97

Unit Price

WASHER(29X40X1)
WASHER (T:1.0)

09160-29012-000 0916029012000

$6,97

Unit Price

WASHER(29X40X1.2)
WASHER (T:1.2)

09160-29013-000 0916029013000

$5,97

Unit Price

DISCONTINUE
WASHER (T:0.8)

09160-29011-000 0916029011000

Not available

WASHER

09164-29003-000 0916429003000

$18,97

Unit Price

ST IDLE GEAR WASHER
WASHER (13.3X25X0.85)

09160-13003-000 0916013003000

$3,97

Unit Price

DISCONTINUE
PIN, PINION SHAFT

09202-06022-000 0920206022000

Not available

BOLT

07110-08165-000

07130-0816A-000

$4,97

Unit Price

HOUSING, FR DIFF GEAR

27450-19B10-000

27450-19B13-000

$662,97

Unit Price

27450-19B13
HOUSING, DIFFERENTIAL GEAR

27450-19B12-000 2745019B12000

Not available

UNION
UNION, BREATHER

09364-08003-000 0936408003000

$5,97

Unit Price

HOUSING, FR DRIVE BEVEL GR
HOUSING, DRIVE BEVEL GEAR

27441-19B00-000 2744119B00000

$106,97

Unit Price

WASHER THURST
WASHER

08211-25351-000 0821125351000

$4,97

Unit Price

SHIM (T:0.35)

27326-19B00-035 2732619B00035

Not available

SHIM (T:0.40)

27326-19B00-040 2732619B00040

Not available

SHIM (T:0.50)

27326-19B00-050 2732619B00050

Not available

SHIM (T:0.60)

27326-19B00-060 2732619B00060

Not available

SHIM SET, DRIVEN GEAR BEARING

27327-34200-000

27327-34810-000

$26,97

Unit Price

SHIM (T:0.40)

27327-34210-000 2732734210000

Not available

SHIM BEARING (T:0.5)

27327-34220-000 2732734220000

Not available

SHIM (T:0.60)

27327-34230-000 2732734230000

Not available

27445-19810
SHIM (T:0.15)

27445-19B00-015 2744519B00015

Not available

SHIM (T:0.30)

27445-19B00-030 2744519B00030

Not available

SHIM (T:0.35)

27445-19B00-035 2744519B00035

Not available

SHIM (T:0.40)

27445-19B00-040 2744519B00040

Not available

OIL STRAINER O RING
O RING (D:2.4, ID:62.6)

09280-63004-000 0928063004000

$15,97

Unit Price

O RING D:2.4ID:131.4
O RING (D:2.4, ID;131.4)

09280-00022-000 0928000022000

$20,97

Unit Price

CASE, FR DRIVEN GEAR BEARING
CASE, DRIVEN GEAR BEARING

27461-19B10-000 2746119B10000

$234,97

Unit Price

COVER, FR DRIVEN GEAR CASE

27471-19B00-000

27471-19B01-000

$84,97

Unit Price

BALL BEARING
BEARING, LH

08113-60050-000 0811360050000

$27,97

Unit Price

BALL BEARING
BEARING, RH

09262-40006-000 0926240006000

$84,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL

09283-34008-000 0928334008000

$30,97

Unit Price

GASKET, FR GEAR CASE COVER(NA)
GASKET, CASE COVER

27473-19B11-000 2747319B11000

$14,97

Unit Price

BOLT 10X110
BOLT (L:110)

09103-10148-000 0910310148000

$12,97

Unit Price

BOLT

01550-08257-000 0155008257000

$4,97

Unit Price

BOLT, 6X35
BOLT

01547-06357-000 0154706357000

$3,97

Unit Price

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

04211-09109-000 0421109109000

$2,97

Unit Price

FLANGE, FR DRIVE BEVEL GR

27180-19B00-000

27180-19B10-000

$161,97

Unit Price

WASHER
PLATE

09165-30002-000 0916530002000

$10,97

Unit Price

COLLAR, OUTPUT OIL SEAL
COLLAR

27591-19B01-000 2759119B01000

$49,97

Unit Price

PLATE, OUTPUT YOKE OIL SEAL
PLATE, OIL SEAL

27592-19B00-000 2759219B00000

$14,97

Unit Price

O RING

09280-28007-000 0928028007000

$4,97

Unit Price

NUT, 16X1.5X12
NUT

09159-16004-000 0915916004000

$6,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER (16X30X3)

09160-16026-000 0916016026000

$6,97

Unit Price

PLUG, OIL DRAIN

09247-14019-000

09247-14036-000

$10,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000 0916814002000

$3,97

Unit Price

PLUG
PLUG, FILLER

09247-16004-000 0924716004000

$12,97

Unit Price

O RING (D:2.4, ID:16.8)

09280-17002-000 0928017002000

$8,97

Unit Price

HOSE

09352-70103-00B

09352-70104-00B

$30,97

Unit Price

FUEL HOSE CLIP

09401-10403-000

09401-10402-000

$9,97

Unit Price

DOG, DIFF LOCK SLIDING
DOG

27371-19B01-000 2737119B01000

$95,97

Unit Price

NUT

08319-31107-000 0831931107000

$4,97

Unit Price

RING
CIRCLIP

09381-22007-000 0938122007000

$11,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FINAL GEAR of your Suzuki of KINGQUAD. Let us know if you have any questions.
