AIR FILTER

RECOIL STARTER FOR SUZUKI KINGQUAD 300 1993

MUFFLER

Item numbers

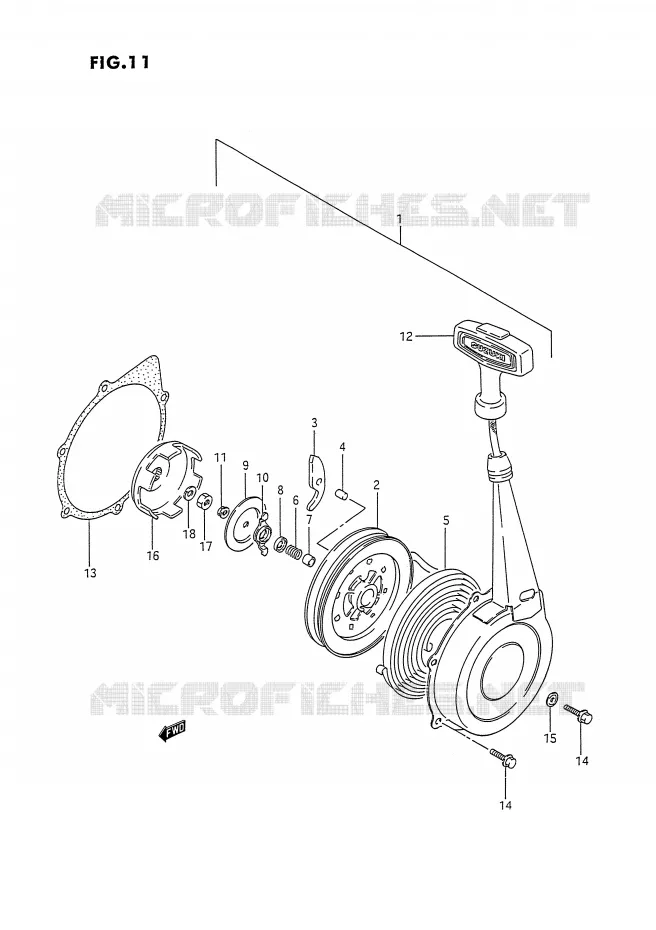

RECOIL STARTER Suzuki QUAD 300 KINGQUAD 1993 LT-F4WDXP(E2)

1

STARTER ASSY, RECOIL

18100-19B01-000

18100-19B03-000

$286,97

Unit Price

2

REEL, STARTER
REEL

18120-24400-000 1812024400000

$53,97

Unit Price

3

RATCHET

18131-24411-000 1813124411000

$10,97

Unit Price

4

18130-24400
..PIN, RATCHET

18344-24400-000 1834424400000

Not available

5

SPRING, RECOIL
SPRING, SPIRAL

18142-24400-000 1814224400000

$36,97

Unit Price

6

SPRING, FRICTION

18153-24400-000 1815324400000

Not available

7

DISCONTINUE
..SHAFT, SUB

18176-24400-000 1817624400000

Not available

8

COVER, SPRING

18275-24400-000 1827524400000

Not available

9

RATCHET SET

18151-24400-000

18130-24400-000

$20,97

Unit Price

10

GUIDE, RATCHET

18132-24400-000 1813224400000

$4,97

Unit Price

11

NUT 6MM

18334-24400-000

08316-10063-000

$3,97

Unit Price

12

GRIP ASSY, STARTER 6.0X1820
ROPE ASSY

18200-19B01-000 1820019B01000

$41,97

Unit Price

13

GASKET, RECOIL STARTER

18299-19B10-000

18299-19B11-000

$14,97

Unit Price

14

BOLT

01547-06123-000

01547-0612B-000

$4,97

Unit Price

14

BOLT, 6X12

01547-06125-000

01547-06127-000

$2,97

Unit Price

15

GASKET

09168-06023-000 0916806023000

Not available

16

CAP, STARTER
CUP, STARTER

18410-19B01-000 1841019B01000

$87,97

Unit Price

17

NUT

08310-00103-000

08310-0010B-000

$3,97

Unit Price

17

NUT

08310-12108-000

08310-00107-000

$3,97

Unit Price

18

WASHER, LOCK

08321-01103-000

08321-0110B-000

$3,97

Unit Price

18

WASHER

08321-21107-000

08321-01107-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RECOIL STARTER of your Suzuki of KINGQUAD. Let us know if you have any questions.
