TRANSMISSION (1) FOR SUZUKI KINGQUAD 300 1993

TRANSMISSION (2)

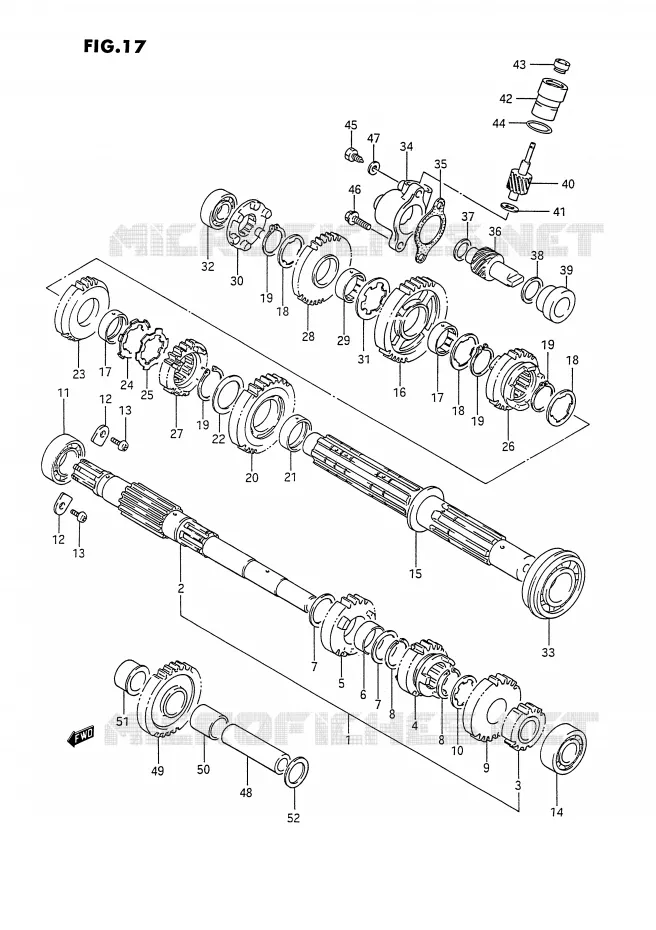

TRANSMISSION (1) Suzuki QUAD 300 KINGQUAD 1993 LT-F4WDXP(E2)
1
COUNTERSHAFT ASSY

24120-19B00-000   2412019B00000

2412019B00000
Not available
2
SHAFT, COUNTER

24121-19B01-000  

24121-19B10-000
 2412119B01000

Unit Price

3
GEAR, 2ND DRIVE (NT:15)

24221-18A00-000   2422118A00000

2422118A00000

Unit Price

4
GEAR, 3RD DRIVE

24231-18A01-000  

24231-18A02-000
 2423118A01000

Unit Price

5
GEAR, 4TH DRIVE

24241-18A00-000  

24241-18A01-000
 2424118A00000

Unit Price

6
BUSH
BUSH

09300-22008-000   0930022008000

0930022008000

Unit Price

7
WASHER

08211-22301-000  

09181-22167-000
 0821122301000

Unit Price

8
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

9
GEAR, 5TH DRIVE

24251-18A01-000  

24251-18A03-000
 2425118A01000

Unit Price

10
DISCONTINUE

09167-22013-000  

0916722013000
Not available
11
BEARING<br />BEARING, RH
BEARING
BEARING, RH

09262-22018-000   0926222018000

0926222018000

Unit Price

12
RETAINER

24741-20A10-000  

24741-21A00-000
 2474120A10000

Unit Price

13
SCREW
SCREW

02112-06127-000   0211206127000

0211206127000

Unit Price

14
BEARING(17X40X17.5)
BEARING, MIDDLE

09267-17002-000   0926717002000

0926717002000

Unit Price

15
SHAFT, DRIVE

24131-19B02-000  

24131-19B10-000
 2413119B02000

Unit Price

16
GEAR, 1ST DRIVEN

24311-18A01-000  

24311-18A02-000
 2431118A01000

Unit Price

17
BUSH, DRIVEN GEAR

24332-24500-000  

24332-24510-000
 2433224500000

Unit Price

18
WASHER
LOCK WASHER

09167-25016-000   0916725016000

0916725016000

Unit Price

19
3RD PINION CIRCLIP<br />CIRCLIP
3RD PINION CIRCLIP
CIRCLIP

09380-25003-000   0938025003000

0938025003000

Unit Price

20
GEAR, 2ND DRIVEN
GEAR, 2ND DRIVEN (NT:29)

24321-18A01-000   2432118A01000

2432118A01000

Unit Price

21
BUSH(25X29X8)
BUSH

09300-25020-000   0930025020000

0930025020000

Unit Price

22
WASHER THURST
WASHER

08211-25351-000   0821125351000

0821125351000

Unit Price

23
GEAR, 3RD DRIVEN(NT:25)

24331-19B00-000  

24331-19B01-000
 2433119B00000

Unit Price

24
LOCK WASHER
LOCK WASHER

09169-25001-000   0916925001000

0916925001000

Unit Price

25
LOCK WASHER
LOCK WASHER

09167-25013-000   0916725013000

0916725013000

Unit Price

26
GEAR, 4TH DRIVEN

24341-18A01-000  

24341-18A02-000
 2434118A01000

Unit Price

27
GEAR, 5TH DRIVEN

24351-18A01-000  

24351-18A02-000
 2435118A01000

Unit Price

28
DISCONTINUE
GEAR, REVERSE DRIVEN (NT:34)

24571-18A02-000   2457118A02000

2457118A02000
Not available
29
BUSH, REVERSE DRIVEN GEAR
BUSH

24333-18A00-000   2433318A00000

2433318A00000

Unit Price

30
DOG, REVERSE
DOG

24581-18A00-000   2458118A00000

2458118A00000

Unit Price

31
WASHER

09167-25017-000   0916725017000

0916725017000

Unit Price

32
BEARING(17X35X10)
BEARING, RH

09262-17026-000   0926217026000

0926217026000

Unit Price

33
BEARING(25X52X15)
BEARING, MIDDLE

09262-25085-000   0926225085000

0926225085000

Unit Price

34
HOUSING, ODOMETER GEAR

26441-19B01-000   2644119B01000

2644119B01000

Unit Price

35
GASKET, ODOMETER GEAR SLV

26451-19B10-000  

26451-19B11-000
 2645119B10000

Unit Price

36
GEAR, ODOMETER DRIVE
GEAR, ODOMETER DRIVE (NT:10)

26461-19B00-000   2646119B00000

2646119B00000

Unit Price

37
WASHER, THRUST
WASHER, RH

08211-15201-000   0821115201000

0821115201000

Unit Price

38
WASHER
WASHER, LH

08211-17241-000   0821117241000

0821117241000

Unit Price

39
SPACER, ODOMETER DRIVE GEAR
SPACER

26481-19B00-000   2648119B00000

2648119B00000

Unit Price

40
GEAR, ODOMETER DRIVEN
GEAR, ODOMETER DRIVEN (NT:14)

26471-19B00-000   2647119B00000

2647119B00000

Unit Price

41
WASHER

08211-08151-000   0821108151000

0821108151000

Unit Price

42
SLEEVE, ODOMETER DRIVEN GEAR
SLEEVE

26442-19B00-000   2644219B00000

2644219B00000

Unit Price

43
TACHO DRVN OIL SEAL<br />OIL SEAL
TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000   0928905002000

0928905002000

Unit Price

44
O RING (D:1.9,ID:16.6)
O RING (D:1.9, ID:16.6)

09280-17004-000   0928017004000

0928017004000

Unit Price

45
BOLT, 6X10

09135-06002-000  

09135-06501-000
 0913506002000

Unit Price

46
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

47
TACH GEAR WASHER<br />WASHER (6.2X11X1.2)
TACH GEAR WASHER
WASHER (6.2X11X1.2)

09168-06004-000   0916806004000

0916806004000

Unit Price

48
DISCONTINUE
SHAFT, REVERSE IDLE

24551-19B00-000   2455119B00000

2455119B00000
Not available
49
GEAR, REVERSE IDLE
GEAR, REVERSE IDLE (NT:29)

24561-19B00-000   2456119B00000

2456119B00000

Unit Price

50
BUSH

09300-17010-000   0930017010000

0930017010000
Not available
51
DISCONTINUE
SPACER

24562-19B00-000   2456219B00000

2456219B00000
Not available
52
WASHER

08211-17281-000  

09181-17195-000
 0821117281000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (1) of your Suzuki of KINGQUAD. Let us know if you have any questions.
