MUFFLER

OIL COOLER FOR SUZUKI KINGQUAD 300 1993

OIL PUMP - FUEL PUMP

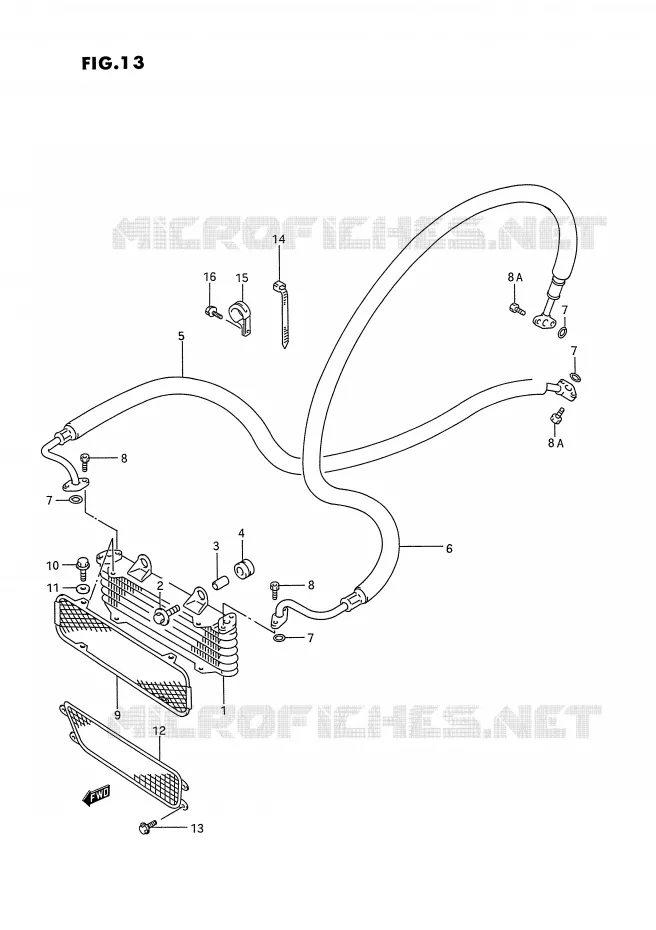

OIL COOLER Suzuki QUAD 300 KINGQUAD 1993 LT-F4WDXP(E2)

1

COOLER ASSY, OIL

16600-19B00-000 1660019B00000

$942,97

Unit Price

2

BOLT, 6X20, W/PL WASHE

09116-06143-000

09116-06115-000

$2,97

Unit Price

3

SPACER

09180-06030-000

09180-06310-000

$3,97

Unit Price

4

CUSHION

09320-10015-000 0932010015000

$3,97

Unit Price

5

16460-19B11
HOSE, OIL COOLER NO.1

16460-19B00-000 1646019B00000

Not available

6

HOSE, OIL COOLER NO.2

16470-19B00-000

16470-19B11-000

$312,97

Unit Price

7

O RING, CYLINDER
O RING (D:2.4, ID:12.3)

09280-12008-000 0928012008000

$5,97

Unit Price

8

BOLT

07110-06165-000

07130-0616B-000

$6,97

Unit Price

8A

BOLT

09106-06073-000 0910606073000

$3,97

Unit Price

9

BUMPER, OIL COOLER

16650-44B00-000 1665044B00000

$47,97

Unit Price

10

BOLT

01547-05103-000

01547-0510B-000

$4,97

Unit Price

11

WASHER, LOCK

08321-01053-000

08321-0105A-000

$2,97

Unit Price

12

DISCONTINUE
GUARD, OIL COOLER

16640-19B00-000 1664019B00000

Not available

13

BOLT

01517-06105-000

01550-0610B-000

$4,97

Unit Price

14

CLAMP, WIRING HARNESS

09407-18403-000

09407-18402-000

$3,97

Unit Price

14

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

15

CLAMP, WIRING HARNESS

09403-26401-000

09403-26402-000

$6,97

Unit Price

16

BOLT

01550-06103-000

01550-0610B-000

$4,97

Unit Price

16

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Suzuki of KINGQUAD. Let us know if you have any questions.
