Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

BACKREST (SIDE)(MODEL K2)

BACKREST (CENTER) FOR SUZUKI BURGMAN 400 2000

BACKREST (CENTER)(MODEL K1) REFER TO FIG.52B(J-14) FOR MODEL K2

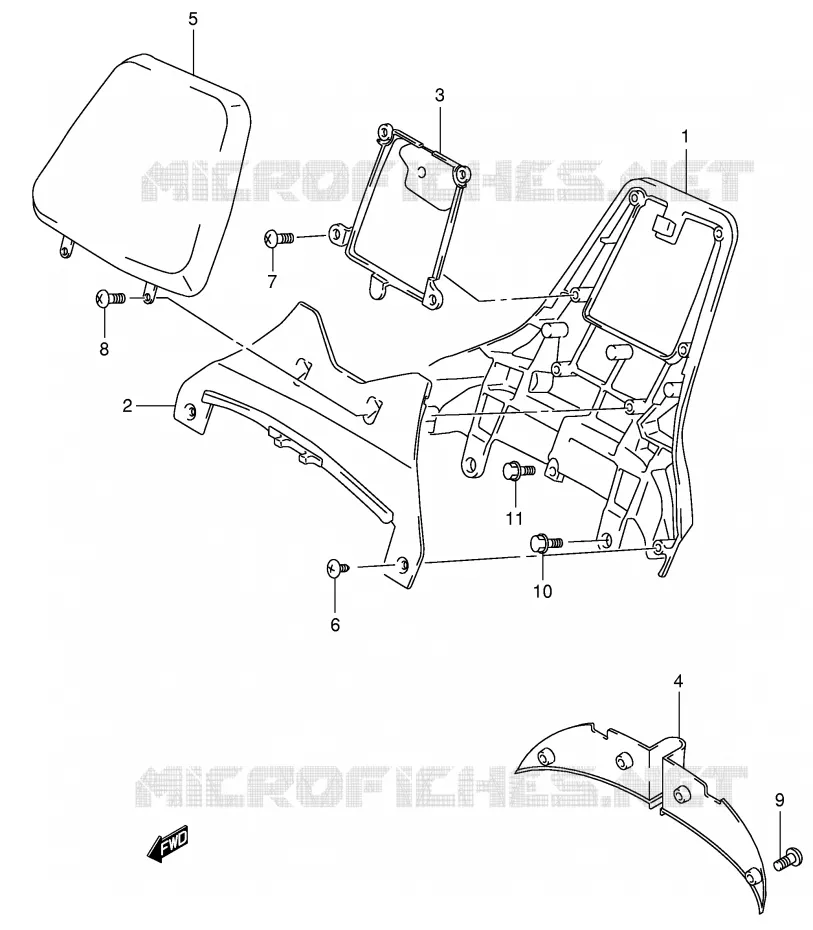

BACKREST (CENTER)(MODEL X/Y) Suzuki SCOOTER 400 BURGMAN 2000 AN400Y(E2)
1
HANDLE, RIDER CENTER (MAROON)

46211-14F50-22U   4621114F5022U

4621114F5022U
Not available
1
HANDLE, RIDER CENTER (SILVER)

46211-14F50-Y2D   4621114F50Y2D

4621114F50Y2D
Not available
1
HANDLE, RIDER CENTER (BLACK)

46211-14F50-Y7L   4621114F50Y7L

4621114F50Y7L
Not available
1
HANDLE, RIDER CENTER (GRAY)

46211-14F50-Y9E   4621114F50Y9E

4621114F50Y9E
Not available
1
HANDLE, RIDER CENTER (GREEN)

46211-14F50-Y9G   4621114F50Y9G

4621114F50Y9G
Not available
1
HANDLE, RIDER CENTER (BLACK)

46211-14F51-Y7L   4621114F51Y7L

4621114F51Y7L
Not available
1
HANDLE, RIDER CENTER (GOLD)

46211-14F51-YC7   4621114F51YC7

4621114F51YC7
Not available
1
HANDLE, RIDER CENTER (SILVER)

46211-14F51-YD8   4621114F51YD8

4621114F51YD8
Not available
1
HANDLE, RIDER CENTER (BLUE GRAY)

46211-14F51-YE1   4621114F51YE1

4621114F51YE1
Not available
1
HANDLE, RIDER CENTER (MAROON)

46211-14F51-YE2   4621114F51YE2

4621114F51YE2
Not available
2
COVER, HANDLE FRONT (MAROON)

46215-14F51-22U   4621514F5122U

4621514F5122U
Not available
2
COVER, HANDLE FRONT (SILVER)

46215-14F51-Y2D   4621514F51Y2D

4621514F51Y2D
Not available
2
COVER, HANDLE FRONT (BLACK)

46215-14F51-Y7L   4621514F51Y7L

4621514F51Y7L
Not available
2
COVER, HANDLE FRONT (GRAY)

46215-14F51-Y9E   4621514F51Y9E

4621514F51Y9E
Not available
2
COVER, HANDLE FRONT (GREEN)

46215-14F51-Y9G   4621514F51Y9G

4621514F51Y9G
Not available
2
COVER, HANDLE FRONT (BLACK)

46215-14F52-Y7L   4621514F52Y7L

4621514F52Y7L
Not available
2
COVER, HANDLE FRONT (GOLD)

46215-14F52-YC7   4621514F52YC7

4621514F52YC7
Not available
2
COVER, HANDLE FRONT (SILVER)

46215-14F52-YD8   4621514F52YD8

4621514F52YD8
Not available
2
COVER, HANDLE FRONT (BLUE GRAY)

46215-14F52-YE1   4621514F52YE1

4621514F52YE1
Not available
2
COVER, HANDLE FRONT (MAROON)

46215-14F52-YE2   4621514F52YE2

4621514F52YE2
Not available
3
COVER, HANDLE REAR (GRAY)

46216-14F50-Y0J   4621614F50Y0J

4621614F50Y0J
Not available
3
COVER, HANDLE REAR (GRAY)

46216-14F51-Y0J   4621614F51Y0J

4621614F51Y0J
Not available
4
COVER, HANDLE LOWER (GRAY)

46217-14F50-Y0J   4621714F50Y0J

4621714F50Y0J
Not available
5
BACK REST ASSY (BLACK)

46220-14F51-W37   4622014F51W37

4622014F51W37
Not available
6
SCREW<br />SCREW, FRONT (6X16)
SCREW
SCREW, FRONT (6X16)

09139-06083-000   0913906083000

0913906083000

Unit Price

6
SCREW(6X16)
SCREW, FRONT (6X16)

09139-06088-000   0913906088000

0913906088000

Unit Price

7
SCREW

02142-05123-000  

02142-0512A-000
 0214205123000

Unit Price

8
6X16CROSS SCREW<br />SCREW, BACK REST (6X16)
6X16CROSS SCREW
SCREW, BACK REST (6X16)

02142-06167-000   0214206167000

0214206167000

Unit Price

9
SCREW

03541-04103-000  

03541-0410A-000
 0354104103000

Unit Price

10
BOLT

01550-08253-000  

01550-0825A-000
 0155008253000

Unit Price

11
BOLT

01550-08303-000  

01550-0830B-000
 0155008303000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the BACKREST (CENTER)(MODEL X/Y) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
