FUEL PUMP

WATER PUMP (MODEL X / Y,MODEL Y P37 / K2 P37) FOR SUZUKI BURGMAN 400 2000

WATER PUMP (MODEL K1 / K2)

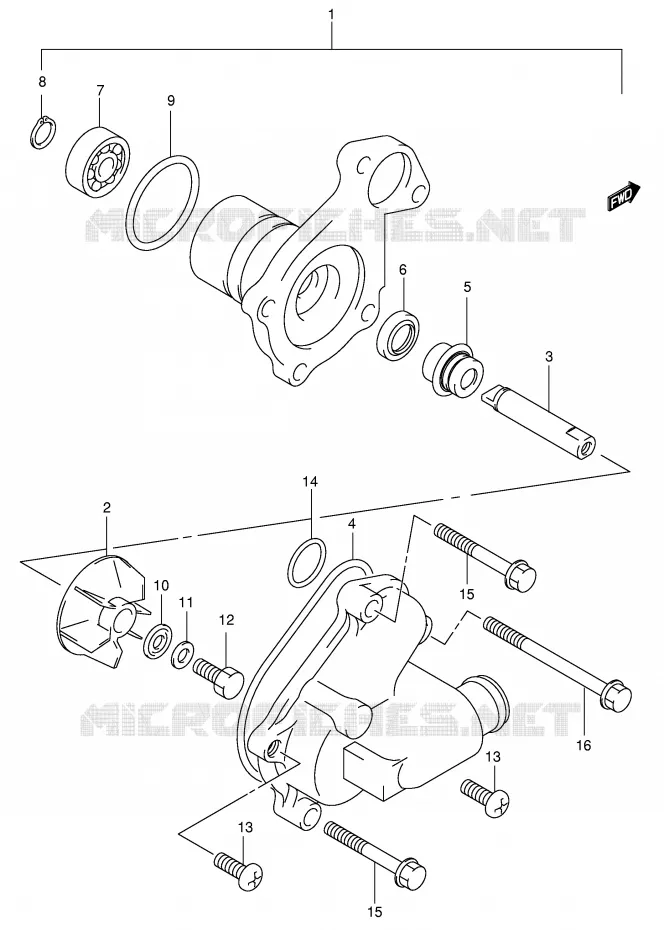

WATER PUMP (MODEL X/Y,MODEL Y P37/K2 P37) Suzuki SCOOTER 400 BURGMAN 2000 AN400Y(E2)
1
PUMP ASSY, WATER

17400-14F10-000   1740014F10000

1740014F10000
Not available
2
IMPELLER,WATER PUMP<br />INPELLER, WATER PUMP
IMPELLER, WATER PUMP
INPELLER, WATER PUMP

17491-12C00-000   1749112C00000

1749112C00000

Unit Price

3
SHAFT

17511-14F00-000   1751114F00000

1751114F00000
Not available
4
O RING

17418-14F00-000  

17418-14F01-000
 1741814F00000

Unit Price

5
SEAL, MECHANICAL

17470-46A01-000  

17470-02F11-000
 1747046A01000

Unit Price

6
OIL SEAL, WATER PUMP<br />OIL SEAL (10X21X5)
OIL SEAL, WATER PUMP
OIL SEAL (10X21X5)

09283-10004-000   0928310004000

0928310004000

Unit Price

7
BEARING (10X26X8)
BEARING (10X26X8)

09262-10014-000   0926210014000

0926210014000

Unit Price

8
08332-1108A
E RING

08332-11086-000  

0833211086000
Not available
9
O RING,WATER PUMP HOLDER<br />O RING
O RING, WATER PUMP HOLDER
O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

10
WASHER<br />GASKET (6X15X2.2)
WASHER
GASKET (6X15X2.2)

09168-06025-000   0916806025000

0916806025000

Unit Price

11
ENG OIL CASE WA **S1<br />LOCK WASHER
ENG OIL CASE WA **S1
LOCK WASHER

09164-06006-000   0916406006000

0916406006000

Unit Price

12
BOLT,WATER PUMP<br />BOLT (6X13)
BOLT, WATER PUMP
BOLT (6X13)

09100-06099-000   0910006099000

0910006099000

Unit Price

13
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

14
OIL PLUG O RING<br />O RING (D:1.4,ID:21.8)
OIL PLUG O RING
O RING (D:1.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

15
BOLT

01547-06353-000  

01547-0635B-000
 0154706353000

Unit Price

16
BOLT

01547-06603-000  

01547-0660B-000
 0154706603000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP (MODEL X/Y,MODEL Y P37/K2 P37) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
