Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

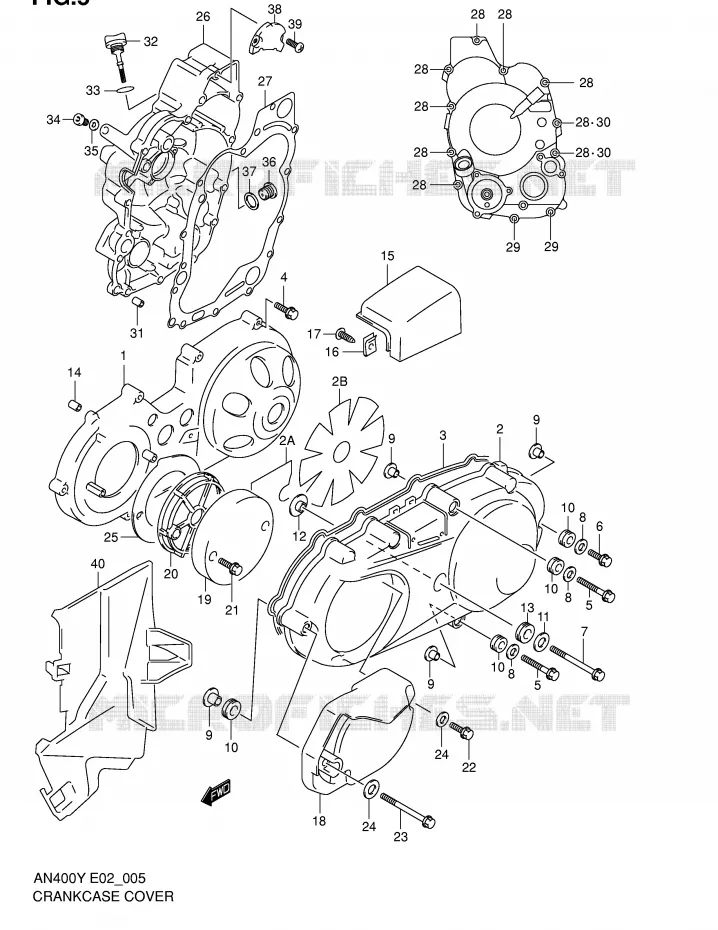

CRANKCASE COVER FOR SUZUKI BURGMAN 400 2000

CRANKSHAFT

COVER, CLUTCH INNER

11341-15F00-000 1134115F00000

$365,97

Unit Price

CUSHION, CLUTCH OUTER COV NO.1
CUSHION, CLUTCH OUTER COVER NO.1

11486-15F01-000 1148615F01000

$21,97

Unit Price

CUSHION, CLUTCH OUTER COV NO.2
CUSHION, CLUTCH OUTER COVER NO.2

11487-15F00-000 1148715F00000

$27,97

Unit Price

DISCONTINUE
COVER, CLUTCH OUTER

11370-15F01-000 1137015F01000

Not available

GASKET, CLUTCH COV OUTER
GASKET, CLUTCH COVER OUTER

11484-14F00-000 1148414F00000

$47,97

Unit Price

BOLT

01547-06303-000

01547-0630B-000

$4,97

Unit Price

BOLT, 6X45
BOLT

01547-06457-000 0154706457000

$3,97

Unit Price

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

BOLT, 6X75
BOLT

01547-06757-000 0154706757000

$4,97

Unit Price

MUD GUARD WASHER
WASHER (6.5X18X1)

09160-06028-000 0916006028000

$2,97

Unit Price

WASHER

09169-06062-000 0916906062000

$4,97

Unit Price

CUSHION

09320-09016-000 0932009016000

$3,97

Unit Price

WASHER (6.5X24X1.6)

09160-06134-000 0916006134000

$3,97

Unit Price

SPACER (8.6X12X9.3)

09180-08181-000 0918008181000

$9,97

Unit Price

CUSHION(11.8X25X7.5)

09320-12011-000

09320-12090-000

$2,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

DUCT, CLUTCH OUTER COVER

11372-15F00-000 1137215F00000

$168,97

Unit Price

NUT, STEERING
NUT

09148-05038-000 0914805038000

$2,97

Unit Price

SCREW

03242-05103-000

03241-0510A-000

$2,97

Unit Price

DUCT, BELT COOLING

11381-15F00-000 1138115F00000

Not available

DUCT, BELT COOLING

11381-15F10-000 1138115F10000

Not available

FILTER, BELT COOLING

11388-15F10-000 1138815F10000

$36,97

Unit Price

FILTER, BELT COOLING

11388-15F00-000 1138815F00000

Not available

HOLDER, BELT COOLING FILTER

11389-15F00-000 1138915F00000

$26,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

BOLT

01547-06203-000

01547-0620B-000

$4,97

Unit Price

BOLT

01547-06653-000

01547-0665B-000

$5,97

Unit Price

WASHER

08322-01063-000

08322-0106A-000

$2,97

Unit Price

CUSHION, BELT COOLING DUCT

11485-14F00-000 1148514F00000

$17,97

Unit Price

DISCONTINUE
COVER, MAGNETO

11351-14F01-000 1135114F01000

Not available

GASKET, MAGNETO COVER

11483-14F00-000 1148314F00000

$28,97

Unit Price

BOLT, 6X30
BOLT

01547-06307-000 0154706307000

$3,97

Unit Price

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

04211-09149-000 0421109149000

$2,97

Unit Price

GAUGE, OIL LEVEL

11971-14F00-000 1197114F00000

$13,97

Unit Price

O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

PLUG, OIL GALL
PLUG

09248-10010-000 0924810010000

$6,97

Unit Price

CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000 0916810002000

$2,97

Unit Price

PLUG, OIL
PLUG (16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

SEPARATOR

11352-15F00-000 1135215F00000

Not available

DISCONTINUE
SEPARATOR

11352-15F10-000 1135215F10000

Not available

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

BOLT, 6X12

09125-06086-000

09125-06110-000

$3,97

Unit Price

COVER, FRAME INNER

11411-15F00-000 1141115F00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
