CYLINDER

CRANKCASE FOR SUZUKI BURGMAN 400 2000

CRANKCASE COVER

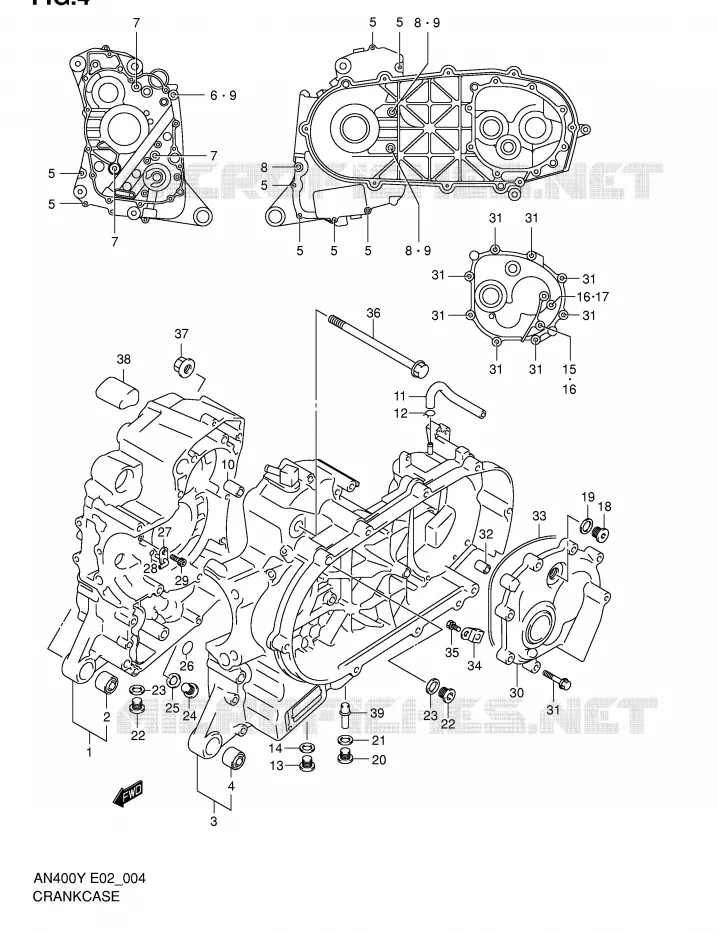

CRANKCASE Suzuki SCOOTER 400 BURGMAN 2000 AN400Y(E2)
1
CRANKCASE SET, RH

11310-15830-000   1131015830000

1131015830000
Not available
2
BUSHING (10X23X30)

09319-10043-000   0931910043000

0931910043000

Unit Price

3
CRANKCASE SET, LH

11320-15830-000   1132015830000

1132015830000
Not available
3
CRANKCASE SET, LH

11320-15831-000   1132015831000

1132015831000
Not available
4
BUSHING (10X23X30)

09319-10043-000   0931910043000

0931910043000

Unit Price

5
BOLT

01547-06603-000  

01547-0660B-000
 0154706603000

Unit Price

5
BOLT

07130-08653-000  

07130-0865B-000
 0713008653000

Unit Price

6
BOLT

07120-08903-000  

07120-0890B-000
 0712008903000

Unit Price

7
BOLT

07120-08603-000  

07120-0860B-000
 0712008603000

Unit Price

8
BOLT

07120-08703-000  

07120-0870A-000
 0712008703000

Unit Price

9
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

10
PIN, CRANKCASE
PIN, CRANKCASE

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

11
DISCONTINUE
HOSE, TRANSMISSION BREATHER

11329-14F00-000   1132914F00000

1132914F00000
Not available
12
CLIP, FUELHOSE<br />CLIP
CLIP, FUELHOSE
CLIP

09401-11403-000   0940111403000

0940111403000

Unit Price

13
PLUG<br />PLUG, DRAIN
PLUG
PLUG, DRAIN

09247-14026-000   0924714026000

0924714026000

Unit Price

14
GASKET (13.8X18.8X0.4)
GASKET (13.8X18.8X0.4)

09168-14002-000   0916814002000

0916814002000

Unit Price

15
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

16
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

17
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

18
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

19
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

20
09248-14011<br />PLUG, OIL RETURN
09248-14011
PLUG, OIL RETURN

09248-14005-000  

0924814005000
Not available
21
GASKET (13.8X18.8X0.4)
GASKET (13.8X18.8X0.4)

09168-14002-000   0916814002000

0916814002000

Unit Price

22
PLUG<br />PLUG (L:12)
PLUG
PLUG (L:12)

09248-12004-000   0924812004000

0924812004000

Unit Price

23
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
24
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

25
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

26
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

27
JET, PISTON COOLING

11390-14F00-000   1139014F00000

1139014F00000

Unit Price

28
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

29
BOLT(6X12)

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price

30
COVER, GEAR BOX

11431-15F00-000   1143115F00000

1143115F00000
Not available
30
DISCONTINUE
COVER, GEAR BOX

11431-15F10-000   1143115F10000

1143115F10000
Not available
31
BOLT

01550-08353-000  

01550-0835B-000
 0155008353000

Unit Price

32
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

33
O RING (D:2.4, ID:172)

09280-00035-000   0928000035000

0928000035000

Unit Price

34
MAGNETO, GEAR BOX

11393-20E00-000   1139320E00000

1139320E00000

Unit Price

35
BOLT

01570-06123-000  

01570-0612A-000
 0157006123000

Unit Price

36
BOLT (12X295)

09103-12053-000   0910312053000

0910312053000

Unit Price

37
NUT

08319-31123-000  

08319-3112B-000
 0831931123000

Unit Price

38
DISCONTINUE
SEPARATOR, OIL NO.2

11186-14F01-000   1118614F01000

1118614F01000
Not available
39
DISCONTINUE
JET, BREATHER OIL

11323-15F00-000   1132315F00000

1132315F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 400 BURGMAN 2000
